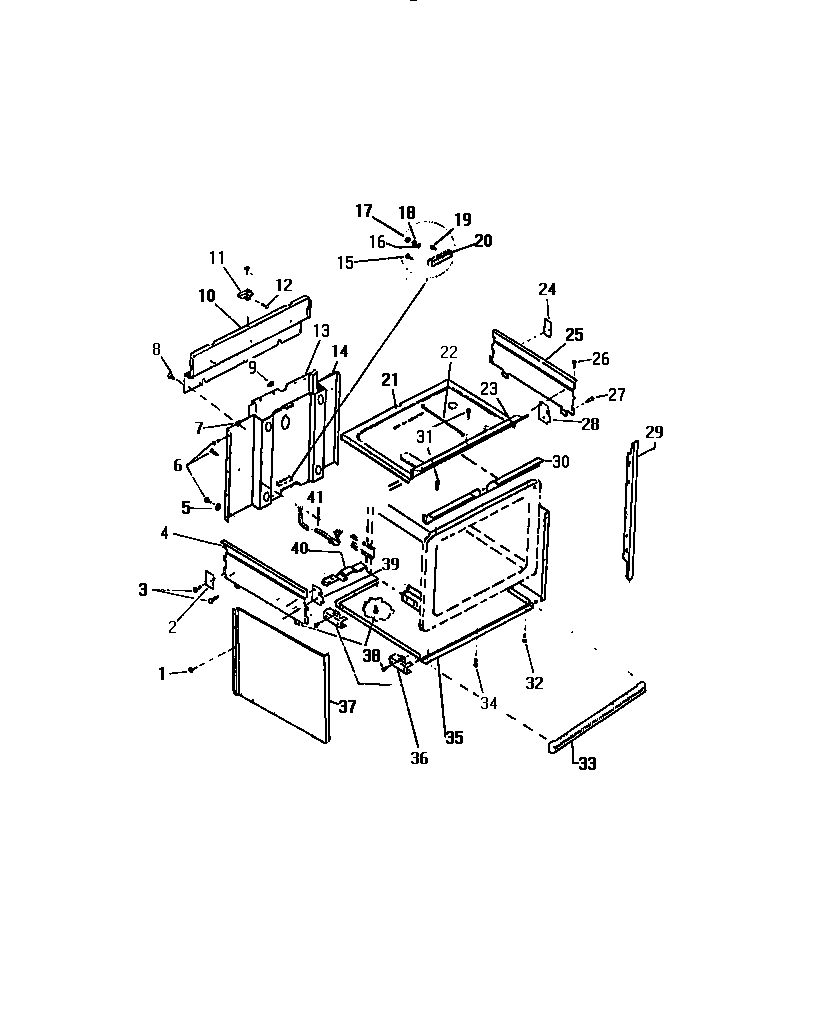

KD220GDH1 05 – BODY, SIDE PANELS

KD220GDH1 05 – BODY, SIDE PANELS

Written by

in

KD220GDH1 05 – BODY, SIDE PANELS

Products

Position	Product
5	WCI Q410505
7	WCI K1164411
9	WCI K1164553
10	WCI K5113701
11	WCI K5122501
12	WCI K1164550
13	COVER, WIRE
14	WCI K5277902
15	08002868 Frigidaire 0 Screw Assembly
16	WASHER (6)
17	WCI Q401002
18	WCI Q500411
20	TERMINAL BLOCK
21	WCI K5113301
22	ROD
23	WCI K5113502
24	WCI K1324691
25	WCI K5151702
26	131243700 Frigidaire Screw
27	SCREW
29	WCI K1314447
30	WCI K1322042
33	WCI K5005901
34	SCREW
35	WCI K1325634
36A	WCI K1325641
36	WCI K1325642
37	WCI K1324080
39	WCI K5308301
40	WCI K5300901
41	WCI NOTE
