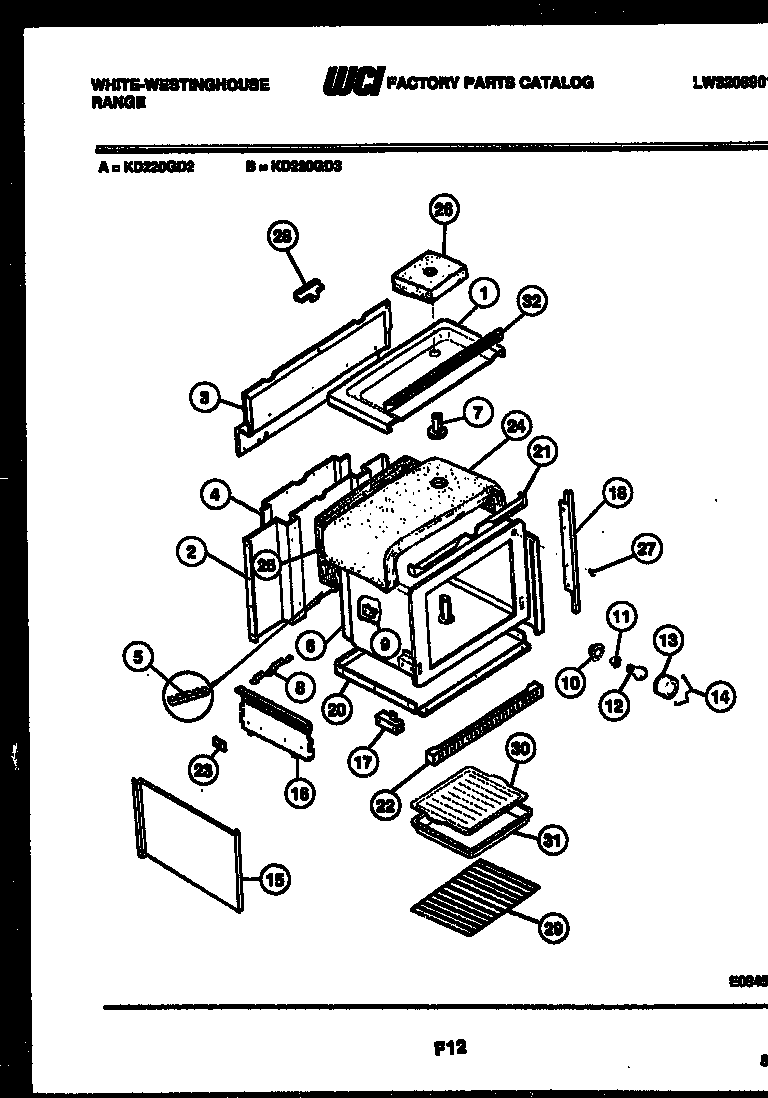

KD220GDW2 05 – BODY PARTS

Products

Position	Product
1	WCI 3051553
2	LABEL, IM (NON-ILLUSTRATED)
3	WCI 08008689
4	PANEL – WIRE COVER
5	5304409888 Frigidaire Oven Terminal Block with Hardware
7	WCI 3051520
8	WCI 3203574
9	BRACKET-THERMO BULB (2)
10	HOUSING – LIGHT
11	316116400 Frigidaire Oven Light Socket
12	316538904 Frigidaire Oven Lamp Light
13	5304524341 Frigidaire Lens
14	WCI 08011087
15	SHIELD-INSUL. (2)
16	PANEL-UPPER SIDE (2)
17	WCI 3051527
17A	WCI 3051528
18	TRIM-FRONT (2)
20	RETAINER-INSUL. BTTM.
21	WCI 08008693
22	WCI 08012249
23	PLATE-FILLER
24	INSULATION – OVEN WRAP
25	INSULATION – OVEN BACK
26	INSUL.-VENT TUBE
27	SWITCH-DOOR
28	BRACKT-HNG SUPT
29	316067902 Frigidaire Oven Rack
30	WCI 3051562
31	WCI 3200723
32	WCI K5113502
