KD2661 03 – BASE & PEDESTAL, LITERATURE

KD2661 03 – BASE & PEDESTAL, LITERATURE

Written by

in

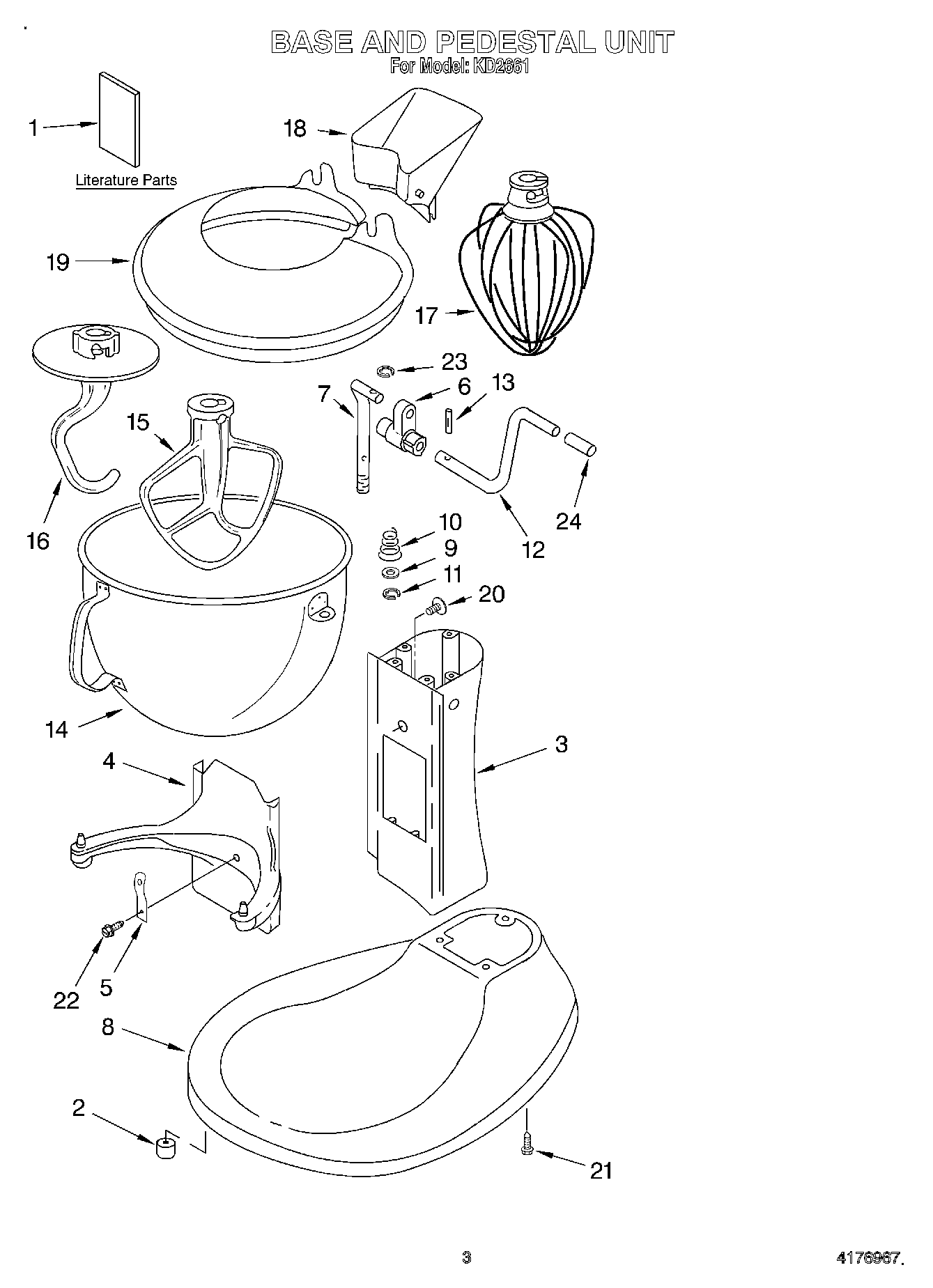

KD2661 03 – BASE & PEDESTAL, LITERATURE

Products

PositionProduct
1Literature Parts (Use And Care Guide)
1Literature Parts (Repair Parts List)
28211628 Whirlpool Foot Assembly
3Column (Imperial Grey)
39705384 Whirlpool Column
3WPL 9705321
3WPL 9705323
39705320 Whirlpool Column
3WPL 9705322
3COLUMN-Imperial Black
3WPL 9705325
39703673 Whirlpool Column
3WPL 9705679
39703349 Whirlpool Column
39705324 Whirlpool Column Assembly
4WPL 9705358
4WPL 9705361
4WPL 9705682
4BOWL SUPPORT-Cobalt blue
49705360 Whirlpool Support Assembly
49705356 Whirlpool Support
4WPL 9705359
4WPL 9705357
4BOWL SUPPORT-Imperial Black
49703397 Whirlpool Support
49703674 Whirlpool Support
49703519 Whirlpool Support
5WPW10504114 Whirlpool Clip
6Arm, Bowl Lift
7Rod, Bowl Lift
8WPL 9705345
8WPL 9705349
8Base And Foot Assembly (Imperial Black)
8WPL 9705347
8WPL 9705346
89705348 Whirlpool Base
8Base And Foot Assembly (Imperial Grey)
8Base And Foot Assembly (C
89705344 Whirlpool Base
8WPL 9705676
89703690 Whirlpool Base
89703346 Whirlpool Base
9Washer
104159622 Whirlpool PP Spring
11Clip
12W11376371 Whirlpool Handle Assembly
13WP9703442 Whirlpool Roll Pin
14WPW10245251 Whirlpool Mixer Bowl
15WPW10672616 Whirlpool Mixer Beater
16WPW10674620 Whirlpool Dough Hook
17WP9703491 Whirlpool Wire Whip
19WPW10617049 Whirlpool Pour Shelf
20Cam, Adjusting
21W10913677 Whirlpool Screw
22W10861883 Whirlpool Screw
23WP9703307 Whirlpool Ring-C Assembly
24W11501449 Whirlpool Handle Assembly
