KD723DTX2 1

Products

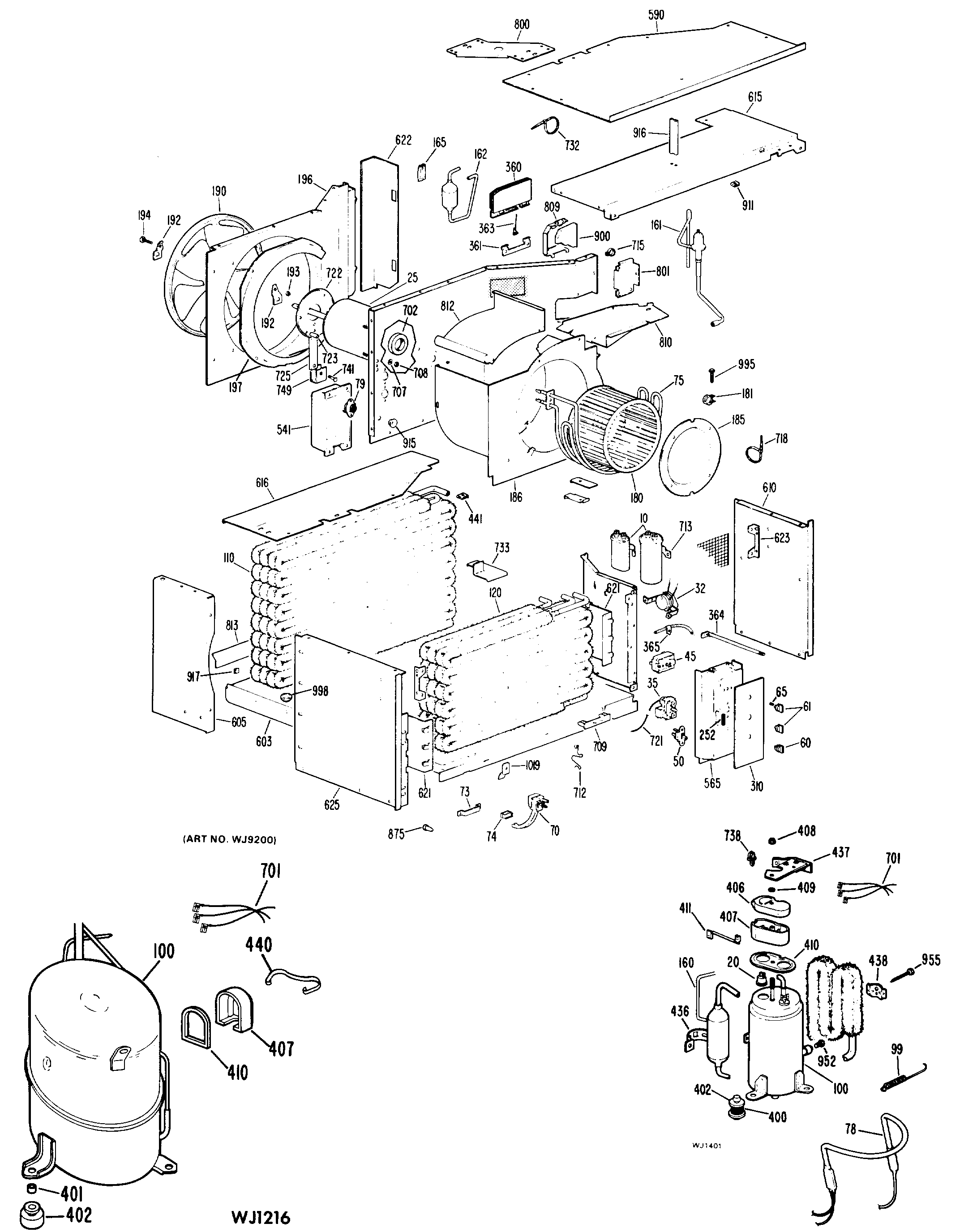

Position	Product
10	GEN WJ20X0585
10	GEN WJ20X0578
25	GEN WJ94X0512
32	GEN WJ95X0019
35	GEN WJ28X0229
45	GEN WJ26X0227
50	GEN WJ26X0167
60	GEN WJ12X0128
61	GEN WJ12X0129
65	KNOB SPRING
70	GEN WJ35X0099
73	CLAMP POWER CORD
74	GEN WJ01X0361
100	GEN WJ98X0729
110	UNKNOWN
120	GEN WJ87X0245
160	CAPILLARY .054 CUT TO 16
160	CAPILLARY.045 ID X 18.5"
160	CAPILLARY .042 CUT TO 15
162	UNKNOWN
165	GEN WJ56X0071
165	GEN WJ56X0063
180	GEN WJ74X0096
181	WH1X2036 GE UNIX Clamp
186	GEN WJ76X0218
190	GEN WJ73X0147
192	GEN WJ03X0215
193	FAN NUT
194	FAN SCREW
196	GEN WJ76X0236
197	GEN WJ70X0126
310	GEN WJ07X0717
360	GEN WJ70X0166
360	GEN WJ70X0283
361	DAMPER DOOR HINGE CLAMP
363	GEN WJ02X0397
364	GEN WJ14X0097
365	GEN WJ14X0095
401	GEN WJ01X0519
407	UNKNOWN
410	UNKNOWN
440	UNKNOWN
565	GEN WJ79X0456
590	COVER ASM
603	GEN WJ89X0080
610	GEN WJ82X0143
615	GEN WJ79X0349
616	GEN WJ79X0396
621	GEN WJ81X0071
622	GEN WJ82X0150
625	GEN WJ82X0141
701	GEN WJ36X0019
702	GEN WJ43X0240
702	GEN WJ43X0351
707	GEN WJ01X0655
708	GEN WJ01X0445
709	SINK HEAT
713	GEN WJ03X0313
713	GEN WJ03X0230
715	GEN WJ02X0410
721	SLEEVE CAPILLARY THERM
722	GEN WJ66X0197
723	GEN WJ01X0518
723	GEN WJ01X0417
725	GEN WJ65X0323
732	WIRE STRAP
733	GEN WJ66X0379
741	GEN WZ06X0128
800	GEN WJ65X0321
801	PLATE
809	TUBE SEAL CLAMP
810	COVER EVAPORATOR
812	GEN WJ76X0216
813	GEN WJ70X0152
900	GEN WJ60X0019
915	DRAIN PLUG
916	SPACER
917	GEN WJ02X0263
952	SCREW 10-16 X 5/8" HEX
998	PLUG 30FR HOLD DOWN BOLT
1019	CLIP CHASSIS TO CABINET
