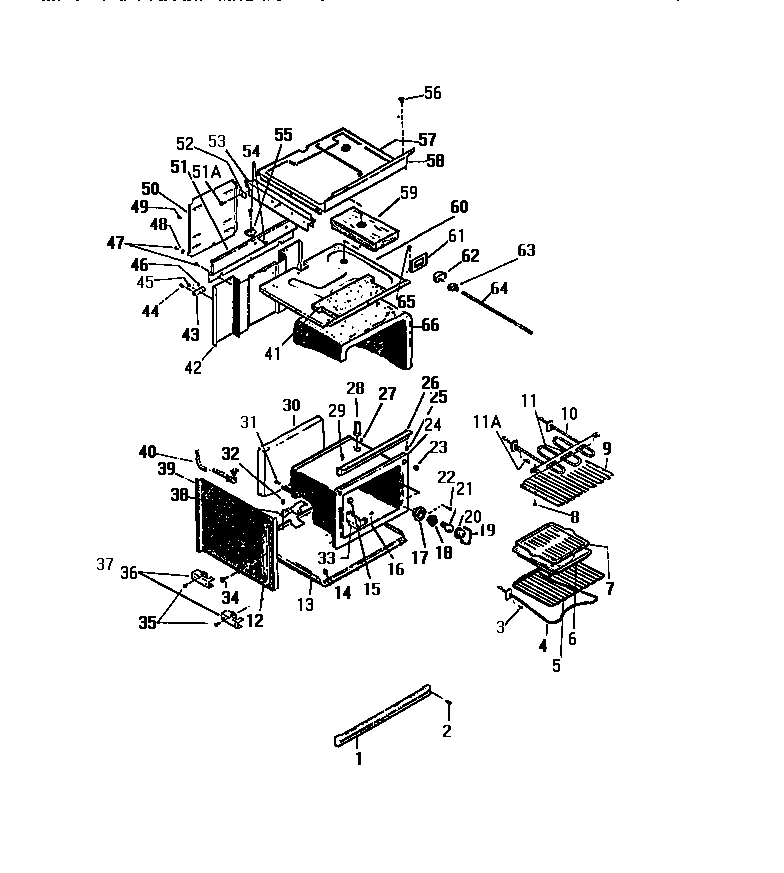

KD860GDK1 05 – OVEN CAVITY

Products

Position	Product
1	WCI K5005901
4	5303051519 Frigidaire Oven 2600W Bake Element
5	RACK (2)
6	WCI K1317973
7	WCI K1317972
9	WCI K5133501
10	5303051516 Frigidaire Broil Element
11	HANGER
12	WCI K1314447
13	WCI K1325634
14	WCI KGM445113
15	WCI KGM142017
17	CUP, OVEN LT
18	316116400 Frigidaire Oven Light Socket
19	RETAINING WIRE
20	5304524341 Frigidaire Lens
21	WCI Q63749
23	PLUG-BUTTON 3/4``
24	WCI K1325537
26	WCI K1323503
27	SCREW
28	WCI K5055102
30	INSULATION-OVEN BACK
31	08002868 Frigidaire 0 Screw Assembly
33	BRACKET THERM. BULB
36	WCI K1325642
37	WCI K1325641
38	WCI K5300901
39	WCI K1324080
40	WIRING HARNESSES ARE NOT AVAILABLE FOR THIS MODEL
41	WCI K1325719
42	WCI K5277902
43	TERMINAL BLOCK
44	SCREW
45	WCI Q401002
46	WASHER (6)
48	WCI Q410505
50	COVER, WIRE
51	WCI K5113701
52	WCI K1324691
53	WCI K5151702
54	WCI K1164550
55	WCI K5122501
57	WCI K5113301
58	WCI K5113502
59	WCI K1314863
60	WCI K1324096
61	WCI K1311371
62	SWITCH-DOOR
63	WCI K1322682
64	WCI K1322683
66	WCI K1311331
