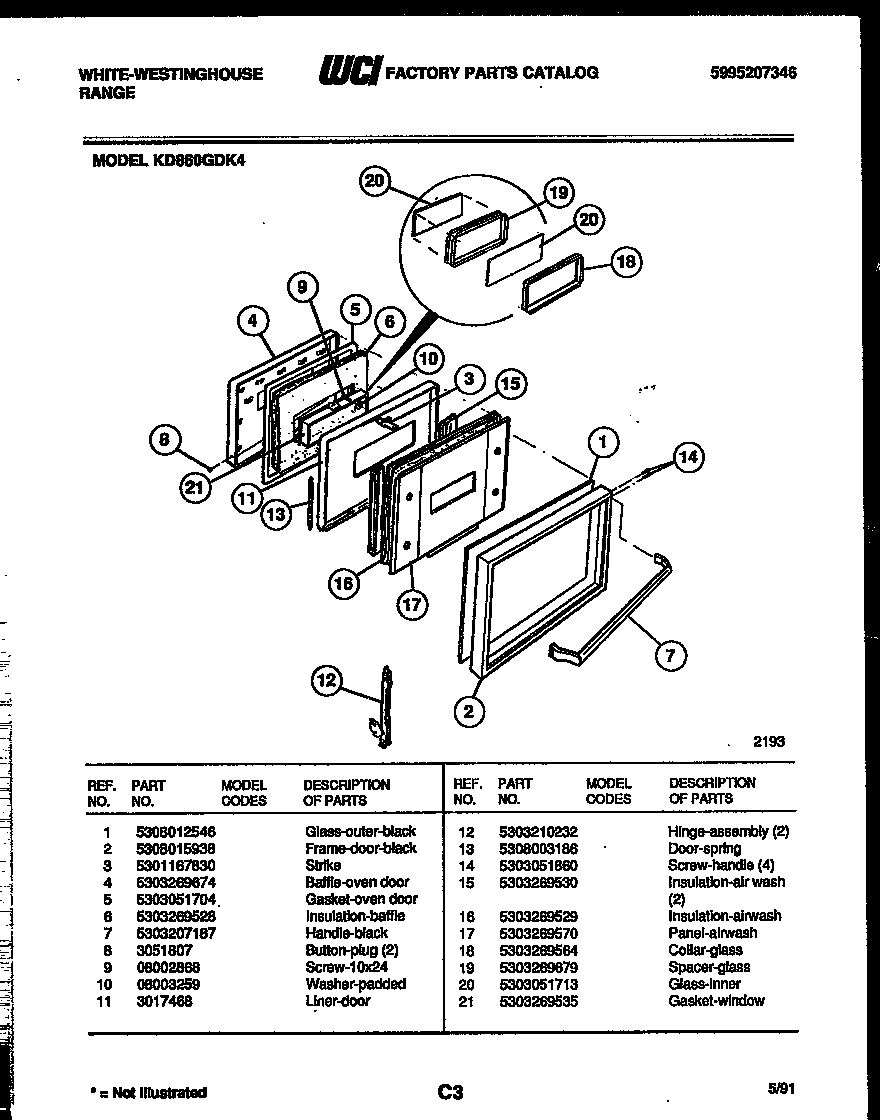

KD860GDK4 05 – DOOR PARTS

KD860GDK4 05 – DOOR PARTS

Written by

in

KD860GDK4 05 – DOOR PARTS

Products

PositionProduct
1GLASS, OUTER, BLACK
2WCI 5308015938
3WCI 5301167830
4WCI 5303269674
5SEAL, DOOR
6WCI 5303269528
7WCI 5303207187
8BUTTON PLUG
908002868 Frigidaire 0 Screw Assembly
10WASHER-PADDED
11LINER, DOOR
12HINGE-ASSEMBLY (2)
13WCI 5308003186
14WCI 5303051860
15WCI 5303269530
16INSULATION-AIRWASH
17WCI 5303269570
18WCI 5303269564
19WCI 5303269679
20WCI 5303051713
21GASKET-GLASS
