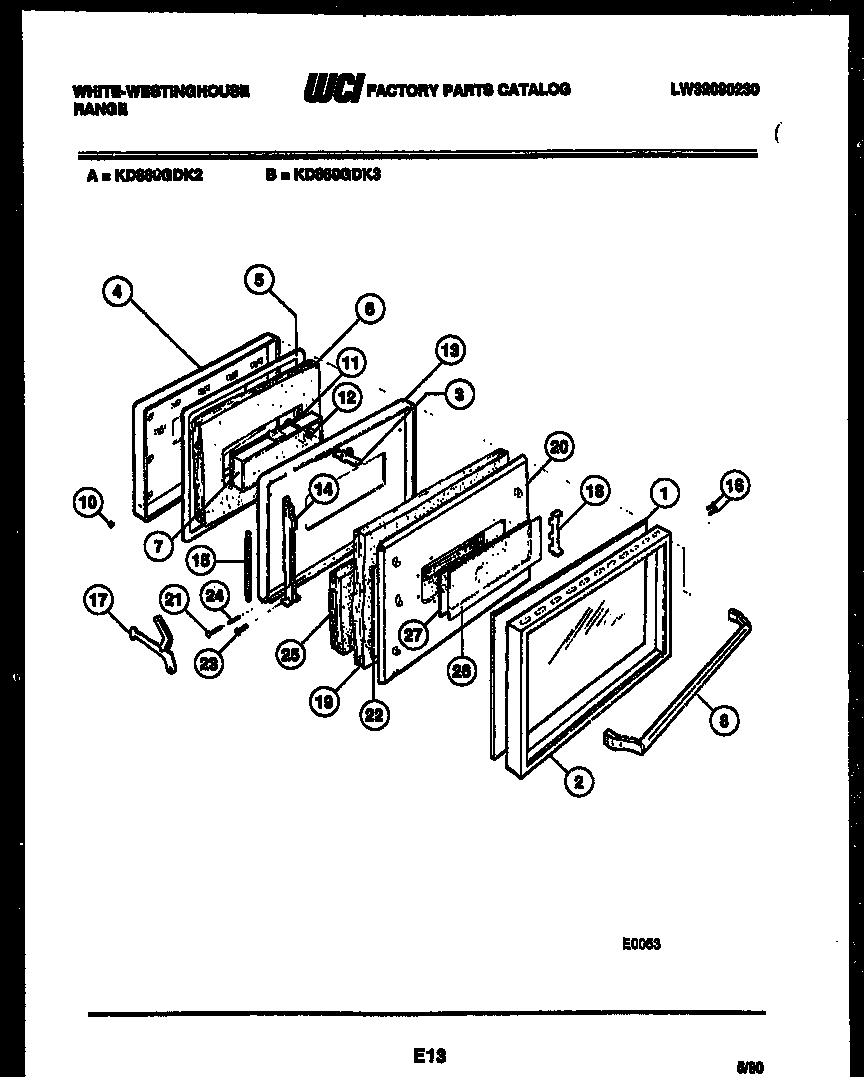

KD860GDKD2 04 – DOOR PARTS

Products

Position	Product
1	GLASS, OUTER, BLACK
2	WCI 5308015938
3	WCI K1167830
4	LINER-SHIELD
5	SEAL, DOOR
6	WCI 3008673
7	WCI 5303051705
8	WCI 5303051716
10	BUTTON PLUG
11	SCREW 10 X 24 (2)
12	WASHER-PADDED (3) (NON-ILLUSTRATED)
13	LINER, DOOR
14	CHANNEL (2)
15	WCI 5308003186
16	WCI 5303051860
17	DOOR HINGE ARM
18	RETAINER, GLASS (2)
19	WCI K1322652
20	WCI 3051712
21	WCI 5303051567
22	FOIL - ALUMINUM J
23	AXLE - HINGE (2)
24	CHANNEL, LH
25	WCI 3008677
26	WCI 5303051713
27	WCI 3051706
