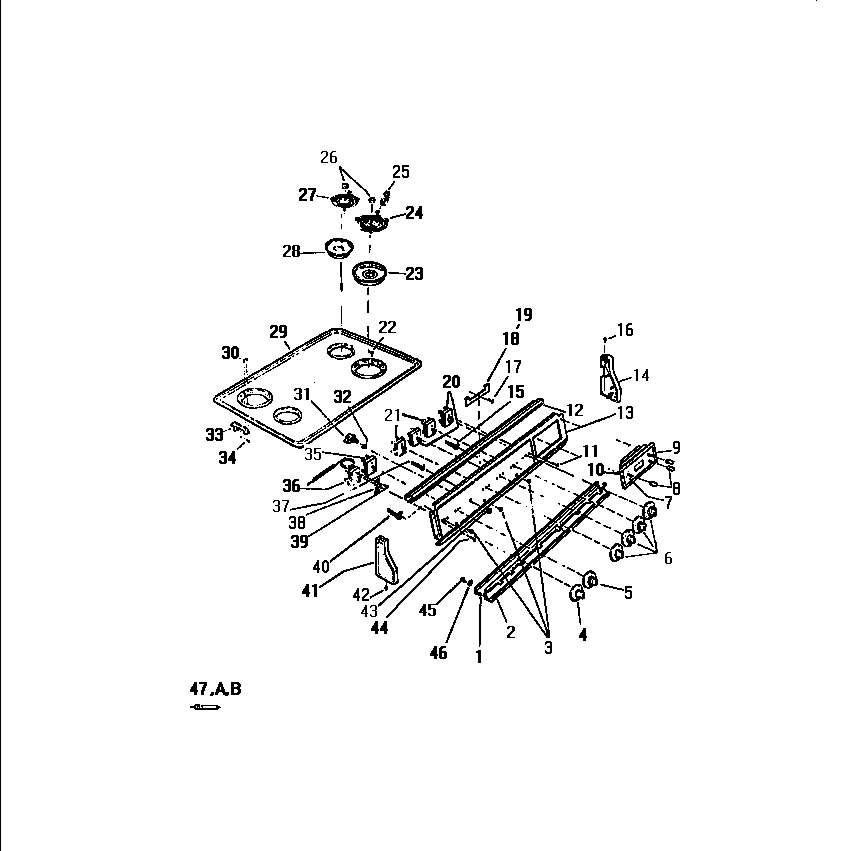

KD860GDW1 02 – BACKGUARD

Products

Position	Product
1	WCI K1324928
2	WCI K1319752
3	LENS
4	WCI K5088102
5	WCI K5088106
6	WCI K5088101
7	WCI K1167584
8	KNOB, TIMER
9	WCI K5036801
10	BEZEL
11	SCREW
12	WCI K1316506
13	WCI K5089701
14	WCI K5156601
15	WCI K5005801
17	WCI K1164517
18	WCI K1316744
19	WCI K1317218
21	5303935086 Frigidaire Oven Top Burner Switch Kit
23	316048413 Frigidaire Oven Range Chrome 8" Drip Bow
24	316442301 Frigidaire Oven 8 Coil Element 2600W
25	5303935058 Frigidaire Oven Burner Receptacle Kit
26	WCI Q204337
27	318372211 Frigidaire Oven 6" Electric Range Burner Kit
28	316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
29	WCI K1317542
30	5308014215 Frigidaire Oven Screw
31	WCI K5051801
32	NUT – HEX – LAMP SW. (2)
33	WCI K1317482
34	WCI K1164550
35	SWITCH-OVEN SELECT
36	WCI K1324563
37	WCI K5046102
38	WCI K5267104
40	WCI K5043102
41	WCI K5156602
43	WCI K5051701
44	SCREW – THERMO BRACKET 6-32 X 3/16 (2)
45	WCI K1164566
46	WCI KGM9423534
47	WCI K5044001
47A	WCI K5044101
47B	WCI K5044102
