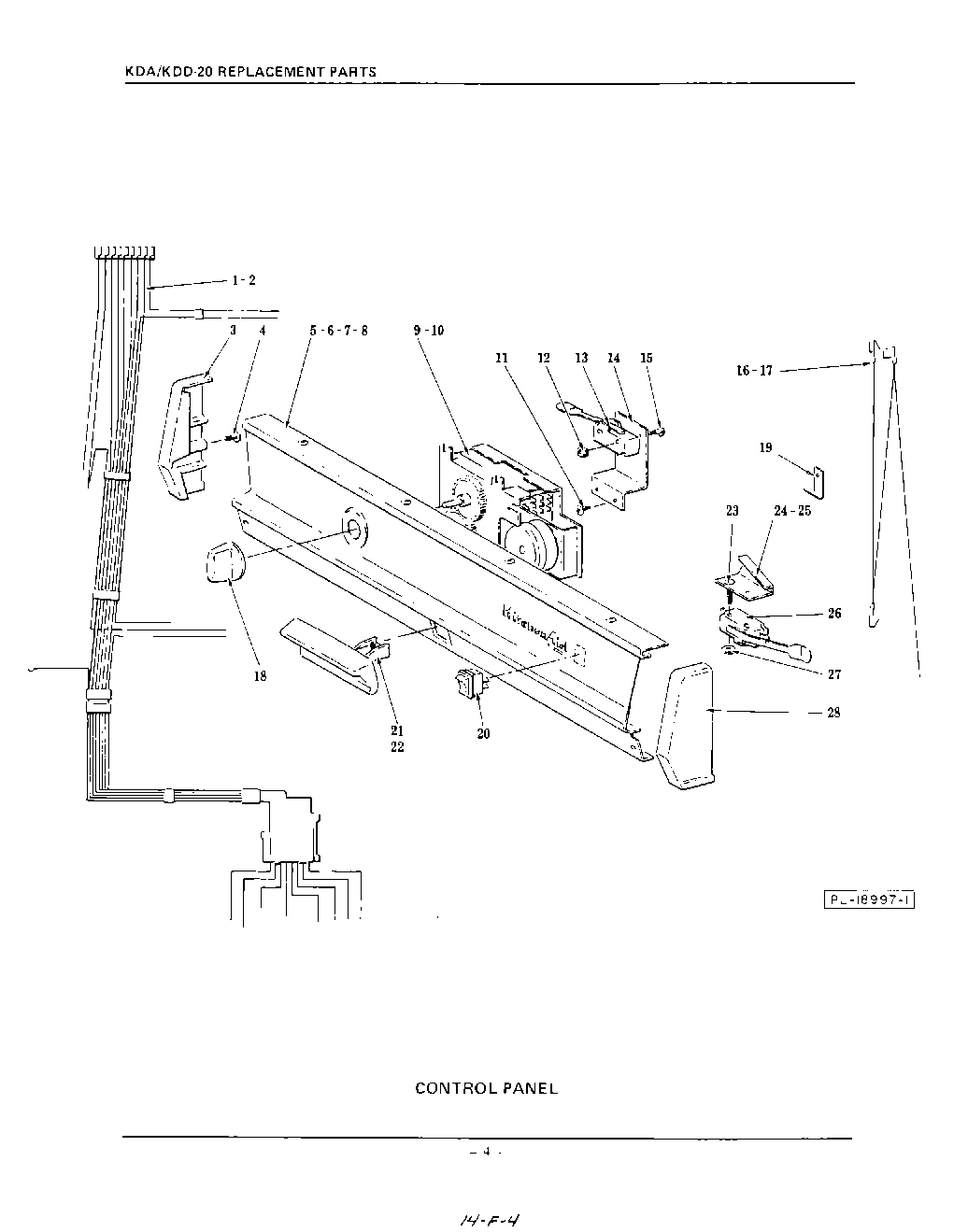

KDA20 03 – CONTROL PANEL

Products

Position	Product
1	Main Wiring Harness Assy. (KDA)
2	Main Wiring Harness Assy. (KDD)
3	WPL B241058
4	WPL B240513
5	Control Panel Assy. (KDA)
6	Control Panel Assy. (KDD)
7	Special Nut – 1/8“ Stud “Palnut“
8	WPL SD2227
9	Timer – Interval (115 V., 60 Hz.)
10	WPL SD1311
14	Bracket – Switch Mounting
16	Wiring Harness Assy. (Lower) (KDA)
17	Wiring Harness Assy. (Lower) (KDD)
18	Knob – Timer Control
19	Clip – Grounding (Front Panel)
20	Switch, Fan-2 Position
21	Handle – Latch
22	WPL SC1714
23	Mach. Screw – No.6-32 x 7/8“ Rd. Hd
24	Bracket – Interlock Switch
25	Self-Tapping Screw 6-32 x 3/8 Phil. Truss Hd., Type 17
26	Switch – Interlock
27	Special Nut – No.6-32 “Palnut“
28	Cap – End (R.H.)
