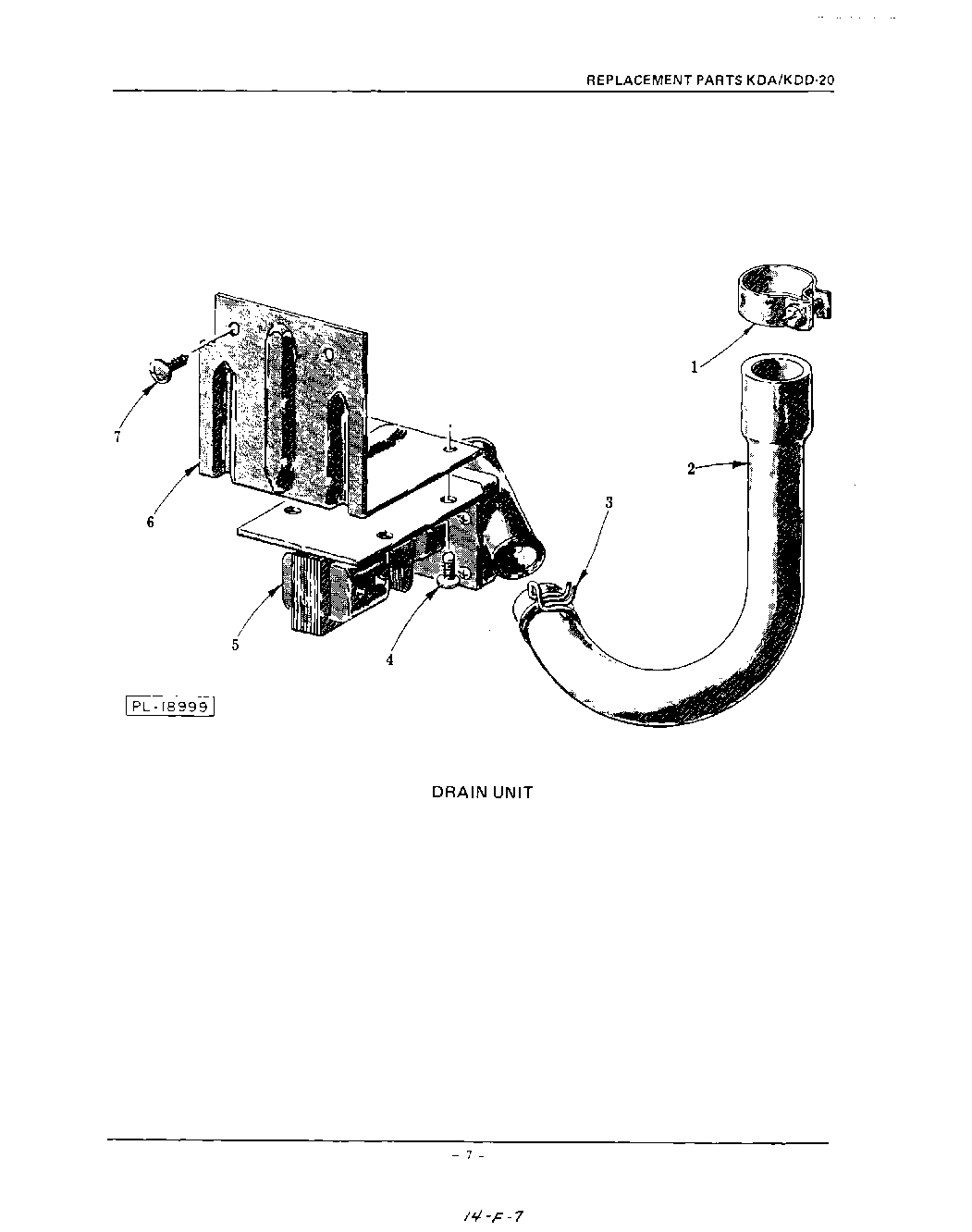

KDA20 05 – DRAIN

Written by

KDA20 05 – DRAIN

Products

Position	Product
1	Clamp – Hose (1.093“ Dia.)
2	Tube – Flexible (Drain)
3	Clamp – Hose (.937“ Dia)
5	Valve – Drain (115 V., 60 Hz.)
6	Bracket – Drain Valve Mounting
7	Self-Tapping Screw 10-16 x 1/2 Phil. Truss Hd., Type AB
