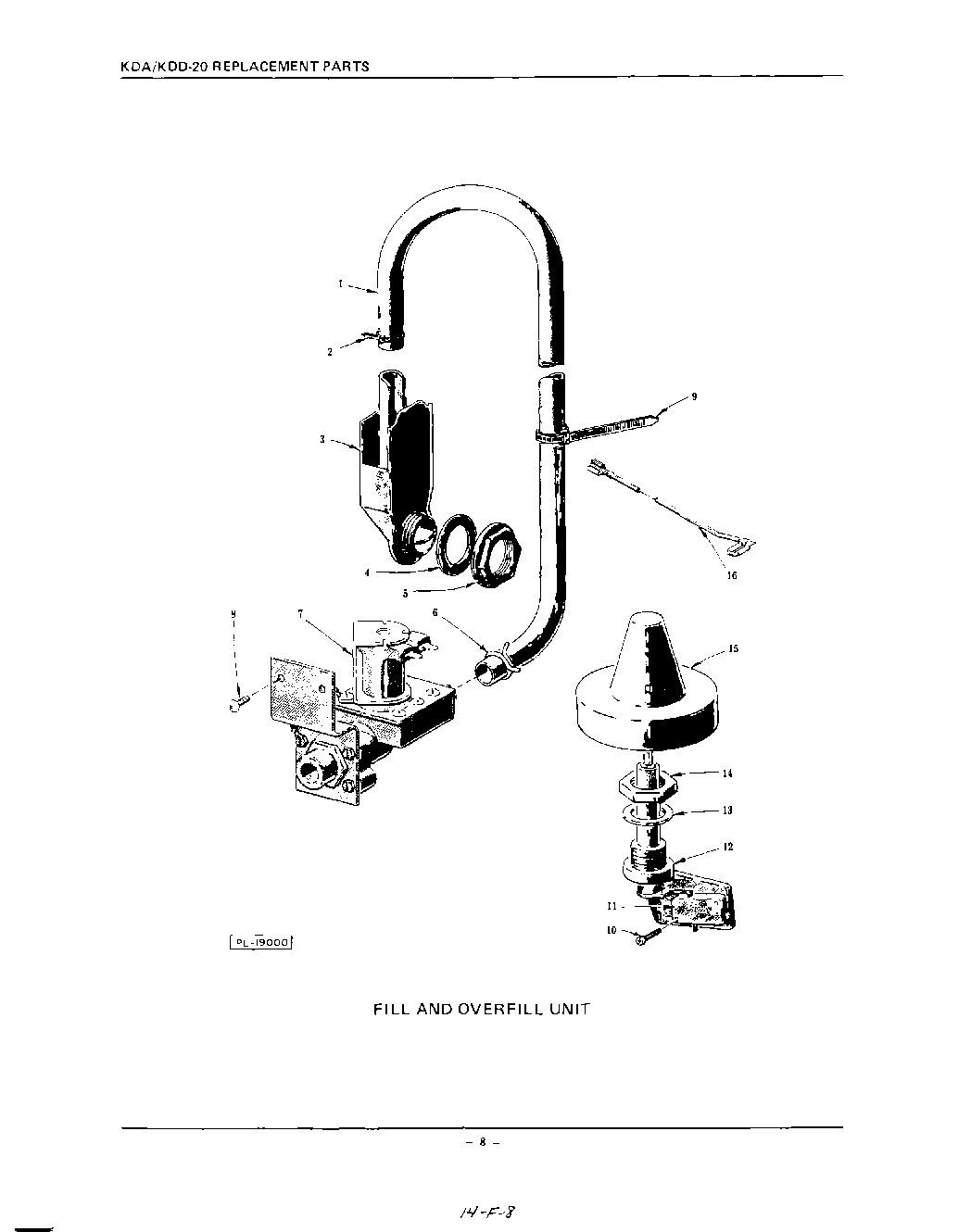

KDA20 06 – FILL AND OVER FILL

Products

Position	Product
1	Hose – Flexible (Fill Valve to Air Gap)
2	Clamp – Hose
3	Air Gap – Fill
4	Gasket – Rubber (White)
5	Nut (Fill Air Gap)
6	Clamp – Hose
7	Valve – Fill (Single Coil) (115 V., 60 Hz.)
8	Self-Tapping Screw 10-16 x 1/2 Phil. Truss Hd., Type AB
9	Strap (Flexible Connector to Tank)
10	Self-Tapping Screw 4-40 x 3/4 Phil. Pan Hd., Type F
11	Switch – Overfill Control (115 V., 60 Hz.)
12	Standpipe – Overfill
13	Gasket – Flat
14	Nut – Standpipe
15	Float & Retainer Assy
16	Harness – Overfill Control (Overfill Switch to Fill Valve)
