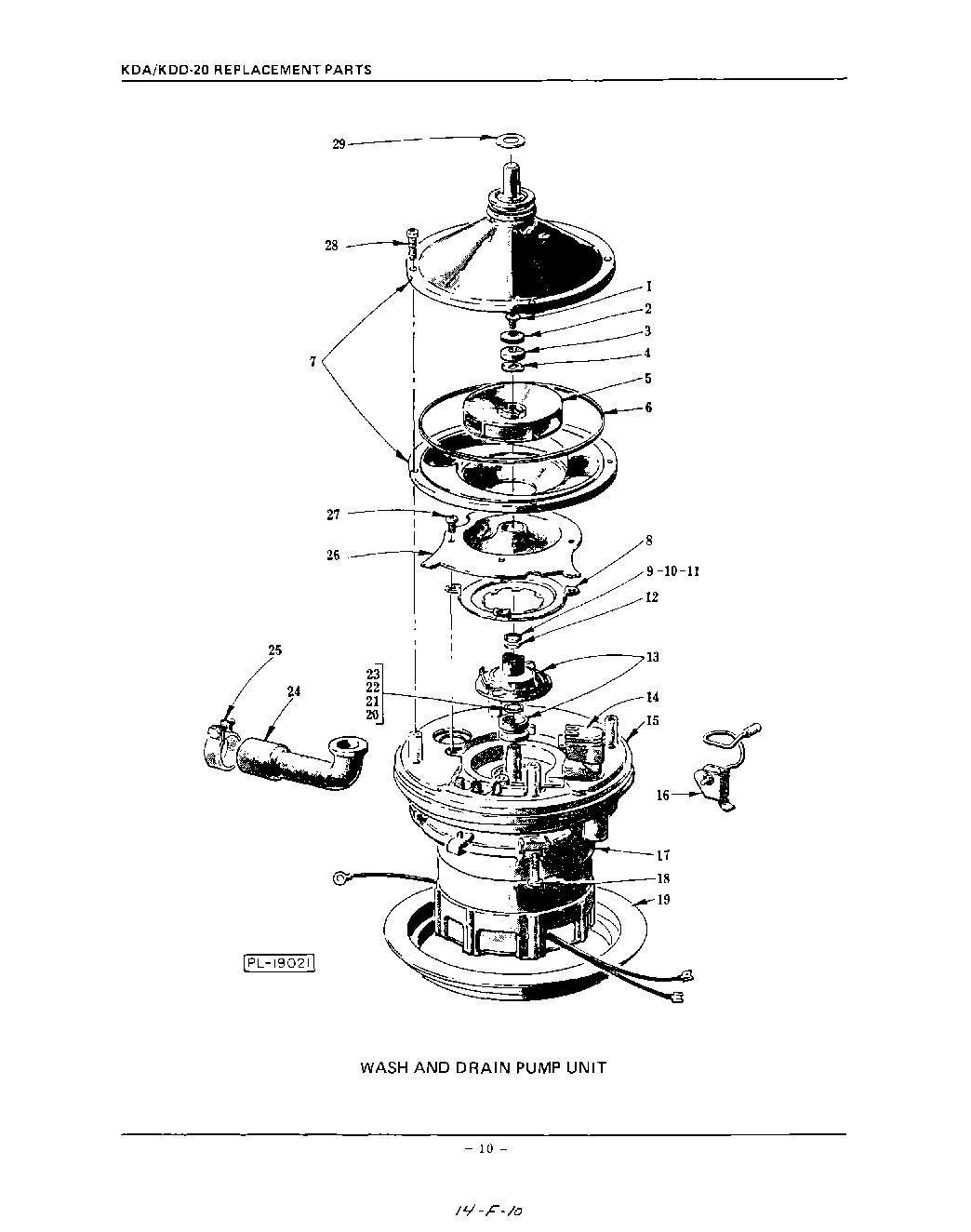

KDA20 07 – WASH AND DRAIN PUMP

Products

Position	Product
1	Mach. Screw – No.10-32 x 7/16“ Phil. Truss Hd
2	Washer – Spring (Impeller)
3	Cap – Washer
4	Washer – Key
5	Impeller – Wash Pump
6	Gasket – Ring (Wash Pump)
7	Support & Pump Body Kit (Incls. items No.6, 9, 10, 11, 28 & 29)
8	Top – Drain Pump
9	Washer – Shim (.005“ Thk.)
10	Washer – Shim (.015“ Thk.)
11	Washer – Shim (.030“ Thk.)
12	“O“ Ring
13	Shaft Seal & Drain Impeller Assy. (Incls. items No.2, 12 & E-240150)
14	Channel – Drain (Top Half)
15	Plate – Motor Mounting
16	Motor Clamp Assy
17	Motor, Seal & Gasket Assy. (115 V., 50/60 Hz.) (Incls. items No.9, 10, 11, 13, 19, 20, 21 & 22)
18	Mach. Screw 1/4-20 x 1 Pan Hd
19	Pump Seal
20	Washer – Shim (.005“ Thk.)
21	Washer – Shim (.015“ Thk.)
22	Washer – Shim (.030“ Thk.)
23	Washer – Shim (.048“ Thk.)
24	Connector – Overhead
25	Clamp – Hose (1.468“ Dia.)
26	Cover – Inlet
27	Mach. Screw 8-32 x 1/2 Phil. Pan Hd
28	Mach. Screw 10-24 x 1 Phil. Pan Hd
29	Washer – Wear
