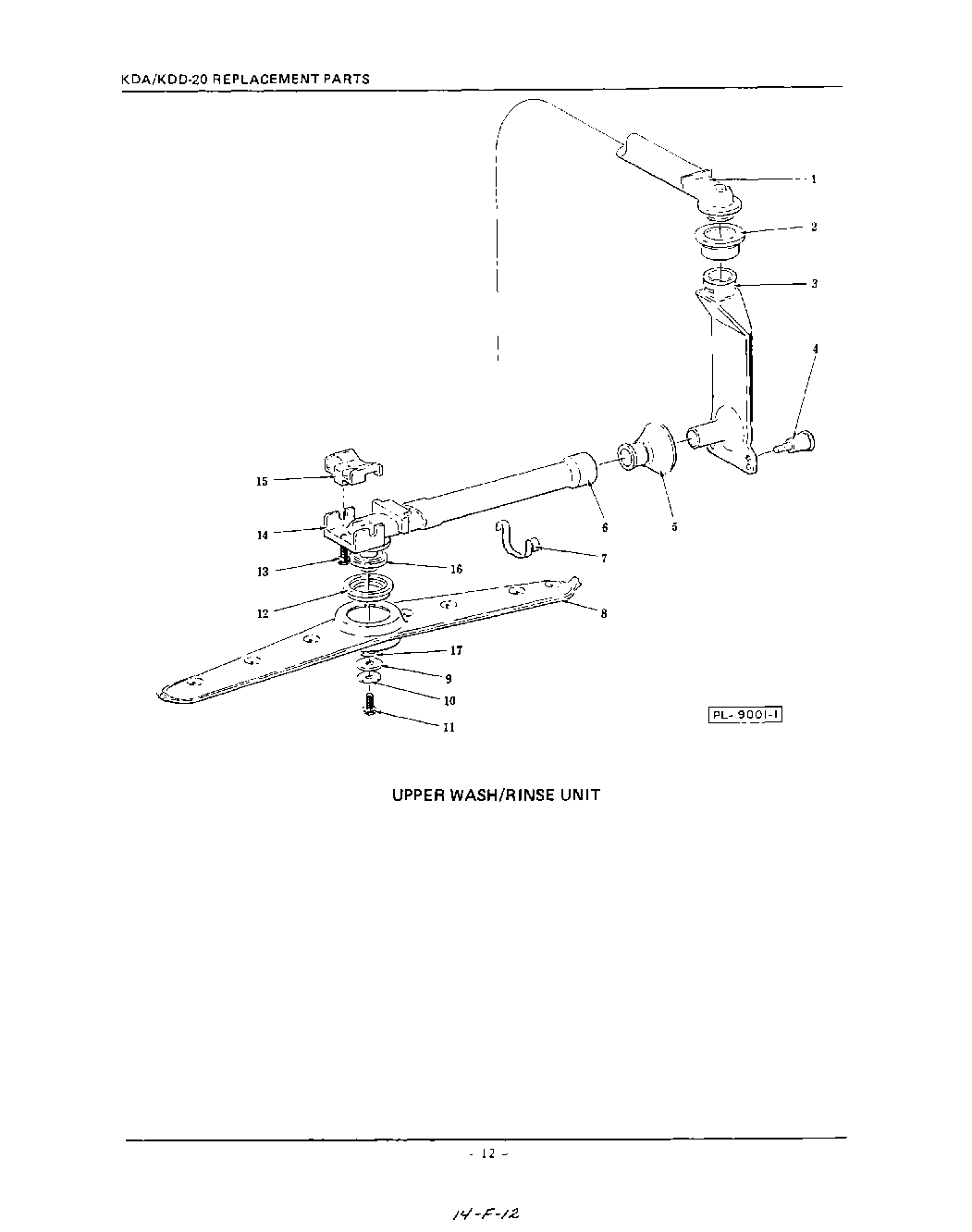

KDA20 08 – UPPER WASH/RINSE

Products

Position	Product
1	Tube & Connector Assy
2	Connector – Vertical Conduit
3	Conduit – Vertical
4	Retainer – Conduit
5	Receiver – Manifold
6	Tube (Manifold to Receiver)
7	Support – Receiver
8	Wash/Rinse Arm Assy
9	Bearing – Arm (Bottom)
10	Washer
12	Bearing – Arm (Top)
13	Special Screw – Hex Washer Hd
14	Manifold – Upper Arm
15	Retainer – Manifold
16	Spacer – Upper Rack (KDI-21, KDI-21B, KDB-21B, KDA-21 & KDC-21)
17	Washer
