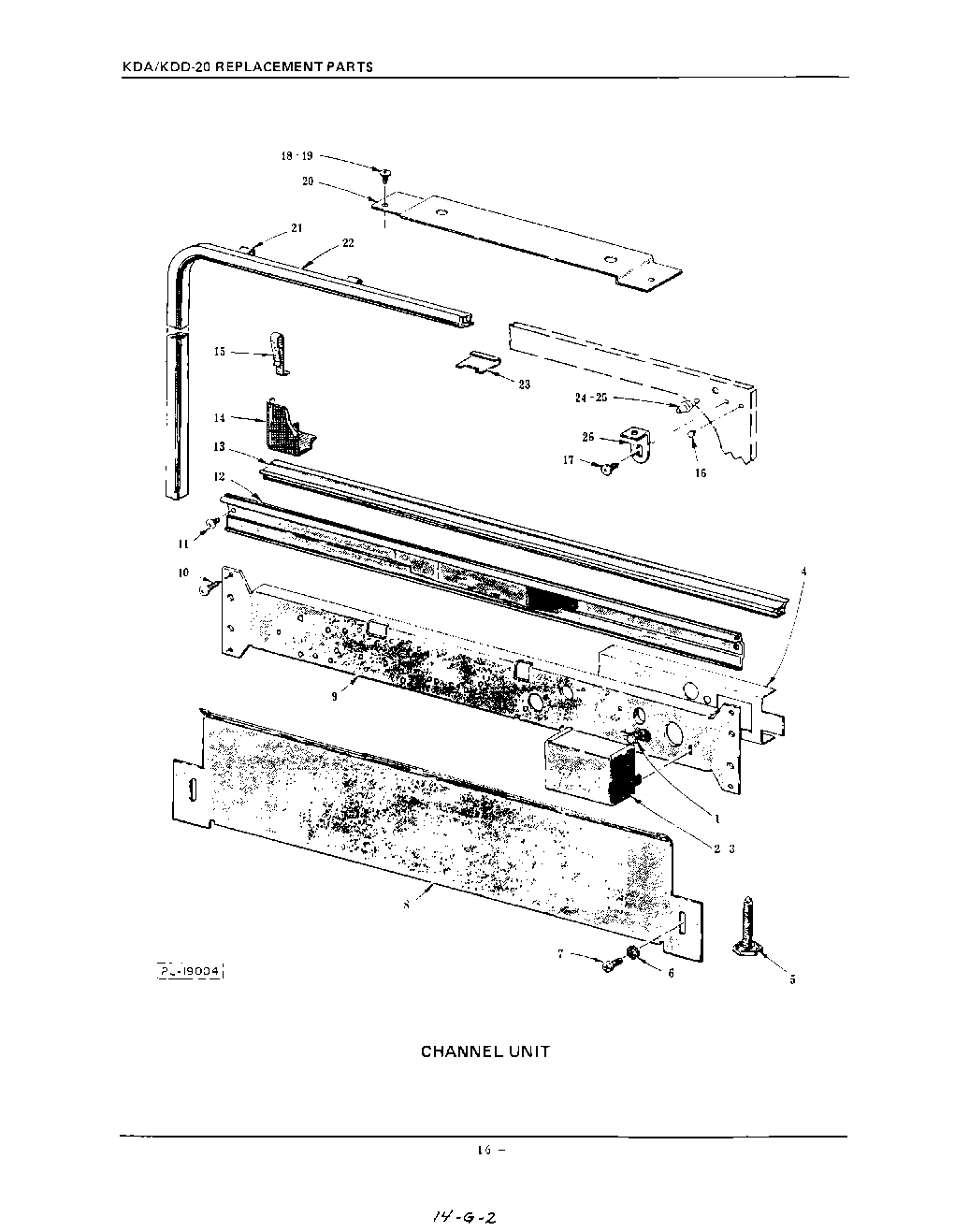

| 1 | Self-Tapping Screw 10-32 x 3/8 Indented Hex Washer Hd., Type T |
| 2 | Enclosure - Electrical Supply |
| 3 | Self-Tapping Screw 8-18 x 1/2 Phil. Bin |
| 4 | Barrier - Cross Channel |
| 5 | Foot - Leveling (5/16`` -18 Thd.) |
| 6 | Lock Washer |
| 7 | Self-Tapping Screw 10-16 x 3/8 Phil. Truss Hd., Type AB |
| 8 | Kick Board |
| 9 | Cross Frame - Front |
| 10 | Screw & Lock Washer Assy. 10-16 x 5/8 Phil. Truss Hd., Type AB |
| 11 | Mach. Screw - No.10-32 x 1/2`` Phil. Truss Hd., CA Pt. ``Taptite`` |
| 12 | Support - Evaporation Channel |
| 13 | Channel - Evaporation |
| 14 | Seal - Corner |
| 15 | Clip - Corner Seal |
| 16 | WPL M83745 |
| 17 | Self-Tapping Screw 10-16 x 1/2 Phil. Truss Hd., Type AB |
| 18 | Self-Tapping Screw 10-16 x 1/2 Phil. Truss Hd., Type AB |
| 19 | Speed Nut - No.10, Type U |
| 20 | Protector - Upper Water Inlet |
| 21 | Clip - Seal |
| 22 | Door Seal Assy. (Incls. item No.4) |
| 23 | Keeper - Latch |
| 24 | Actuator - Interlock Switch |
| 25 | Bumper - Door |
| 26 | WPL 242630 |
| 26 | Bracket - Top Panel Anchor |
