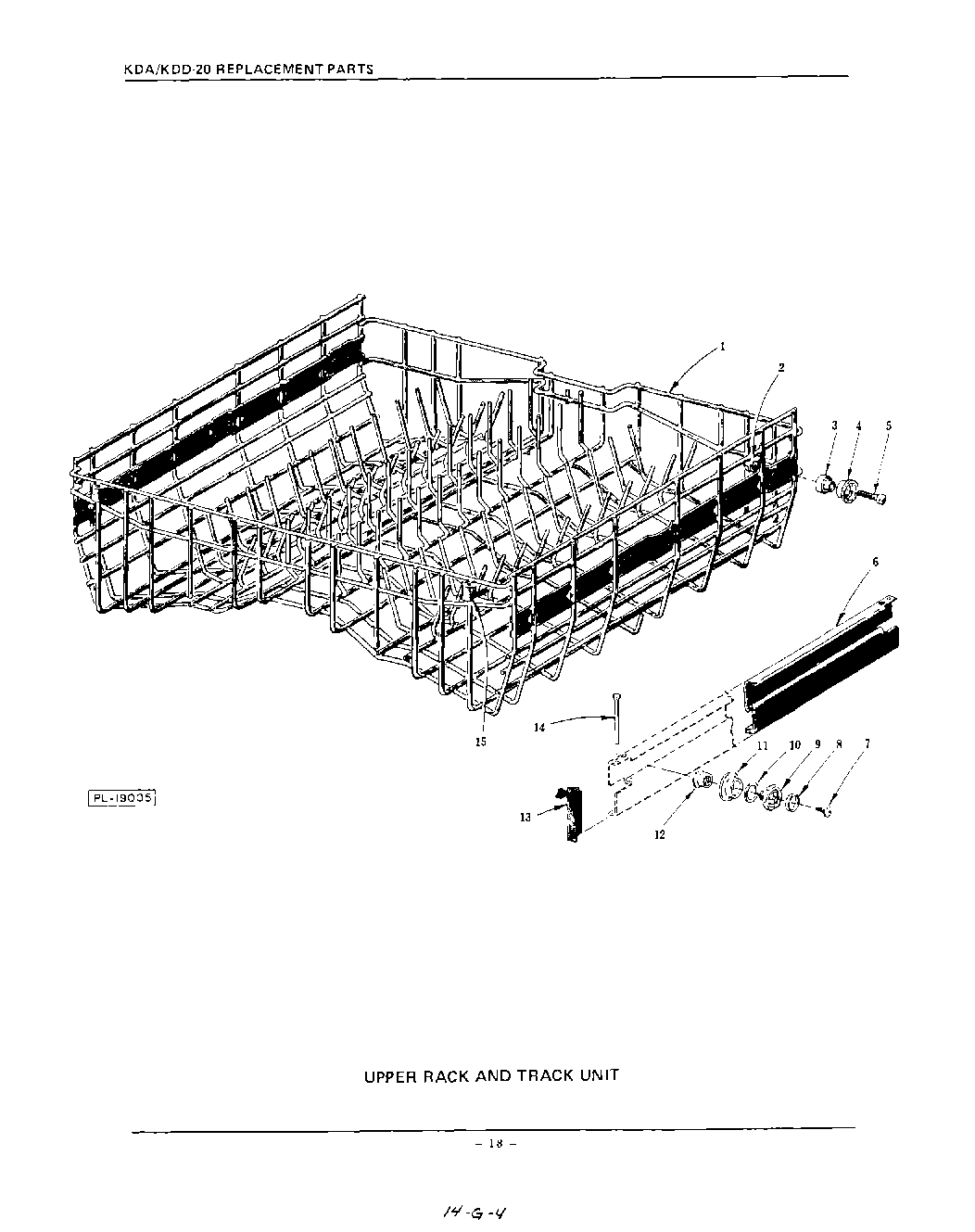

KDA20 12 – UPPER RACK AND TRACK

Products

Position	Product
1	Upper Rack Assy. (Incls. items No.2, 3, 4, 5 & 15)
2	Nut - Roller
3	Bearing & Spacer - Rack Roller
4	Roller - Upper Rack Track
5	Self-Tapping Screw 10-16 x 1 Phil. Pan Hd., Type B
6	Track - Rack
7	Self-Tapping Screw 10-16 x 3/8 Phil. Pan Hd., Type B
8	Gasket - Rack Stud
9	Stud - Rack Roller
10	Washer - Roller Spacing
11	Roller - Rack Track
12	Bushing - Rack Track
13	Bumper - Rack Track
14	Stud - Bumper Retaining
15	Bumper - Upper Rack
