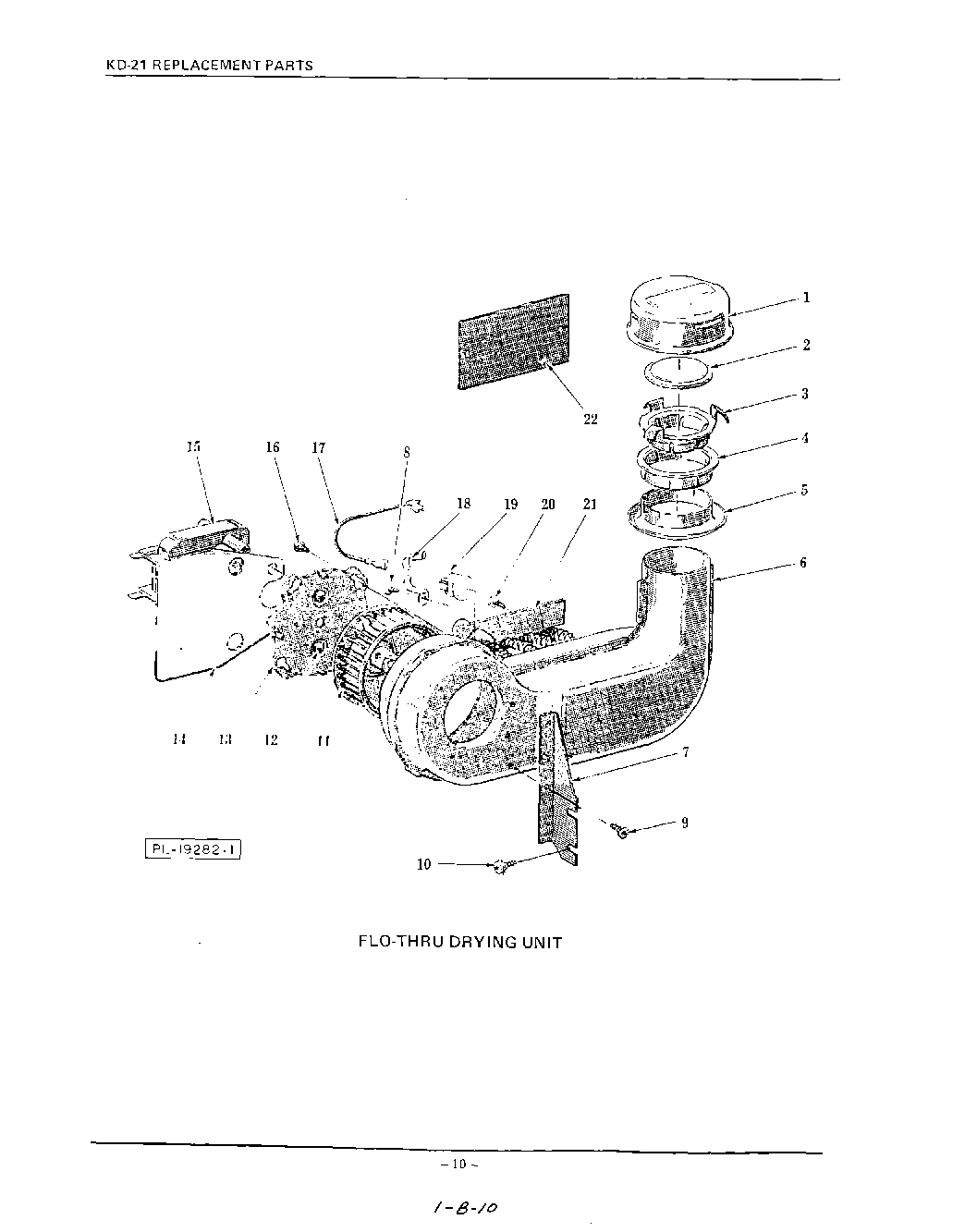

KDA21 06 – FLO-THRU DRYING

Products

Position	Product
1	Cover - Air Inlet
2	Float - Check Valve
3	Support - Air Inlet Cover
4	Deflector - Air (Upper)
5	Deflector - Air (Lower)
6	Dryer Housing & Bracket Assy. (Incls. items No.7 & 9)
7	Bracket - Housing Support
10	Screw & Lock Washer Assy. 10-16 x 5/8 Phil. Truss Hd., Type AB
11	Wheel - Blower (Incls. screw)
12	Self-Tapping Screw 10-24 x 5/16 Phil. Pan Hd. ``Taptite``
13	Plate - Blower Motor Mounting
14	Cover - Dryer Motor
15	Motor - Blower (115 V., 60 Hz.)
17	Lead (Heater to Thermostat) (115 V.)
18	Clip - Thermoprotector
19	Protector - Control
20	Self-Tapping Screw - No.8-18 x 5/16`` Phil. Pan Undercut Hd., Type AB
21	Heater - Open Coil (Dryer Unit) (115 V.)
22	Cover - Heater Hole
