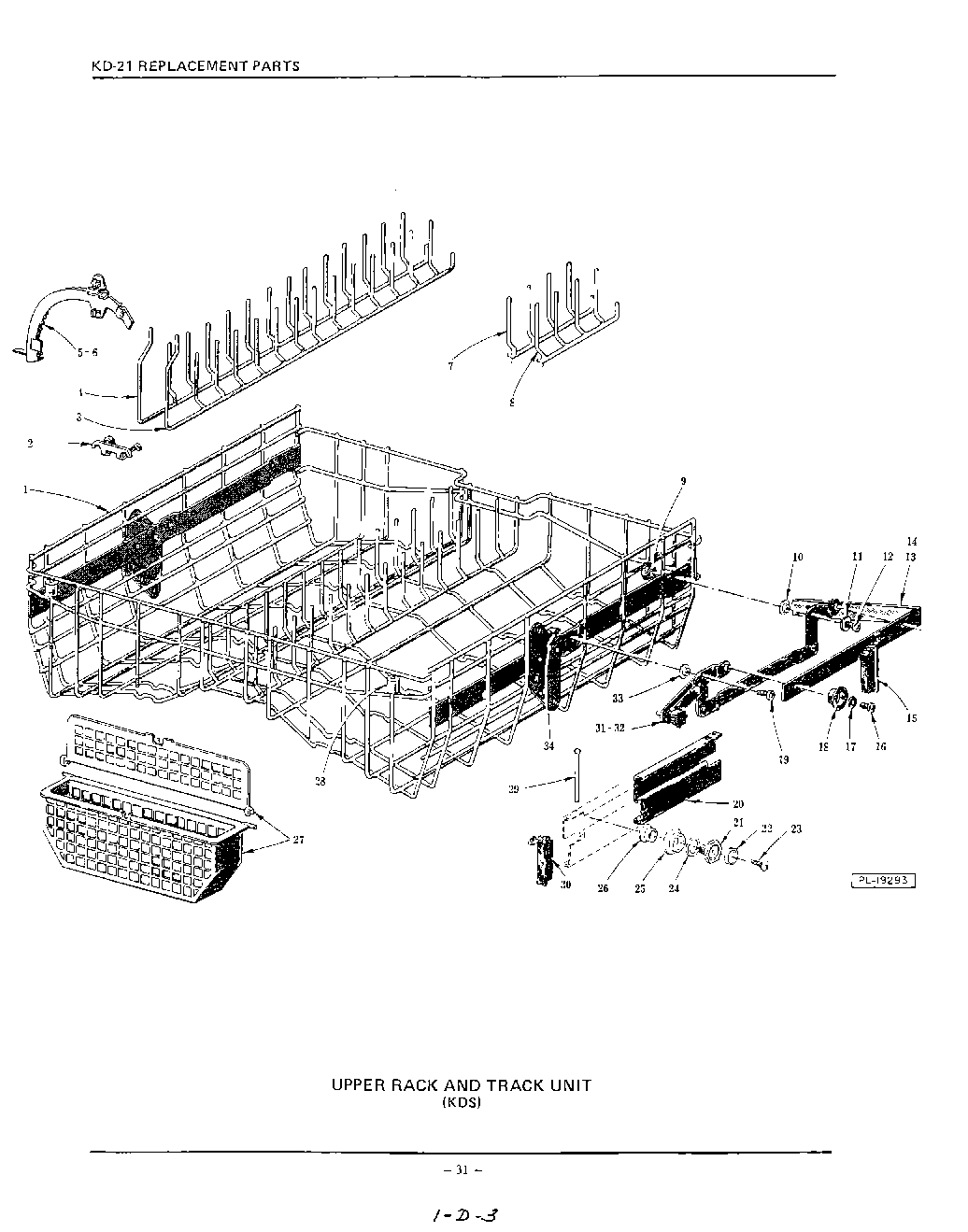

KDA21 18 – KDS

Products

Position	Product
1	Upper Rack Assy. (Incls. items No.2 thru 8 & 28)
2	Clip – Partition Retaining
5	Quadrant – Flexo Divider (L.H.)
6	Quadrant – Flexo Divider (R.H.) (Not Shown)
7	Partition – Upper Rack (R.H., Inside)
8	Partition – Upper Rack (R.H., Outside)
11	Washer – Rack
13	Lift – Receiver (R.H.)
14	Lift – Receiver (L.H.) (Not Shown)
16	Mach. Screw 8-32 x 1/4 Phil. Pan Hd. “Nylok“
17	Washer
18	Roller – Upper Rack
19	Self-Tapping Screw 10-16 x 5/8 Phil. Pan Hd., Type B
20	Track – Rack
21	Stud – Rack Roller
22	Gasket – Rack Stud
23	Self-Tapping Screw 10-16 x 3/8 Phil. Pan Hd., Type B
24	Washer – Roller Spacing
25	Roller – Rack Track
26	Bushing – Rack Track
27	Small Items Basket & Lid Assy
28	Bumper – Upper Rack
29	Stud – Bumper Retaining
30	Bumper – Rack Track
31	R.H. Adjustable Rack Track Mech
32	L.H. Adjustable Rack Track Mech. (Not Shown)
33	Bearing & Spacer – Rack Roller
34	Nut – Roller
