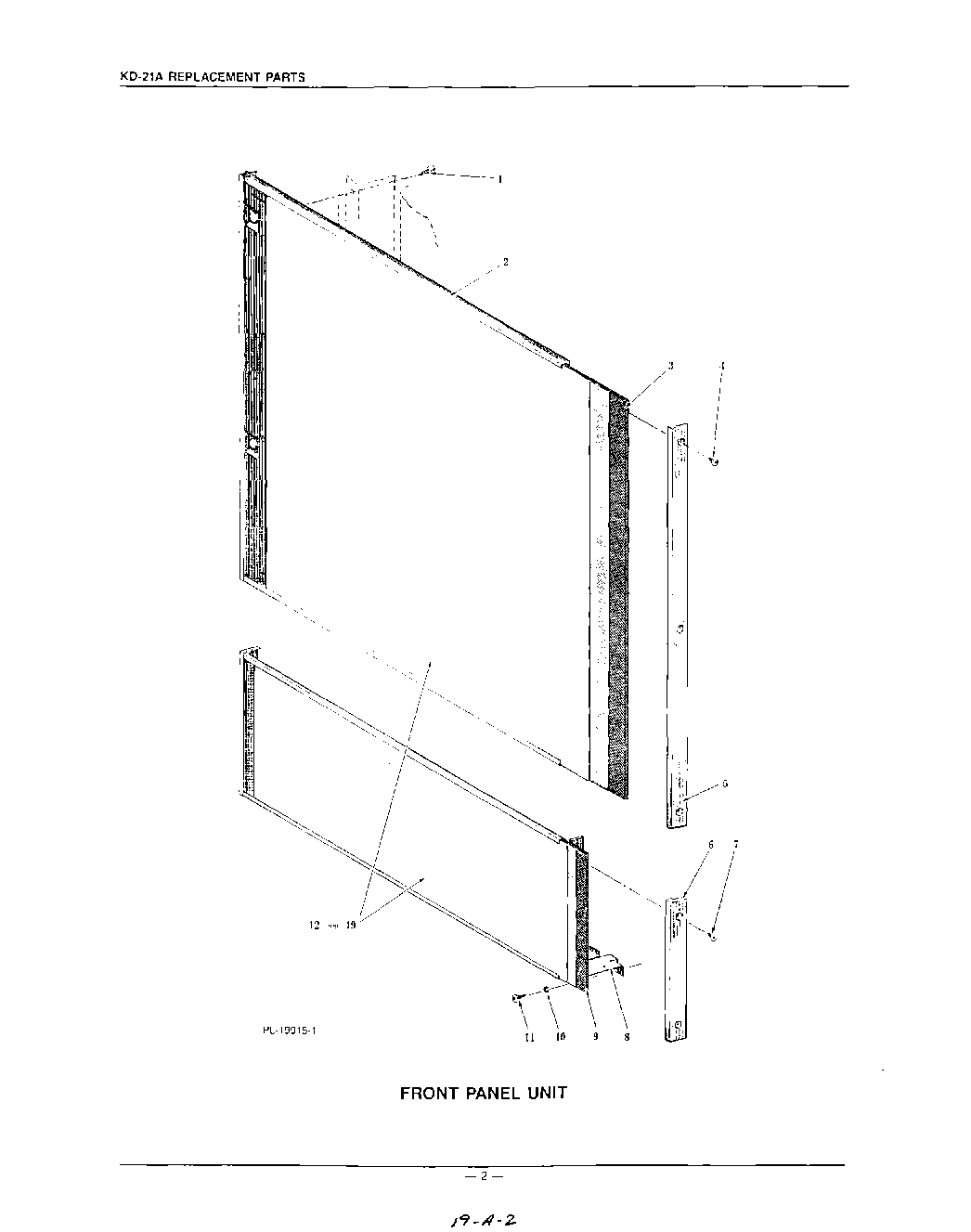

KDB21 02 – FRONT PANEL

Products

Position	Product
1	xxScrew & Washer Assy
2	xUpper Mounting Panel & Trim Assy
3	xFiller (Upper Panel)
4	xxSelf-Tapping Screw 6 x 1/4 Phil. Flat Hd., Type AB
5	Side Trim – Upper Panel
6	Side Trim – Lower Panel
7	xxSelf-Tapping Screw 6 x 1/4 Phil. Flat Hd., Type AB
8	xLower Mounting Panel & Trim Assy
9	xFiller (Lower Panel)
10	xLock Washer 10 Ext. Shakeproof (Left Side for Ground)
11	xSelf-Tapping Screw – No. 10 x 1/2“ Phil. Truss Hd., Type AB
12	Kit – Panel Inserts (FA/CO)
12	Kit – Panel Inserts (SST)
12	Kit – Panel Inserts (AL/WH)
12	Kit – Panel Inserts (SA/OB)
12	Kit – Panel Inserts (HT/OB)
12	Kit – Panel Inserts (SI/OB)
12	Kit – Panel Inserts (PL/TO)
