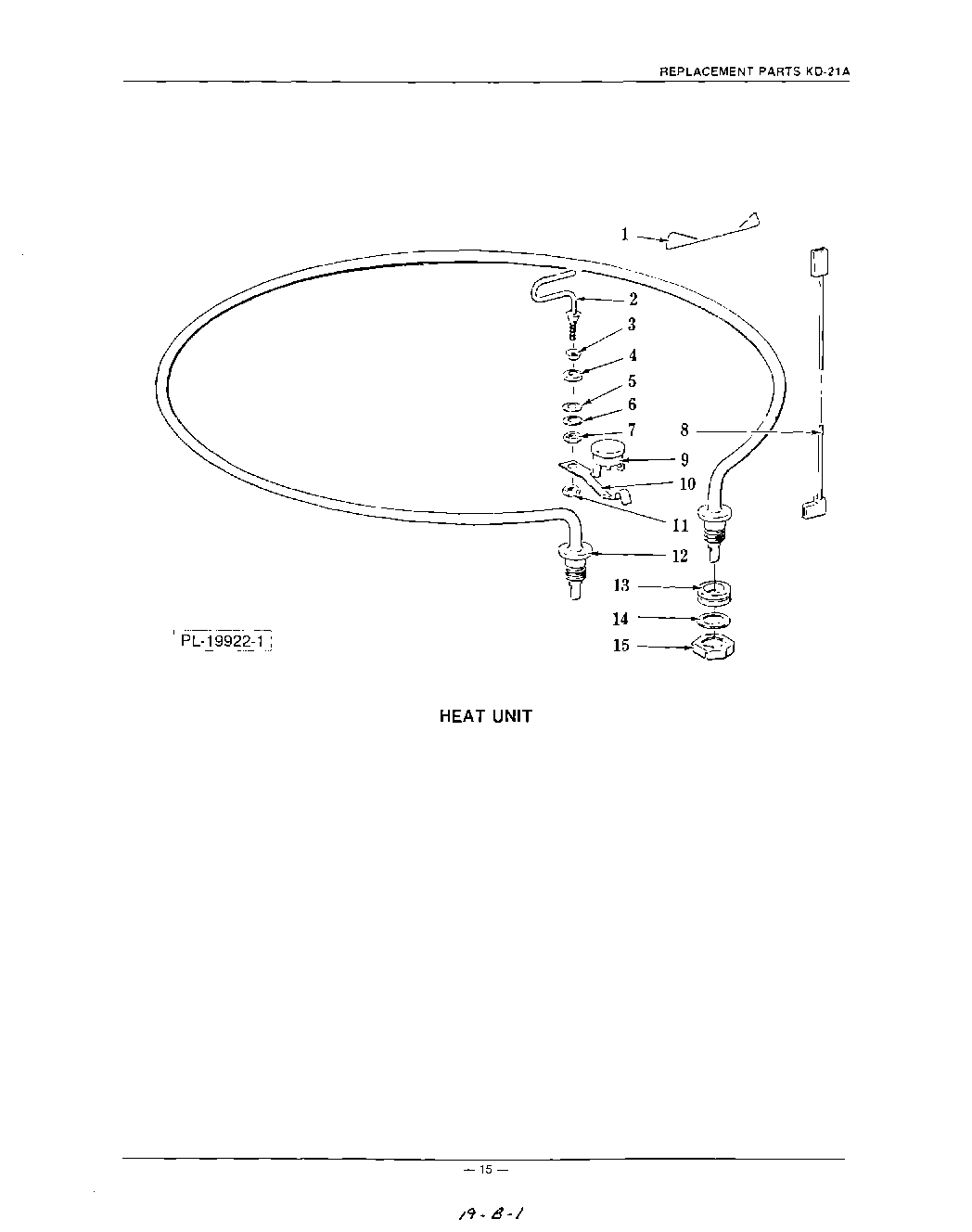

KDB21 09 – HEAT UNIT

Products

Position	Product
1	Spring – Heater Retainer
2	Hook – Heater Element
3	Washer – Countersunk
4	Washer – Sealing
5	Washer
6	Washer
8	xLead (Thermostat to Heater)
9	xThermostat – Limiter
10	xBracket – Thermostat
11	xLock Nut 10-32 Hex
12	Element – Heater
13	Grommet – Heater Element
14	Washer – Heater Element
15	Nut – Heater Element
15	Heater Kit (Service) (Incls. items 12 thru 15)
