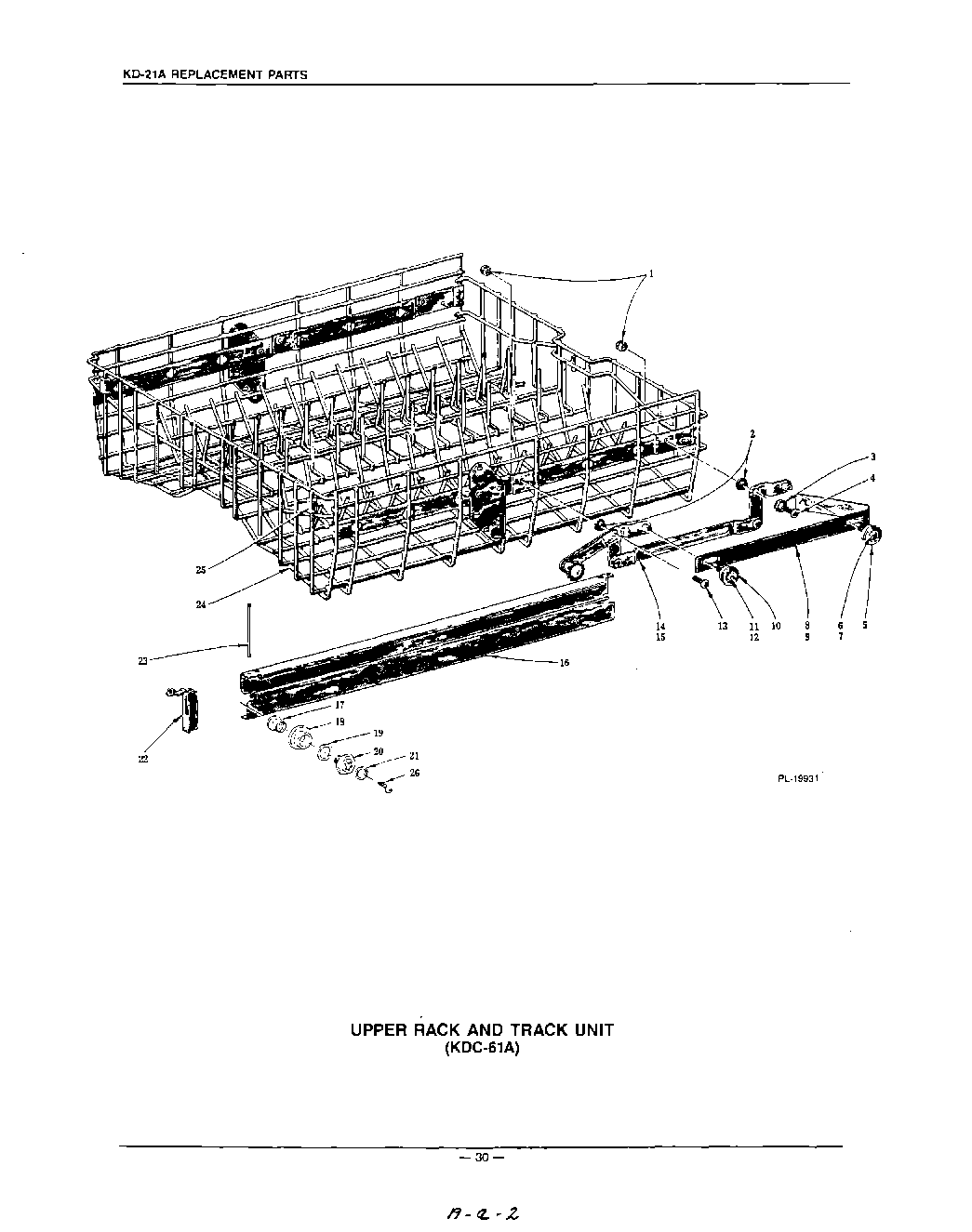

| 1 | Nut - Roller |
| 2 | Bearing & Spacer - Rack Adjusting |
| 3 | Washer - Rack |
| 8 | Lift - Receiver (R.H.) |
| 9 | Lift - Receiver (L.H.) (Not Shown) |
| 10 | Roller - Upper Rack |
| 11 | Mach. Screw 8-32 x 1/4 Phil. Pan Hd. ``Nylok`` |
| 12 | Washer |
| 13 | Self-Tapping Screw 10-16 x 5/8 Phil. Pan Hd., Type B |
| 14 | Adjustable Rack Track Mech. (R.H.) |
| 15 | Adjustable Rack Track Mech. (L.H.) (Not Shown) |
| 16 | Track - Rack |
| 17 | Bushing - Rack Roller |
| 18 | Roller - Rack Track |
| 19 | Washer - Roller Spacing |
| 20 | Stud - Rack Roller |
| 21 | Gasket - Rack Stud |
| 22 | Bumper - Rack Track |
| 23 | Stud - Bumper Retaining |
| 24 | Upper Rack Assy. (Incls. item 25) / (KDC-61A |
| 24 | Upper Rack Assy. (KDC-21AD & KDI-21AD) |
| 25 | Bumper - Upper Rack |
| 26 | Self-Tapping Screw 10-16 x 3/8 Phil. Pan Hd., Type B |
