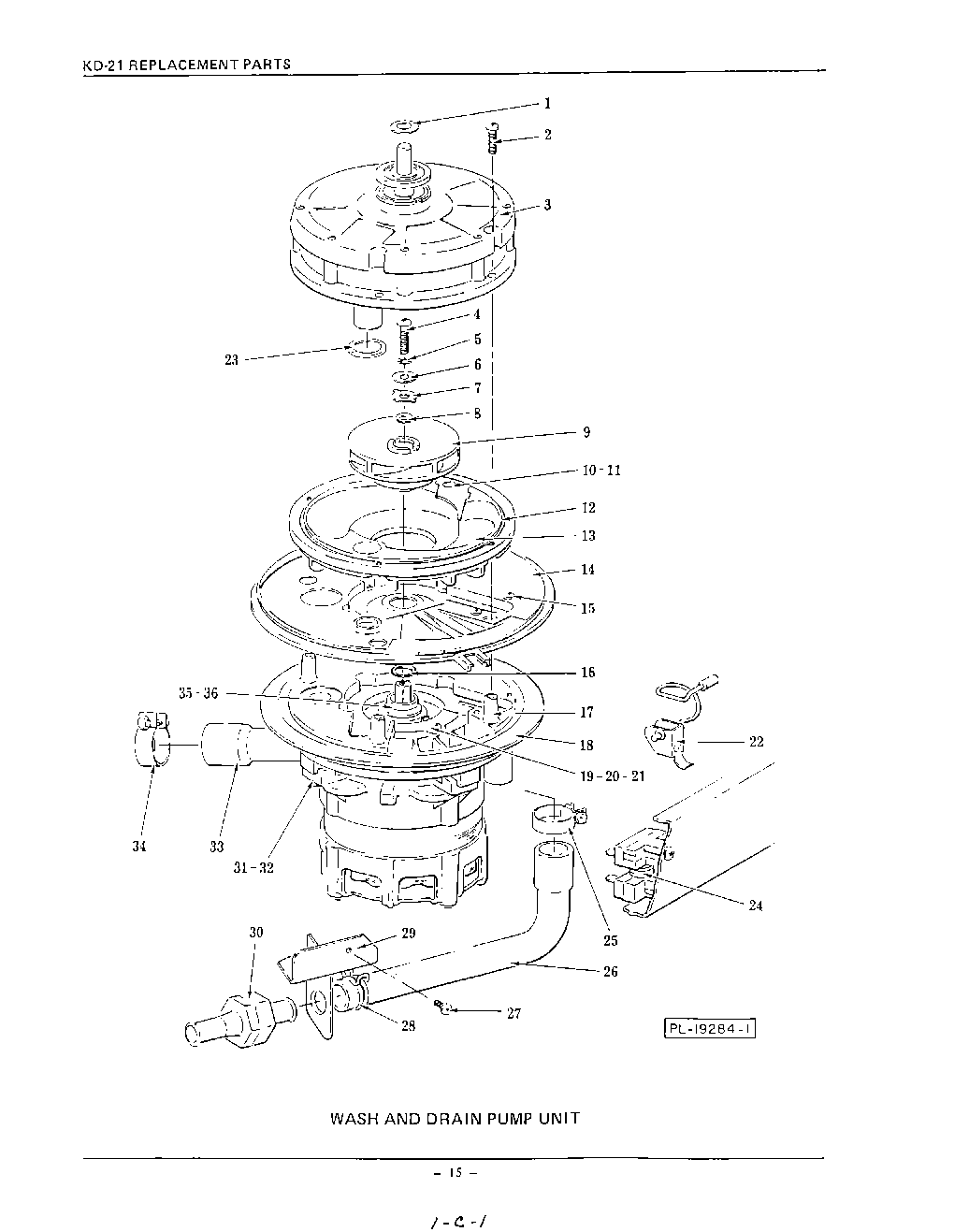

KDB21B 09 – WASH AND DRAIN PUMP

Products

Position	Product
1	Washer - Wear
2	Mach. Screw 10-24 x 1 Phil. Pan Hd
3	Wash Pump Top Kit (Incls. items 1 & 23)
4	Special Screw - No.10-32
5	Lock Washer 10 Ext. Shakeproof
6	Washer - Spring (Impeller)
7	Washer - Impeller
8	``O`` Ring
9	Wash Impeller Assy
10	Plate - Air Inlet Cover
11	Gasket - Cover Plate
12	WPW10196406 Whirlpool 6" Chrome Drip Bowl
13	Seal - Wash Pump Ring
14	Fine Strainer
16	``O`` Ring
17	Motor Mounting Plate Kit (Incls. items 18 & 35)
18	Gasket - Motor Mounting Plate
19	Drain Pump Top Assy
20	Gasket - Drain Pump
21	Mach. Screw 8-32 x 1/2 Phil. Pan Hd
22	Motor Clamp Assy
23	Gasket - Venturi
24	Relay - Start
25	Clamp -
26	Tube - Flexible (Drain)
27	Self-Tapping Screw 10-16 x 1/2 Phil. Truss Hd., Type AB
28	Clamp - Hose (.937`` Dia.)
29	Bracket - Check Valve
30	Check Valve Assy
31	Motor, Seal & Gasket Kit (Incls. items 18, 24 & 35)
32	Mach. Screw 1/4-20 x 1 Pan Hd
33	Connector - Overhead
34	Clamp - Hose (1.468`` Dia.)
35	Shaft Seal & Gasket Kit (Incls. items 8, 16, 20 & 23)
36	WPL 241936
36	Impeller - Drain
