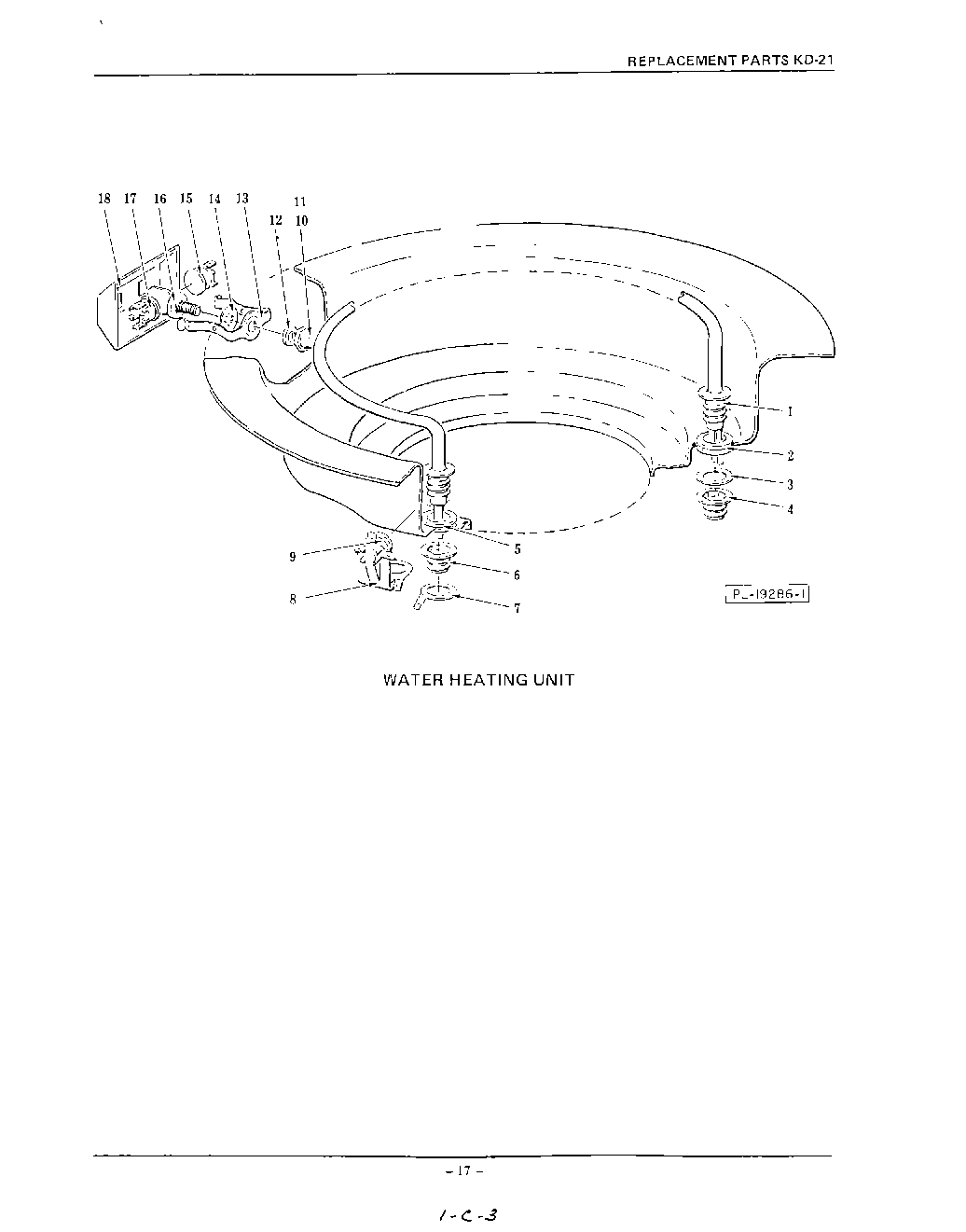

KDB21BSE 10 – WATER HEATING

Products

Position	Product
1	Water Heating Element Assy. (Incls. items No.2, 4, 5 & 6)
3	Washer
5	Grommet – Heat Element
6	Nut – Heat Element
7	Terminal – Grounding (Heat Element)
8	Bracket – Thermostat
9	Thermostat
10	Nut – Heat Sensing
11	“O“ Ring
12	Gasket – Heat Transfer
13	Spring – Thermostat Mounting
14	Terminal – Grounding
15	Thermostat – Heat Control
16	Screw – Thermostat Thumb
17	Protector – Heat Control
18	Cover – Thermostat
18	Lead Assy. (Thermoprotector) (Not Shown)
