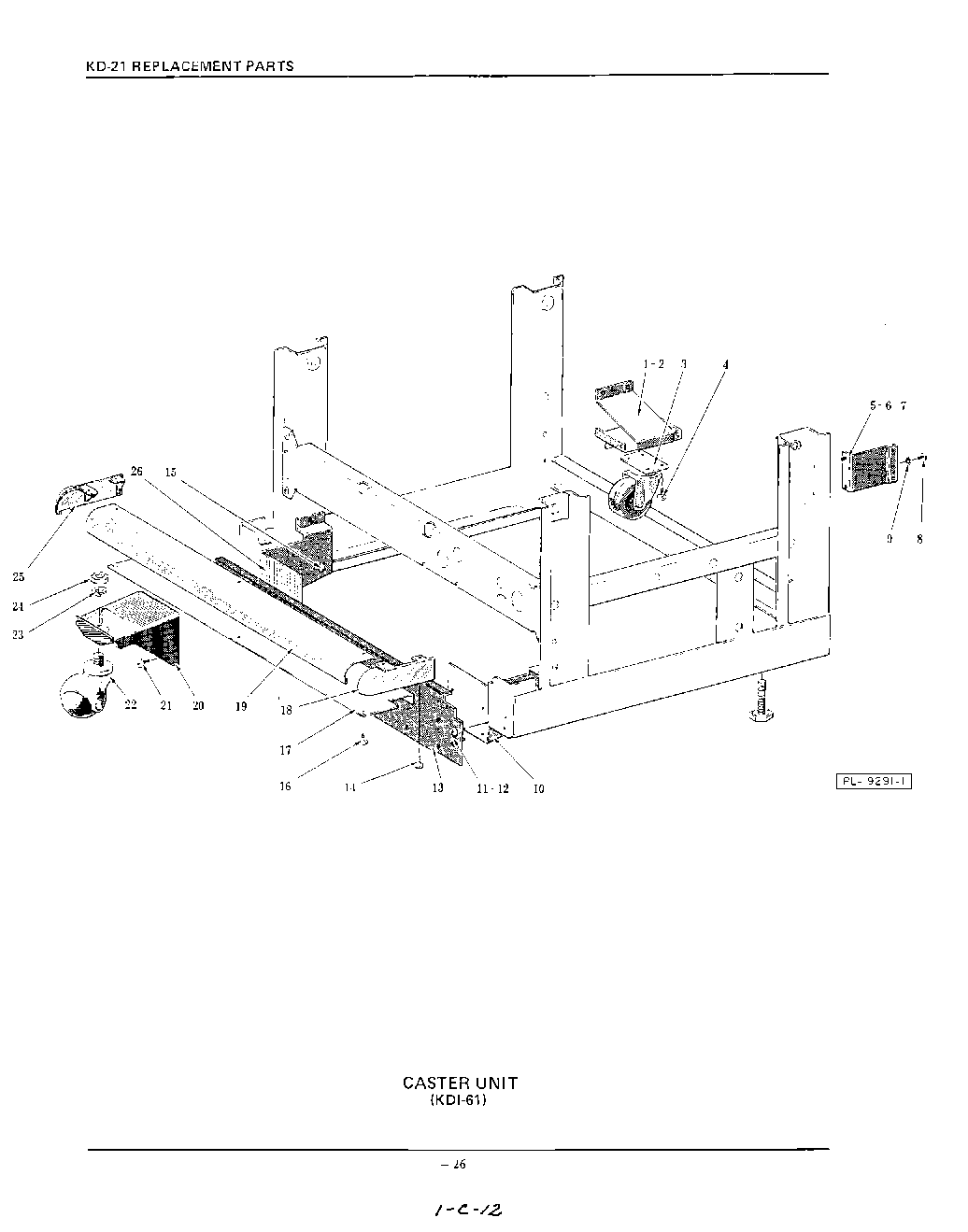

KDB21BSE 15 – CASTER KDI-61

Products

Position	Product
1	Bracket - Rear Caster
3	Caster - Rear
5	Bracket - Side Panel Mounting
8	Self-Tapping Screw 10-16 x 5/16 Phil. Truss Hd., Type AB
10	Support - Front Caster Bracket (R.H.)
11	Self-Tapping Screw 10-16 x 3/8 Phil. Truss Hd., Type AB
12	Lock Washer
13	Kickboard
14	Self-Tapping Screw 10-16 x 3/8 Ind. Hex Hd., Type AB
15	Self-Tapping Screw 10-16 x 1/2 Phil. Truss Hd., Type AB
16	Self-Tapping Screw 6-20 x 3/8 Phil. Rd. Hd., Type AB
17	Barrier - Front Panel
18	End Cap - Caster Trim (R.H.)
19	Trim - Front Caster
20	Bracket - Front Caster
21	Self-Tapping Screw 10-16 x 1/2 Phil. Truss Hd., Type AB
22	Caster - Front
23	Lock Washer - 3/8`` Light
24	Jam Nut 3/8-16 Hex Fin
25	End Cap - Caster Trim (L.H.)
26	Support - Front Caster Bracket (L.H.)
