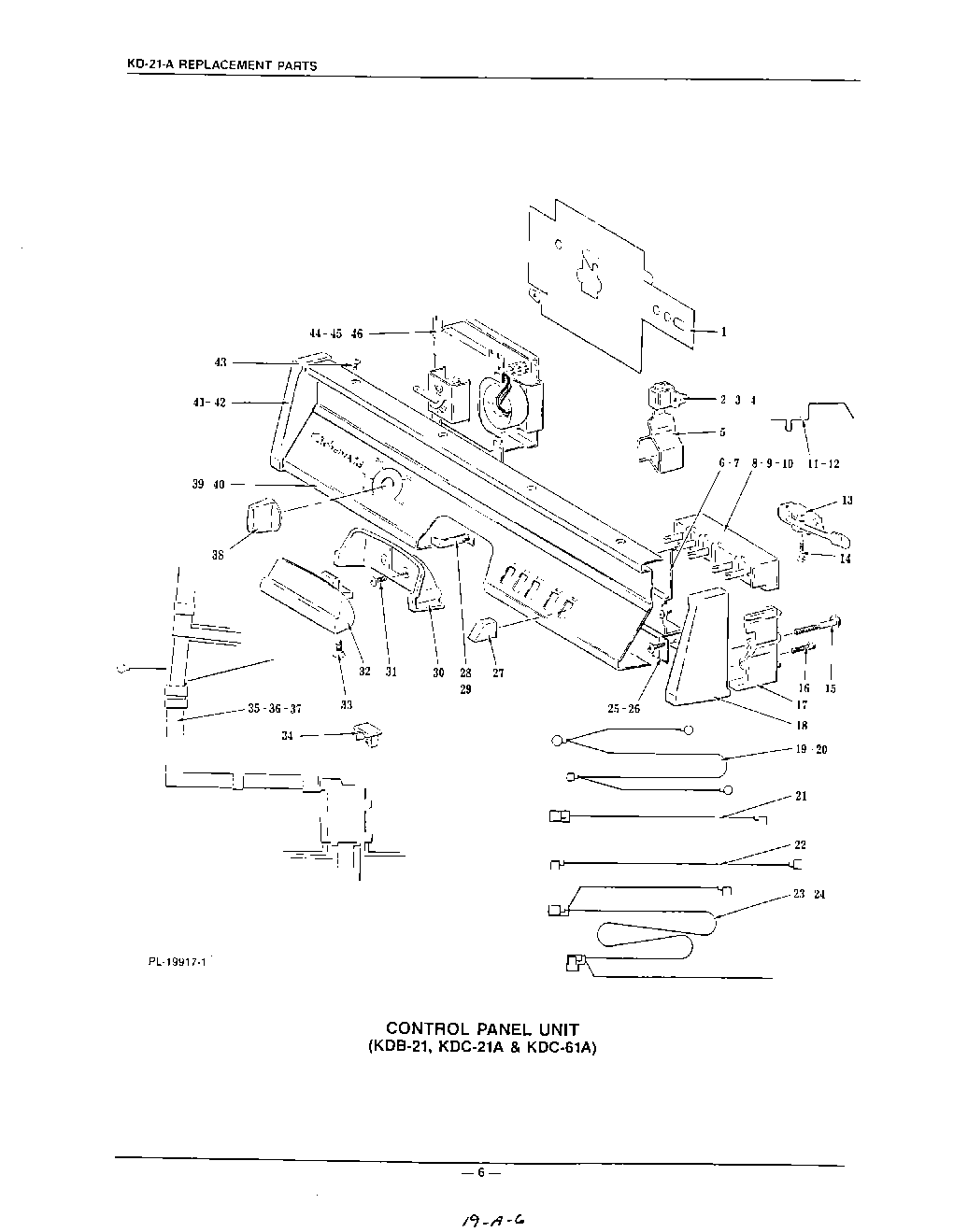

KDB21SE 04 – KDB-21, KDC-21A AND KDC-61A

Products

Position	Product
1	Insulator – Latch Area
2	Anchor – Cancel Spring
3	Spacer – Spring
4	Pop Rivet – 1/8“ Open End
5	Spring – Switch Cancel
6	Bracket – Program Switch
8	Switch – Program (KDB-21)
9	W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
10	Self-Tapping Screw 6-32 x 3/8 Phil. Truss Hd., Type 17
11	Spring – Door Interlock
12	Self-Tapping Screw 10-16 x 1/2 Phil. Truss Hd., Type AB
13	Switch – Interlock
14	Self-Tapping Screw 6-32 x 7/8 Phil. Pan Hd., Type F
15	Screw & Washer Assy
16	Self-Tapping Screw 8-32 x 7/8 Phil. Pan Hd., Type TT
17	Spacer – End Cap (R.H.)
18	Cap – End (R.H.)
19	Wiring Harness (Grounding) (KDB-21)
20	Wiring Harness (Grounding) (KDC-21A & KDC-61A)
21	Lead Assy. (Fill Control Switch to Fill Valve)
22	Lead Assy. (Interlock Switch to Program Switch)
23	Wiring Harness (Lower Common) (KDB-21)
24	Wiring Harness (Lower Common) (KDC-21 & KDC-61A)
25	Clip – Grounding (Front Panel)
27	Button – Program Switch
28	326789 Whirlpool Surface Element 8 Inch
29	Self-Tapping Screw 6-20 x 3/8 Phil. Truss Hd.,
30	WPL 2424222
31	WPL SC11752
32	WPL 242414
33	WPL SC1714
34	WPL 242641
35	WPL 243019
36	WPL 242969
37	WPL SD843
38	WPL 241537
39	WPL 2429723
40	WPL 2429721
41	WPL 2424942
42	WPL 2424132
43	WPL SD2227
44	WPL 242993
45	WPL 242959
46	WPL 2429731
46	WPL 2429733
46	WPL SD1311
