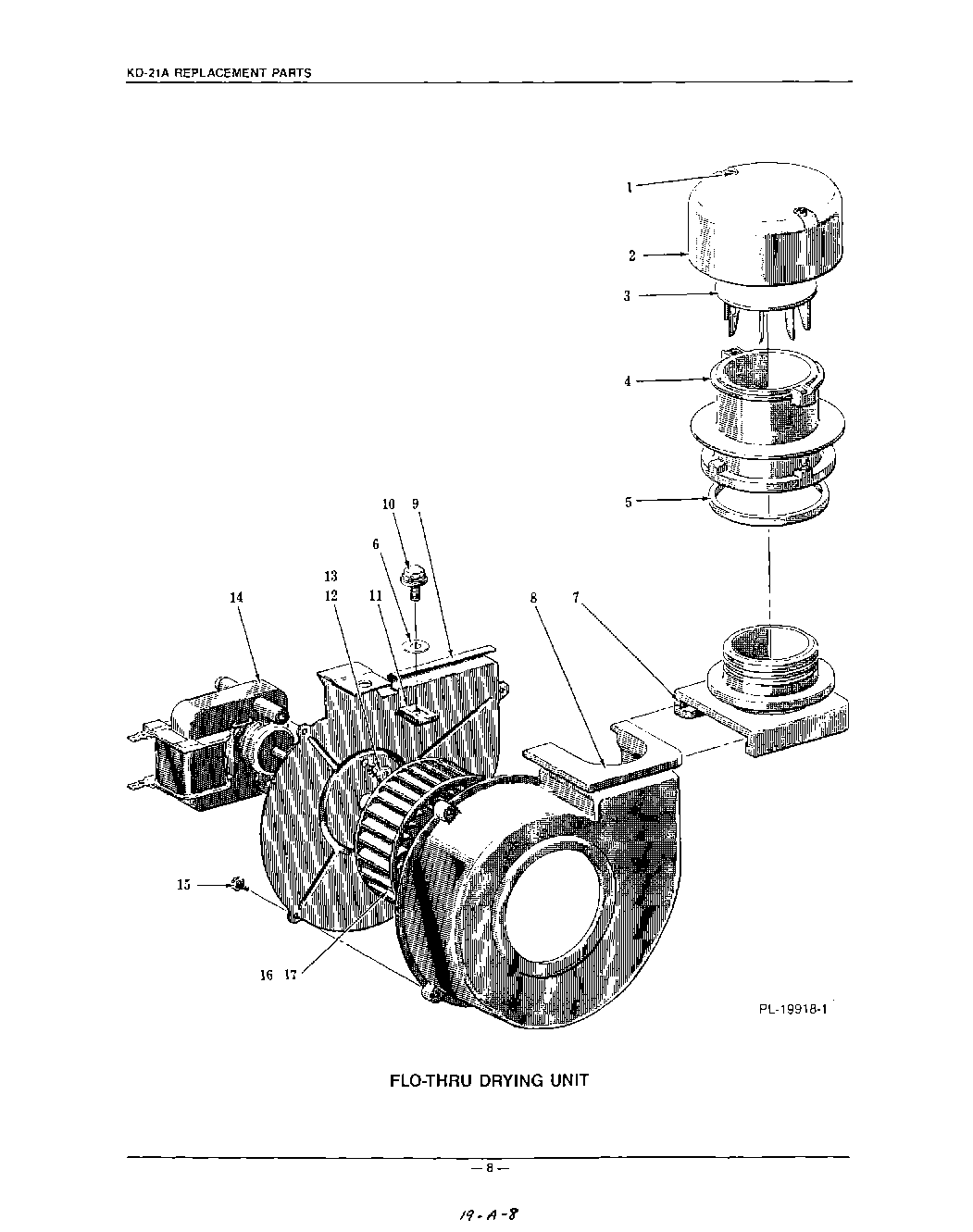

KDB21SE 05 – FLO-THRU DRYING

Products

Position	Product
1	Self-Tapping Screw 6-32 x 7/8 Phil. Rd. Hd., Type B
2	Cap – Air Inlet
3	Damper – Air Inlet
4	Tube – Air Inlet
5	Seal – Air Inlet
6	Spacer – Blower Mounting
7	Support – Blower
8	Housing – Blower
9	Plate – Blower Motor Mounting
10	Screw – Blower Retainer
11	Speednut – Type “U“
12	Mach. Nut 6-32 Hex
13	Lock Washer 6 Ext. Shakeproof
14	Motor – Blower (115 V., 60 Hz.) (Incls. Screws)
15	Self-Tapping Screw 6 x 1/2 Phil. Pan Hd., Type B
16	Blower Wheel Assy. (Incls. item 17)
17	Blower Assy. Unit (Incls. items 8, 9, 11, 12, 13, 14, 15 & 16)
17	Retaining Ring
