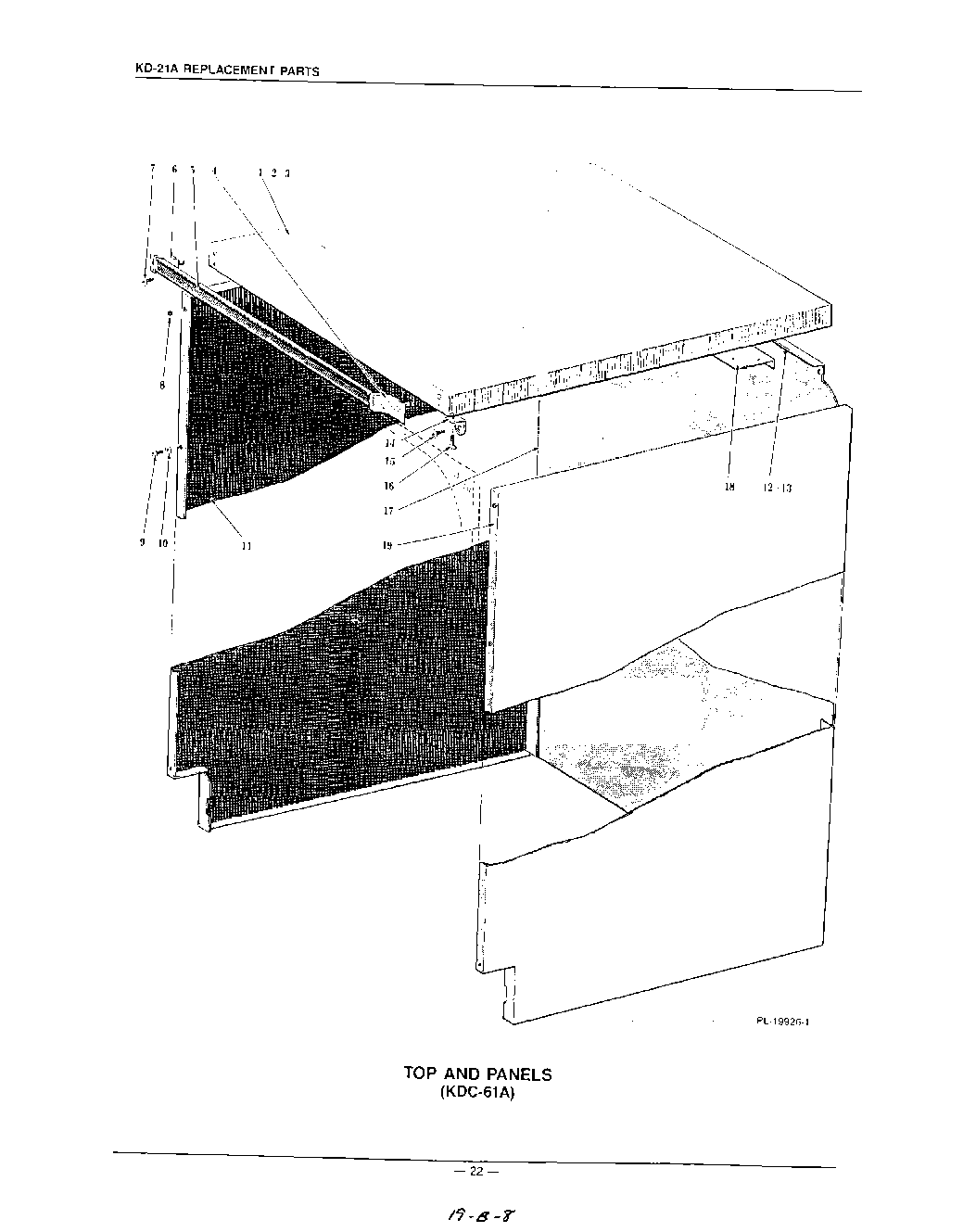

KDB21SE 13 – TOP AND PANELS

Products

PositionProduct
1Wood Top & Insulation Assy. (W/Pull Bar) (Incls. items 3 thru 7)
2Wood Top & Insulation Assy. (W/O Pull Bar) (Incls. item 3)
3Wood Screw 10-13 x 3/4 Phil. Rd. Hd
4End Cap – Guide Bar (R.H.)
5Bar – Guide
6End Cap – Guide Bar (L.H.)
7Wood Screw 10-13 x 3/4 Phil. Oval Hd
8Lock Washer
11Side Panel (L.H.) (Almond)
11Side Panel (L.H.) (Harvest Tone)
11Side Panel (L.H.) (White)
12Self-Tapping Screw 10-16 x 5/16 Phil. Truss Hd., Type AB
13Washer
14Bracket – Top Panel Anchor
15Self-Tapping Screw 10-16 x 1/2 Phil. Truss Hd., Type AB
16Wood Screw 10-13 x 3/4 Phil. Flat Hd
17Panel – Rear (Almond)
18Bracket – Rear Panel Anchor
19Side Panel (R.H.) (White)
19Side Panel (R.H.) (Almond)
19Side Panel (R.H.) (Harvest Tone)
