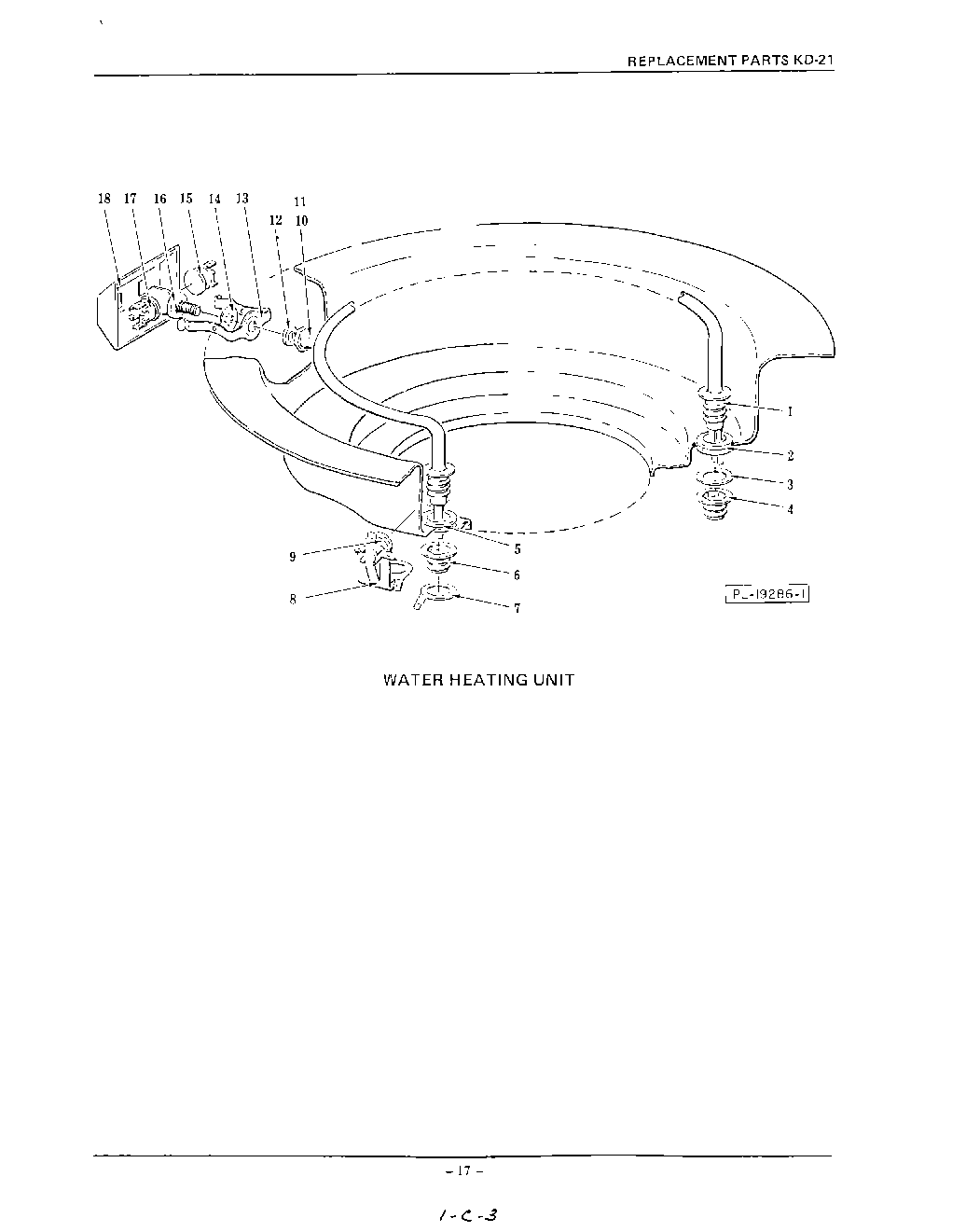

| 1 | Water Heating Element Assy. (Incls. items No.2, 4, 5 & 6) |
| 3 | Washer |
| 5 | Grommet - Heat Element |
| 6 | Nut - Heat Element |
| 7 | Terminal - Grounding (Heat Element) |
| 8 | Bracket - Thermostat |
| 9 | Thermostat |
| 10 | Nut - Heat Sensing |
| 11 | ``O`` Ring |
| 12 | Gasket - Heat Transfer |
| 13 | Spring - Thermostat Mounting |
| 14 | Terminal - Grounding |
| 15 | Thermostat - Heat Control |
| 16 | Screw - Thermostat Thumb |
| 17 | Protector - Heat Control |
| 18 | Cover - Thermostat |
| 18 | Lead Assy. (Thermoprotector) (Not Shown) |
