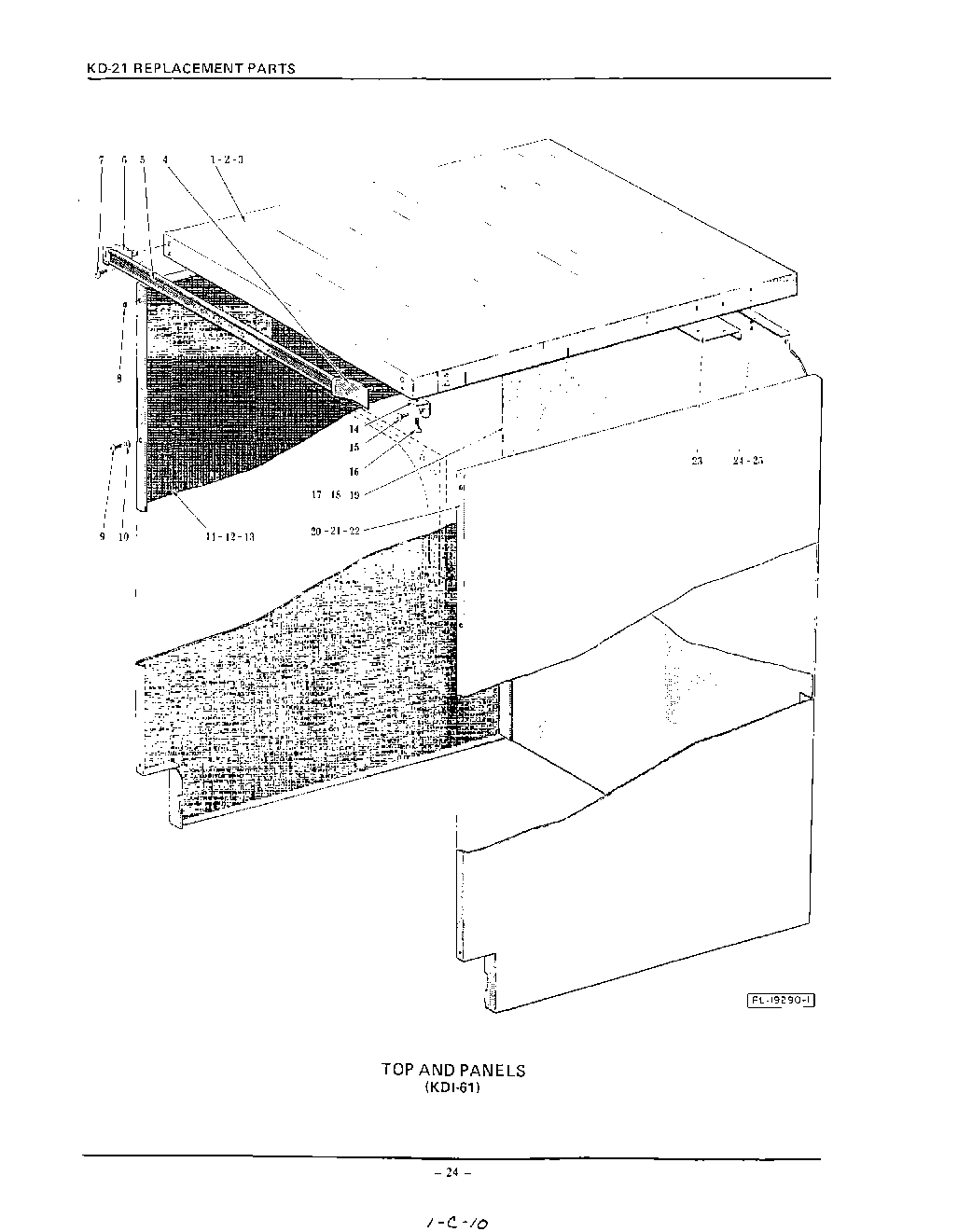

KDC21 14 – TOP AND PANEL KDI-61

Products

Position	Product
1	Wood Top & Insulation Assy. (With Pull Bar) (Incls. items No.3 thru 7)
2	Wood Top & Insulation Assy. (Without Pull Bar) (Incls. item No.3)
3	Wood Screw 10-13 x 3/4 Phil. Rd. Hd
4	End Cap – Guide Bar (R.H.)
5	Bar – Guide
6	End Cap – Guide Bar (L.H.)
7	Wood Screw 10-13 x 3/4 Phil. Oval Hd
8	Lock Washer
11	Side Panel (L.H.) (White)
12	Side Panel (L.H.) (Almond)
13	Side Panel (L.H.) (Harvest Wheat)
14	Bracket – Top Panel Anchor
15	Self-Tapping Screw 10-16 x 1/2 Phil. Truss Hd., Type AB
16	Wood Screw 10-13 x 3/4 Phil. Flat Hd
17	Panel – Rear (White)
18	Panel – Rear (Almond)
19	Panel – Rear (Harvest Wheat)
20	Side Panel (R.H.) (White)
21	Side Panel (R.H.) (Almond)
22	Side Panel (R.H.) (Harvest Wheat)
23	Bracket – Rear Panel Anchor
24	Self-Tapping Screw 10-16 x 5/16 Phil. Truss Hd., Type AB
25	Washer
