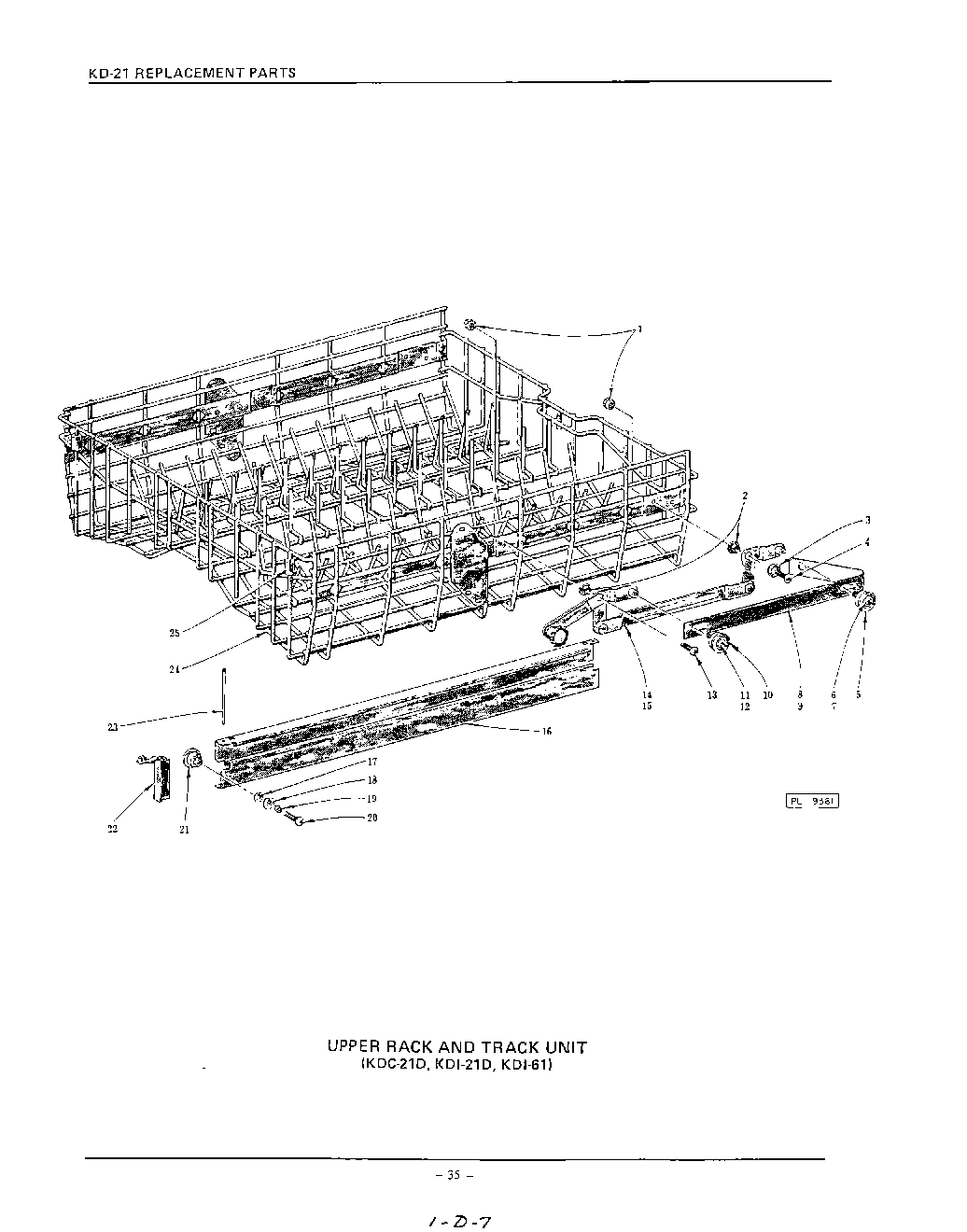

KDC21 21 – KDC-21D, KDI-21D, KDI-61

Products

Position	Product
1	Nut – Roller
2	Bearing & Spacer – Rack Roller
3	Washer – Rack
8	Lift – Receiver (R.H.)
9	Lift – Receiver (L.H.) (Not Shown)
10	Roller – Upper Rack
11	Mach. Screw 8-32 x 1/4 Phil. Pan Hd. “Nylok“
12	Washer
13	Self-Tapping Screw 10-16 x 5/8 Phil. Pan Hd., Type B
14	R.H. Adjustable Rack Track Mech
15	L.H. Adjustable Rack Track Mech. (Not Shown)
16	Track – Rack
17	Washer – Spacing (1/32“ Thk.)
18	Washer – Sealing
19	Washer – No.10 “Nyltite“
20	Mach. Screw – No.10-32 x 7/16“ Phil. Truss Hd
21	Roller & Washer Assy. (Upper Rack) (Incls. item No.19)
22	Bumper – Rack Track
23	Stud – Bumper Retaining
24	Upper Rack Assy. (Incls. item No.25)
24	Upper Rack Assy. (KDC-21D)
25	Bumper – Upper Rack
