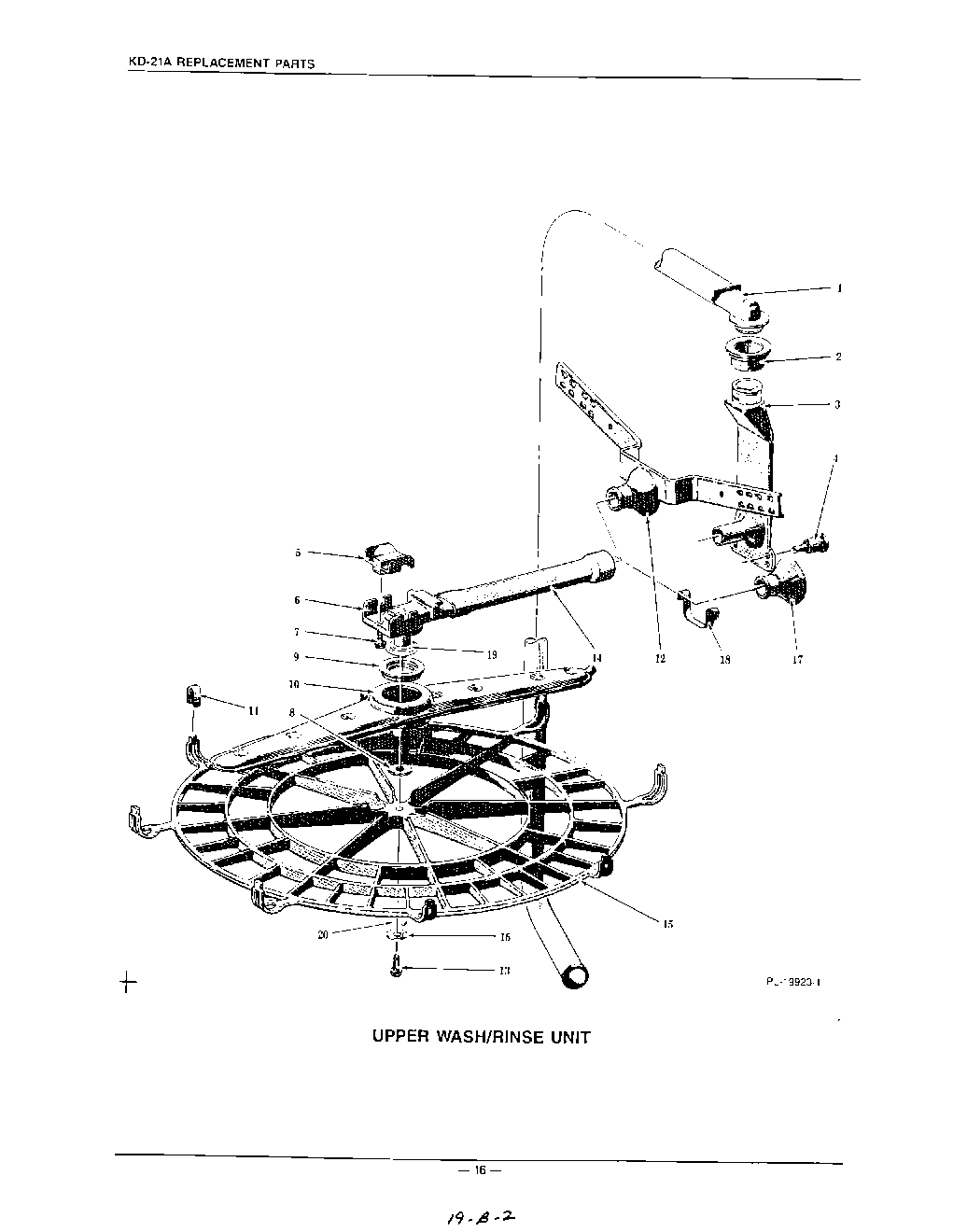

KDC21AD 10 – UPPER WASH/RINSE

Products

Position	Product
1	Tube & Connector Assy
2	Connector - Vertical Conduit
3	Conduit - Vertical
4	279570 Whirlpool Dryer Door Latch Kit
5	Retainer - Manifold
6	Manifold - Upper Arm
8	Bearing - Arm (Bottom)
9	Bearing - Arm (Top)
10	Wash/Rinse Arm Assy
11	Clip - Arm Guard (KDC-61A & KDI-21A)
12	Receiver - Manifold Tube (KDC-61A)
13	Special Screw - Hex Washer Hd
14	Tube (Manifold to Receiver)
15	Guard - Arm (KDC-61A & KDI-21A)
16	Washer
17	Receiver - Manifold (KDB-21, KDC-21A & KDI-21A)
18	Support - Receiver (KDB-21, KDC-21A & KDI-21A)
19	Spacer - Upper Rack (KDB-21 & KDC-21A)
20	Washer (KDB-21 & KDC-21A)
