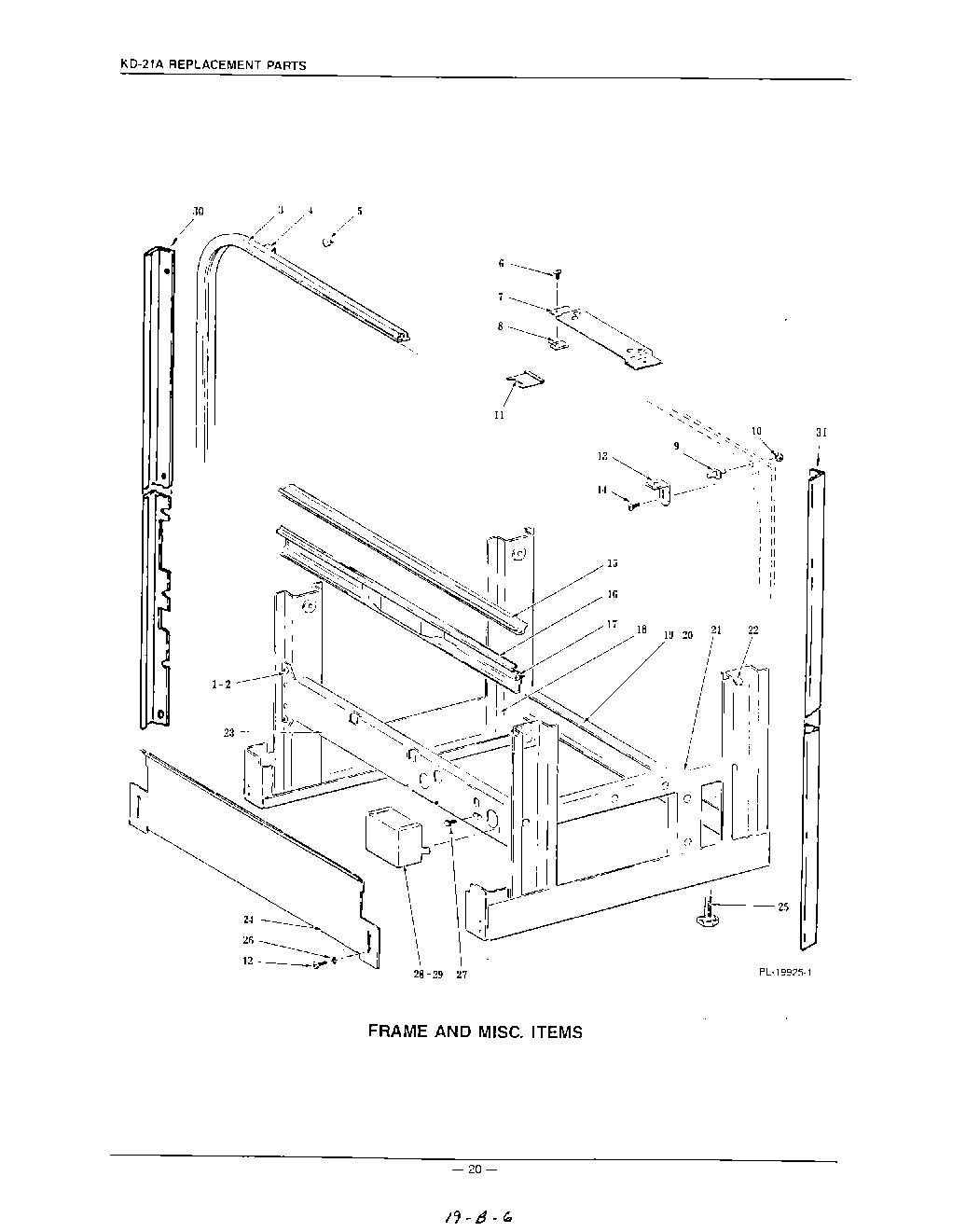

KDC21AD 12 – FRAME AND MISCELLANEOUS

Products

Position	Product
1	Short Frame Assy. (Incls. items 2, 18, 19, 20, 21 & 23)
3	Door Seal Assy. (Incls. item 4)
4	Clip - Seal
5	Bumper - Door
6	Self-Tapping Screw 10-16 x 1/2 Phil. Truss Hd., Type AB
7	Protector - Upper Water Inlet
8	Speed Nut 10, Type U
9	Actuator - Interlock Switch
10	Lock Nut 3/16 Palnut
11	Keeper - Latch
12	Self-Tapping Screw 10-16 x 3/8 Phil. Truss Hd., Type AB
13	Bracket - Top Panel Anchor
14	Self-Tapping Screw 10-16 x 1/2 Phil. Truss Hd., Type AB
15	Channel - Evaporation
16	Support - Evaporation Channel
17	Mach. Screw 10-32 x 1/2 Phil. Truss Hd., CA Pt. ``Taptite``
18	Frame Assy. (L.H.)
19	Cross Frame - Rear
20	Screw & Lock Washer Assy. 10-16 x 5/8 Phil. Truss Hd., Type AB
21	Frame Assy. (R.H.)
22	Self-Tapping Screw 1/4-20 x 1/2 Hex Washer Hd., Type TT
23	Cross Frame - Front
24	Kick Board
25	Foot - Leveling (5/16-18 Thd.)
26	Lock Washer
27	Self-Tapping Screw 10-32 x 3/8 Indented Hex Washer Hd., Type T
28	Enclosure - Elec. Supply
29	Tank & Frame Assy. (Service)
29	Self-Tapping Screw 8-18 x 1/2 Phil. Bin
30	WPL 115903
31	WPL 115904
