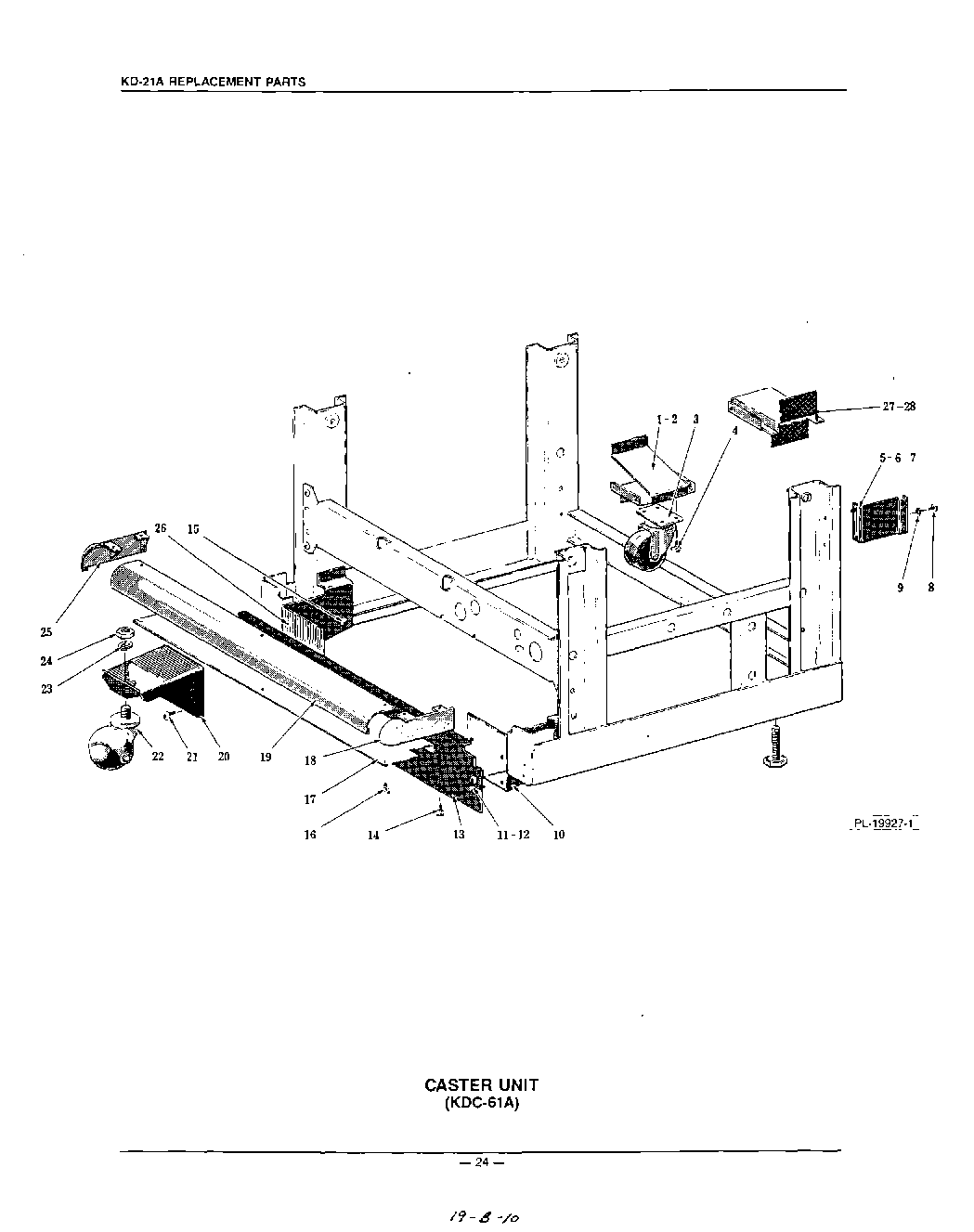

| 1 | Bracket - Rear Caster (L.H.) |
| 3 | Caster - Rear |
| 5 | Bracket - Side Panel Mounting |
| 8 | Self-Tapping Screw 10-16 x 5/16 Phil. Truss Hd., Type AB |
| 10 | Support - Front Caster Bracket (R.H.) |
| 11 | Self-Tapping Screw 10-16 x 3/8 Phil. Truss Hd., Type AB |
| 12 | Lock Washer |
| 13 | Kickboard |
| 14 | Self-Tapping Screw 10-16 x 3/8 Ind. Hex Hd., Type AB |
| 16 | Self-Tapping Screw 6-20 x 3/8 Phil. Rd. Hd., Type AB |
| 17 | Barrier - Front Panel |
| 18 | End Cap - Caster Trim (R.H.) |
| 19 | Trim - Front Caster |
| 20 | Bracket - Front Caster |
| 21 | Self-Tapping Screw 10-16 x 1/2 Phil. Truss Hd., Type AB |
| 22 | Caster - Front |
| 23 | Lock Washer - 3/8`` Light |
| 24 | Jam Nut 3/8-16 Hex Fin |
| 25 | End Cap - Caster Trim (L.H.) |
| 26 | Support - Front Caster Bracket (L.H.) |
| 27 | Bracket - Rear Caster (R.H.) |
| 28 | Self-Tapping Screw 10-16 x 1/2 Phil. Truss Hd., Type AB |
