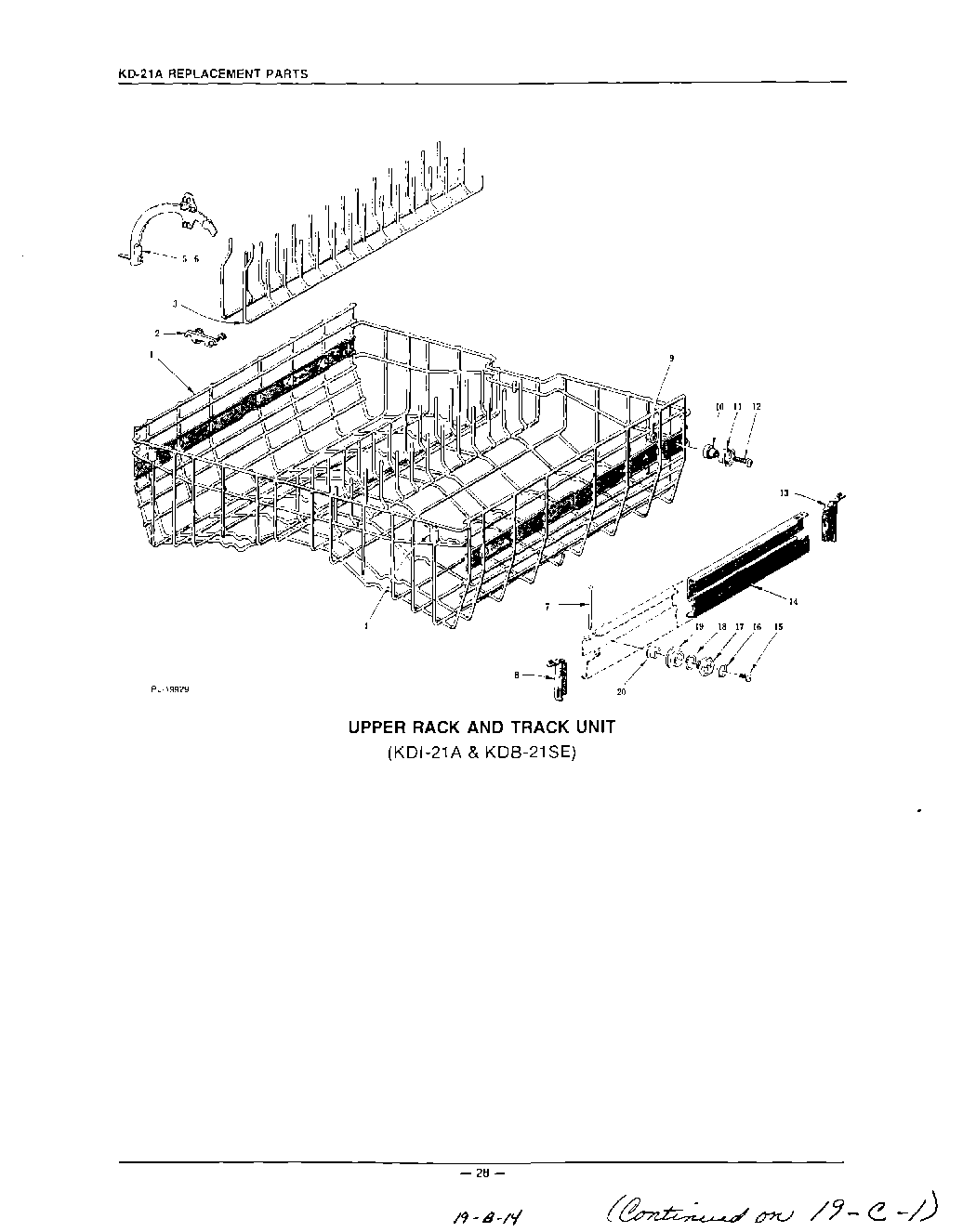

KDC21AD 16 – KDI-21A AND KDB-21SE

Products

Position	Product
1	Upper Rack Assy. (KDB-21SE)
1	Upper Rack Assy. (Incls. items 2 thru 6 & 9 thru 12) / (KDI-21A
2	Clip – Partition Retaining
3	Partition – Upper Rack
4	Bumper – Upper Rack
5	Quadrant – Flexo Divider (L.H.)
6	Quadrant – Flexo Divider (R.H.) (Not Shown)
7	Stud – Bumper Retaining
9	Nut – Roller
10	Bearing & Spacer – Rack Roller
11	Roller – Upper Rack Track
12	Self-Tapping Screw 10-16 x 1 Phil. Pan Hd., Type B
13	Bumper – Rack Track
14	Track – Rack
15	Self-Tapping Screw 10-16 x 3/8 Phil. Pan Hd., Type B
16	Gasket – Rack Stud
17	Stud – Rack Roller
18	Washer – Roller Spacing
19	Roller – Rack Track
20	Bushing – Rack Roller
