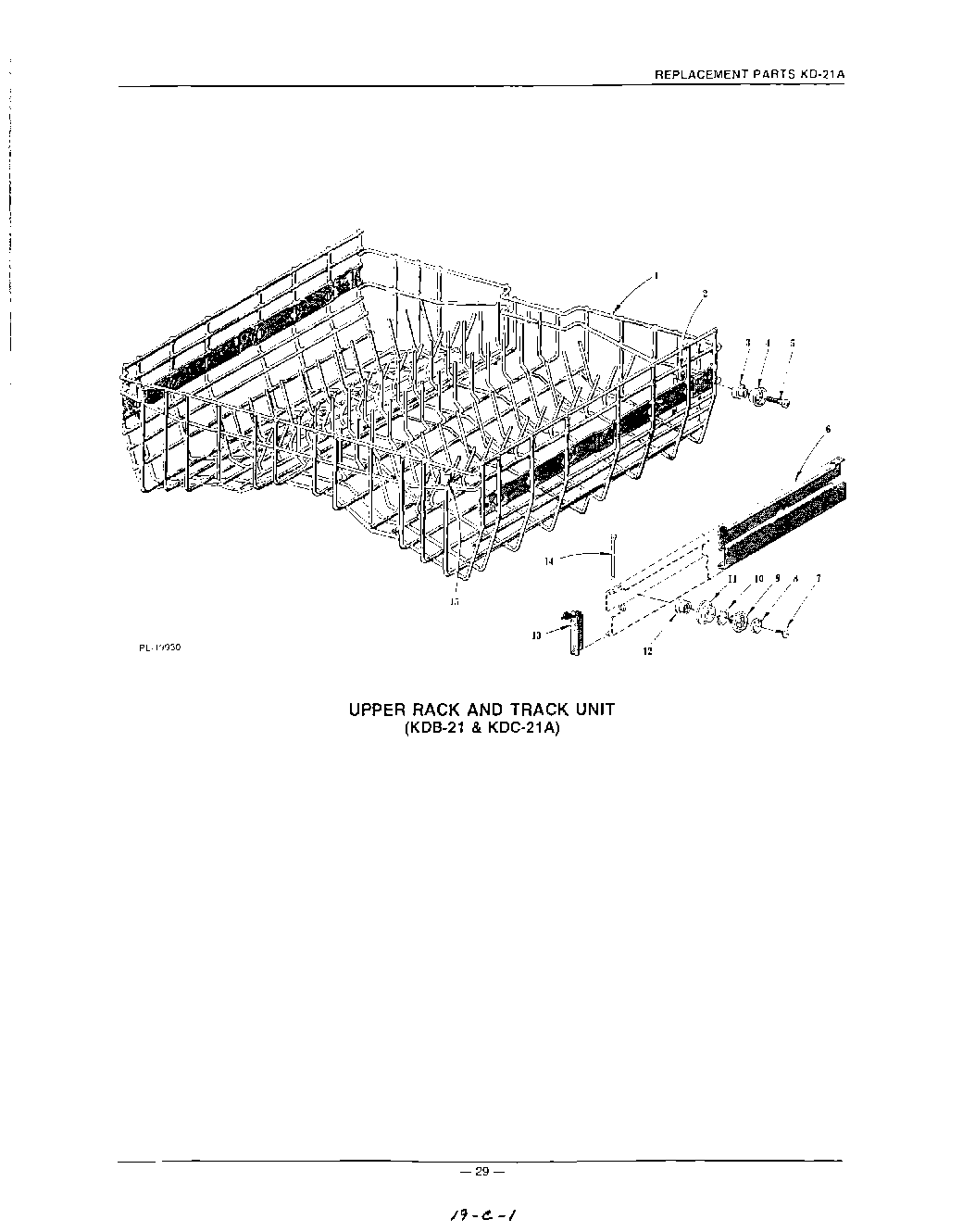

KDC21AD 17 – KDB-21 AND KDC-21A

Products

Position	Product
1	Upper Rack Assy. (Incls. items 2, 3, 4, 5 & 15)
2	Nut – Roller
3	Bearing & Spacer – Rack Roller
4	Roller – Upper Rack Track
5	Self-Tapping Screw 10-16 x 1 Phil. Pan Hd., Type B
6	Track – Rack
7	Self-Tapping Screw 10-16 x 3/8 Phil. Pan Hd., Type B
8	Gasket – Rack Stud
9	Stud – Rack Roller
10	Washer – Roller Spacing
11	Roller – Rack Track
12	Bushing – Rack Roller
13	Bumper – Rack Track
14	Stud – Bumper Retaining
15	Bumper – Upper Rack
