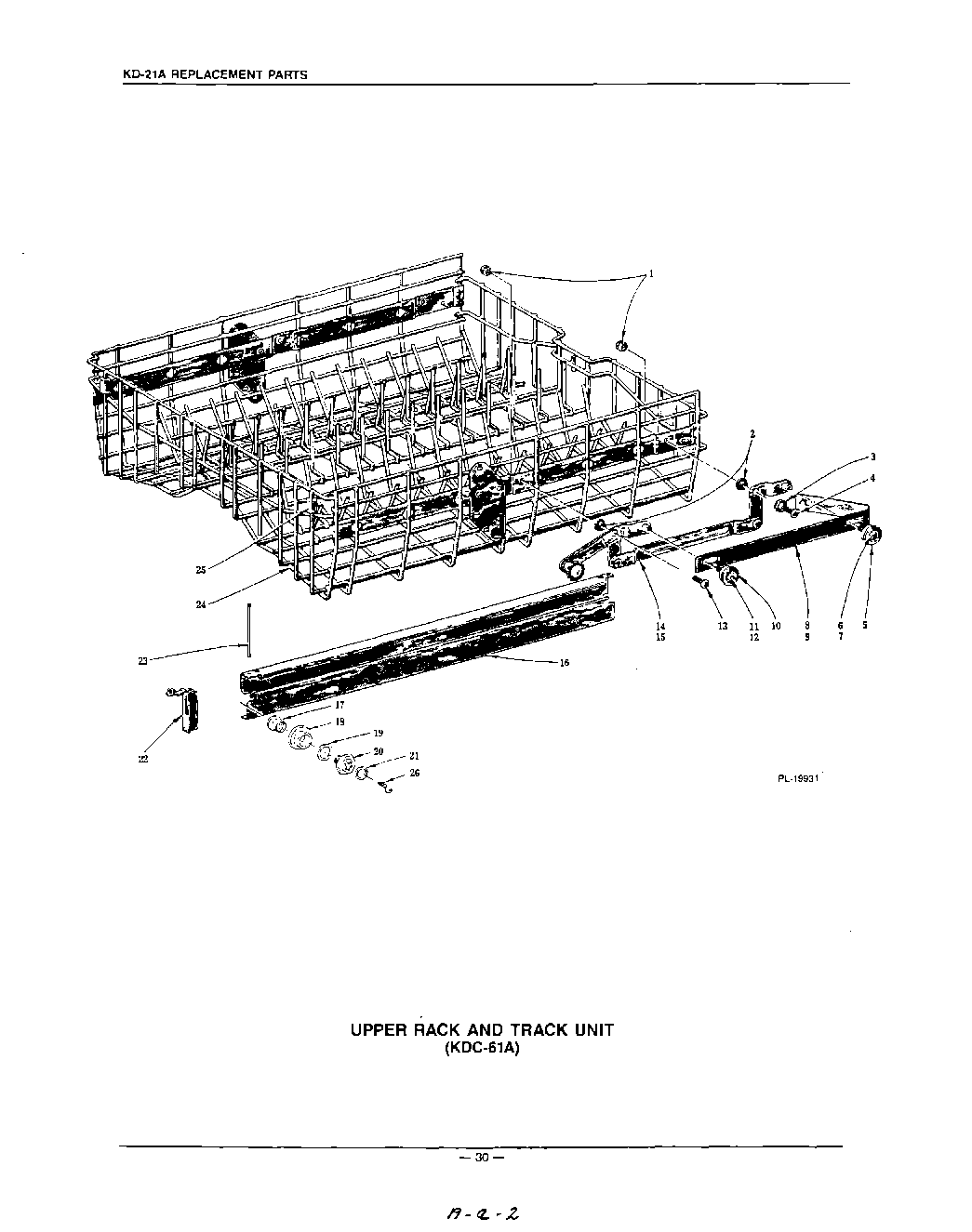

KDC21AD 18 – KDC-61A

Products

Position	Product
1	Nut – Roller
2	Bearing & Spacer – Rack Adjusting
3	Washer – Rack
8	Lift – Receiver (R.H.)
9	Lift – Receiver (L.H.) (Not Shown)
10	Roller – Upper Rack
11	Mach. Screw 8-32 x 1/4 Phil. Pan Hd. “Nylok“
12	Washer
13	Self-Tapping Screw 10-16 x 5/8 Phil. Pan Hd., Type B
14	Adjustable Rack Track Mech. (R.H.)
15	Adjustable Rack Track Mech. (L.H.) (Not Shown)
16	Track – Rack
17	Bushing – Rack Roller
18	Roller – Rack Track
19	Washer – Roller Spacing
20	Stud – Rack Roller
21	Gasket – Rack Stud
22	Bumper – Rack Track
23	Stud – Bumper Retaining
24	Upper Rack Assy. (Incls. item 25) / (KDC-61A
24	Upper Rack Assy. (KDC-21AD & KDI-21AD)
25	Bumper – Upper Rack
26	Self-Tapping Screw 10-16 x 3/8 Phil. Pan Hd., Type B
