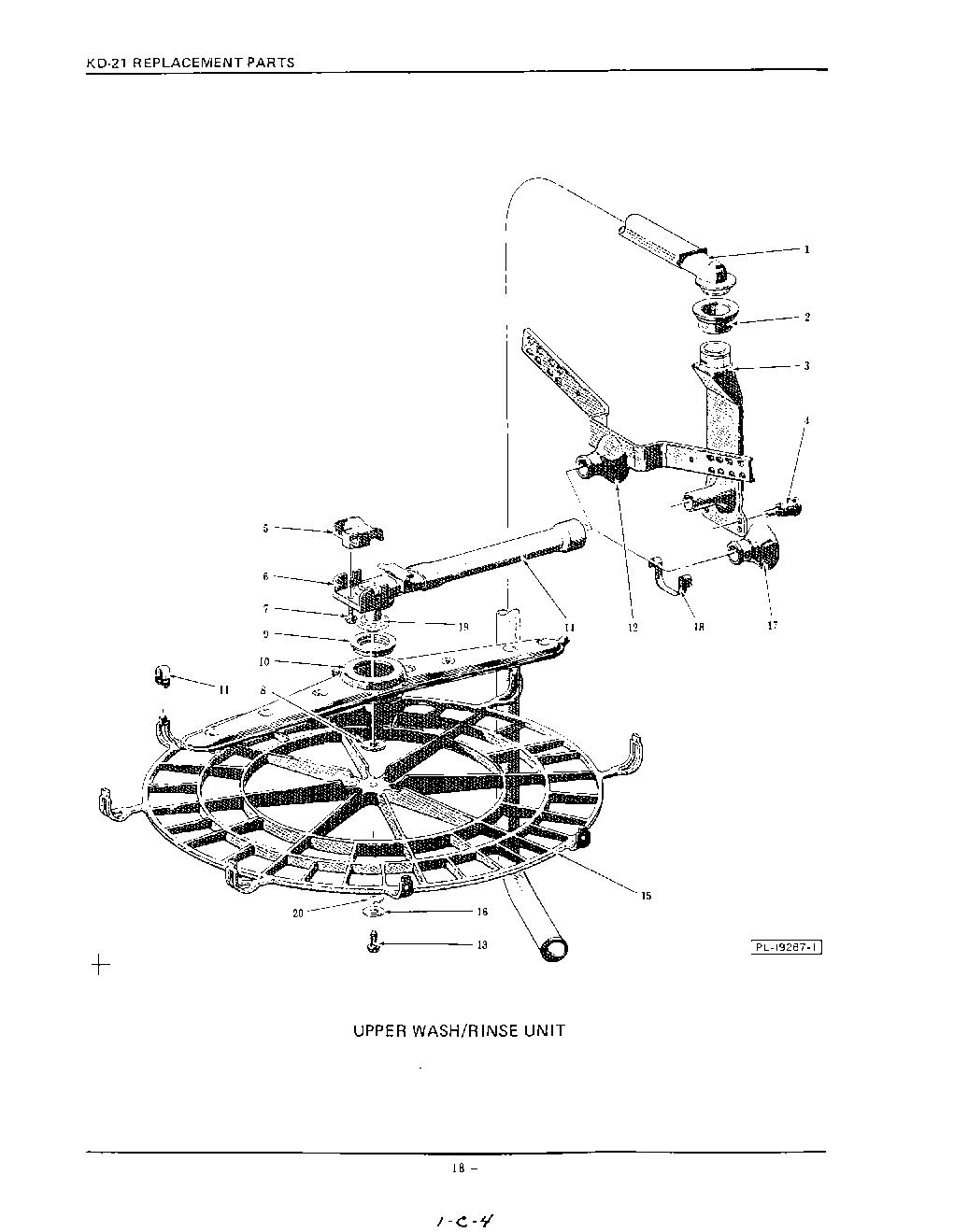

KDC21D 11 – UPPER WASH/RINSE

Products

Position	Product
1	Tube & Connector Assy
2	Connector - Vertical Conduit
3	Conduit - Vertical
4	Retainer - Conduit
5	Retainer - Manifold
6	Manifold - Upper Arm
8	Bearing - Arm (Bottom)
9	Bearing - Arm (Top)
10	Wash/Rinse Arm Assy
11	Clip - Arm Guard
12	Receiver - Manifold Tube
13	Special Screw - Hex Washer Hd
14	Tube (Manifold to Receiver)
15	Guard - Arm (KDS-21, KDI-61, KDI-21D, KDC-21D)
16	Washer
17	Receiver - Manifold
18	Support - Receiver
19	Spacer - Upper Rack (KDI-21, KDI-21B, KDB-21B, KDA-21 & KDC-21)
20	Washer (KDB-21 & KDC-21A)
