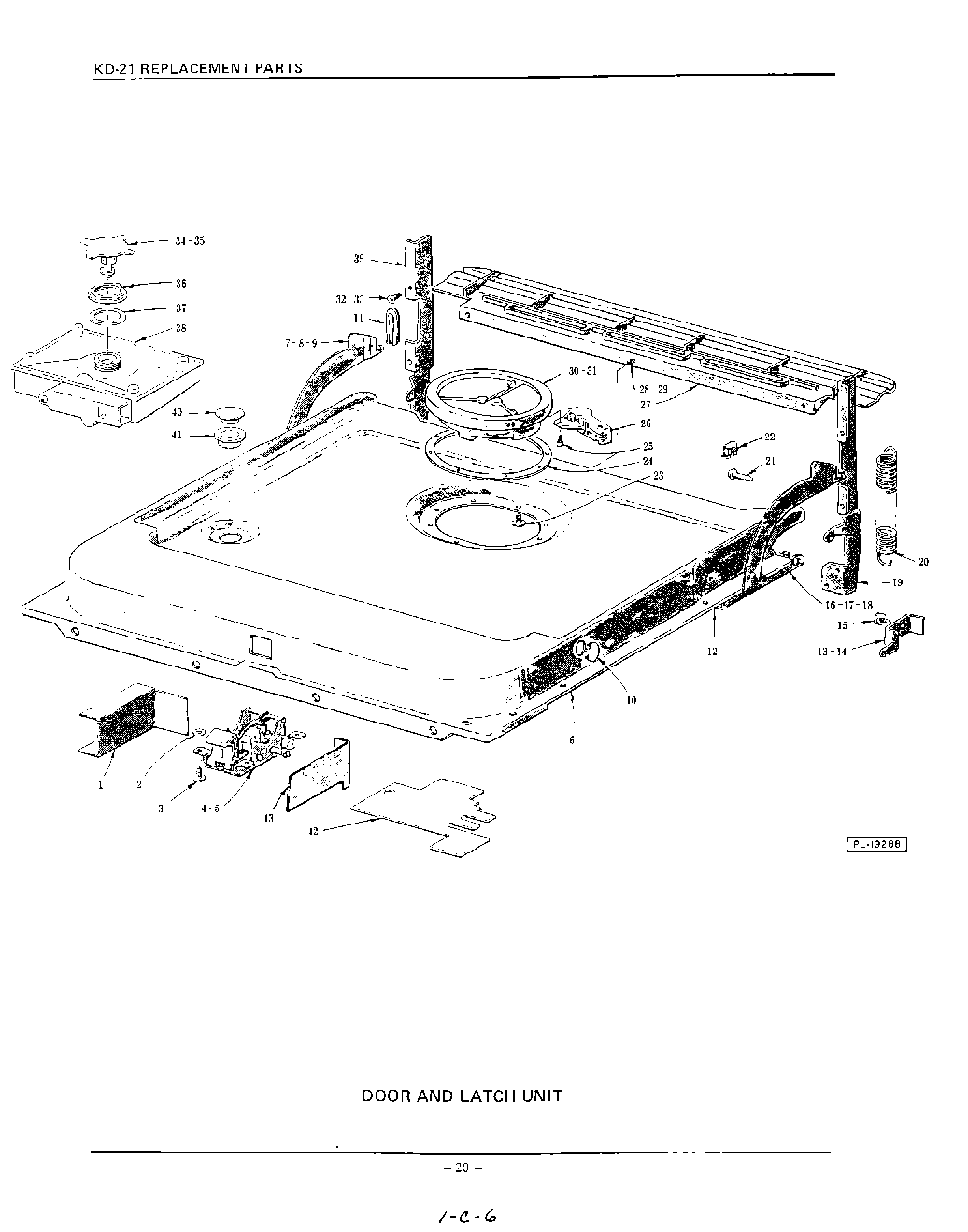

KDC21D 12 – DOOR AND LATCH

Products

Position	Product
	WPL 242649
1	Cover - Wiring Harness
2	Washer
3	Self-Tapping Screw 10-16 x 1/2 Phil. Truss Hd., Type AB
4	Latch Mechanism Assy. (KDB-21B & KDI-21B)
5	Latch Mechanism Assy. (KDA-21, KDC-21, KDI-21, KDS-21, KDI-61, KDC-21D & KDI-21D)
6	Inner Door Assy
9	Bracket - L.H. Door Stop
10	Plug Button
11	Bearing - Door Stop Insert
12	Vapor Shield Kit
13	Bracket - R.H. Spring Mounting
14	Bracket - L.H. Spring Mounting (Not Shown)
15	Screw & Washer Assy. - No.10-32 x 3/8`` Phil. Hex Hd., Type AB
16	Bracket - R.H. Door Stop
17	Mach. Screw 10-32 x 5/16 Phil. Truss Hd
19	Bracket - R.H. Hinge
20	Spring - Door Co-Balance
21	Pin - Hinge
22	Clip - Hinge Pin Retaining
23	Screw & Washer Assy
24	Gasket - Detergent Dispenser
25	WPL SD1311
26	Bimetal Assy
27	Baffle - Lower
28	Self-Tapping Screw 8-18 x 1/2 Phil. Truss Hd., Type AB
29	Cap
30	Detergent Dispenser & Gasket Assy. (115 V., 60 Hz.) (Incls. item No.24) (KDA-21 & KDB-21B)
31	xDetergent Dispenser & Gasket Assy. (115 V., 60 Hz.) (Incls. item No.24
32	Washer (Rubber)
33	Mach. Screw - No.10-32 x 1/2`` Phil. Truss Hd., CA Pt. ``Taptite``
34	WPL B241163
35	WPL B241101
36	Nut (Fill Air Gap)
37	Gasket - Rubber (White)
38	WPL D241137
39	WPL C1159713
40	WPL C240162
41	WPL C240163
42	WPL C242528
43	WPL 243154
43	WPL C240377
