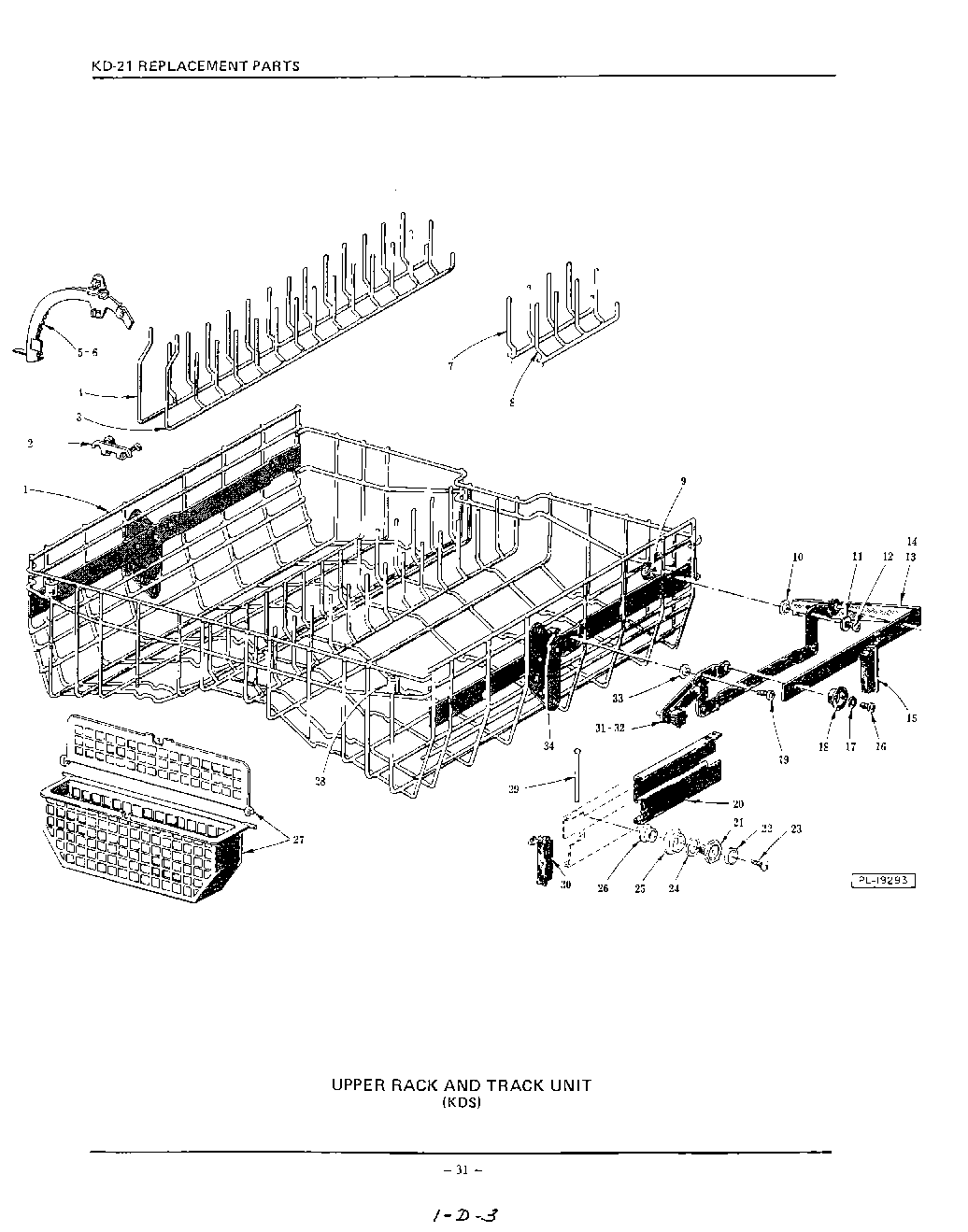

| 1 | Upper Rack Assy. (Incls. items No.2 thru 8 & 28) |
| 2 | Clip - Partition Retaining |
| 5 | Quadrant - Flexo Divider (L.H.) |
| 6 | Quadrant - Flexo Divider (R.H.) (Not Shown) |
| 7 | Partition - Upper Rack (R.H., Inside) |
| 8 | Partition - Upper Rack (R.H., Outside) |
| 11 | Washer - Rack |
| 13 | Lift - Receiver (R.H.) |
| 14 | Lift - Receiver (L.H.) (Not Shown) |
| 16 | Mach. Screw 8-32 x 1/4 Phil. Pan Hd. ``Nylok`` |
| 17 | Washer |
| 18 | Roller - Upper Rack |
| 19 | Self-Tapping Screw 10-16 x 5/8 Phil. Pan Hd., Type B |
| 20 | Track - Rack |
| 21 | Stud - Rack Roller |
| 22 | Gasket - Rack Stud |
| 23 | Self-Tapping Screw 10-16 x 3/8 Phil. Pan Hd., Type B |
| 24 | Washer - Roller Spacing |
| 25 | Roller - Rack Track |
| 26 | Bushing - Rack Track |
| 27 | Small Items Basket & Lid Assy |
| 28 | Bumper - Upper Rack |
| 29 | Stud - Bumper Retaining |
| 30 | Bumper - Rack Track |
| 31 | R.H. Adjustable Rack Track Mech |
| 32 | L.H. Adjustable Rack Track Mech. (Not Shown) |
| 33 | Bearing & Spacer - Rack Roller |
| 34 | Nut - Roller |
