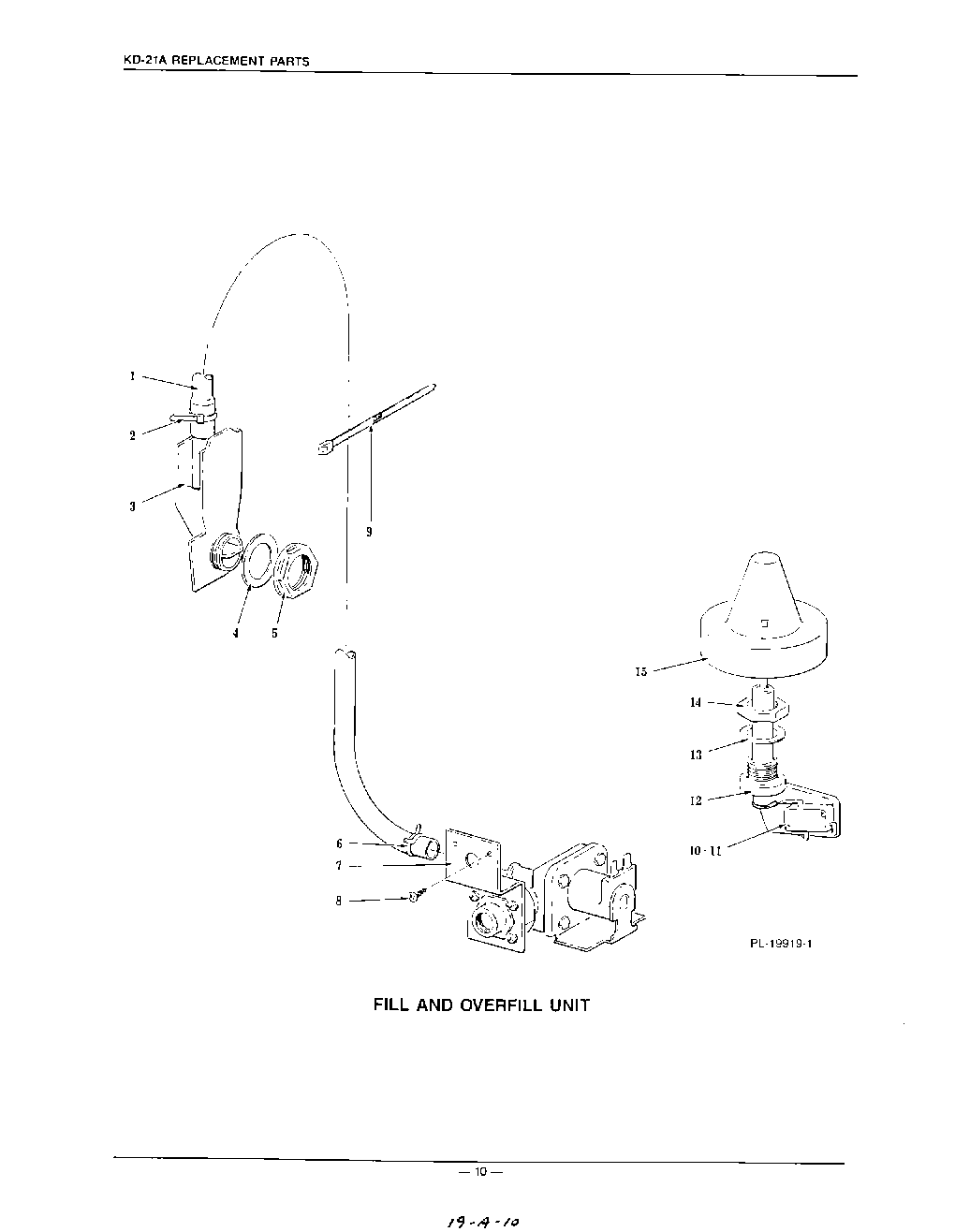

KDC61A 06 – FILL AND OVERFILL

Products

Position	Product
1	Hose – Flexible (Fill Valve to Air Gap)
2	Strap – Retaining (Cord)
3	Air Gap – Fill Assy. (Incls. items 1 & 2)
4	Gasket – Rubber
5	Nut (Fill Air Gap)
6	Clamp – Hose
7	CANNING, UNIT KIT
8	Self-Tapping Screw 10-16 x 1/2 Phil. Truss Hd., Type AB
9	Wire Tie (8“) (Fill Hose)
10	Self-Tapping Screw 4-40 x 3/4 Phil. Pan Hd., Type F
11	Switch – Overfill Control (115 V., 60 Hz.)
12	Standpipe – Overfill
13	WP8531743 Whirlpool Dishwasher Float Switch Base Gasket
14	Nut – Standpipe
15	Float & Retainer Assy
