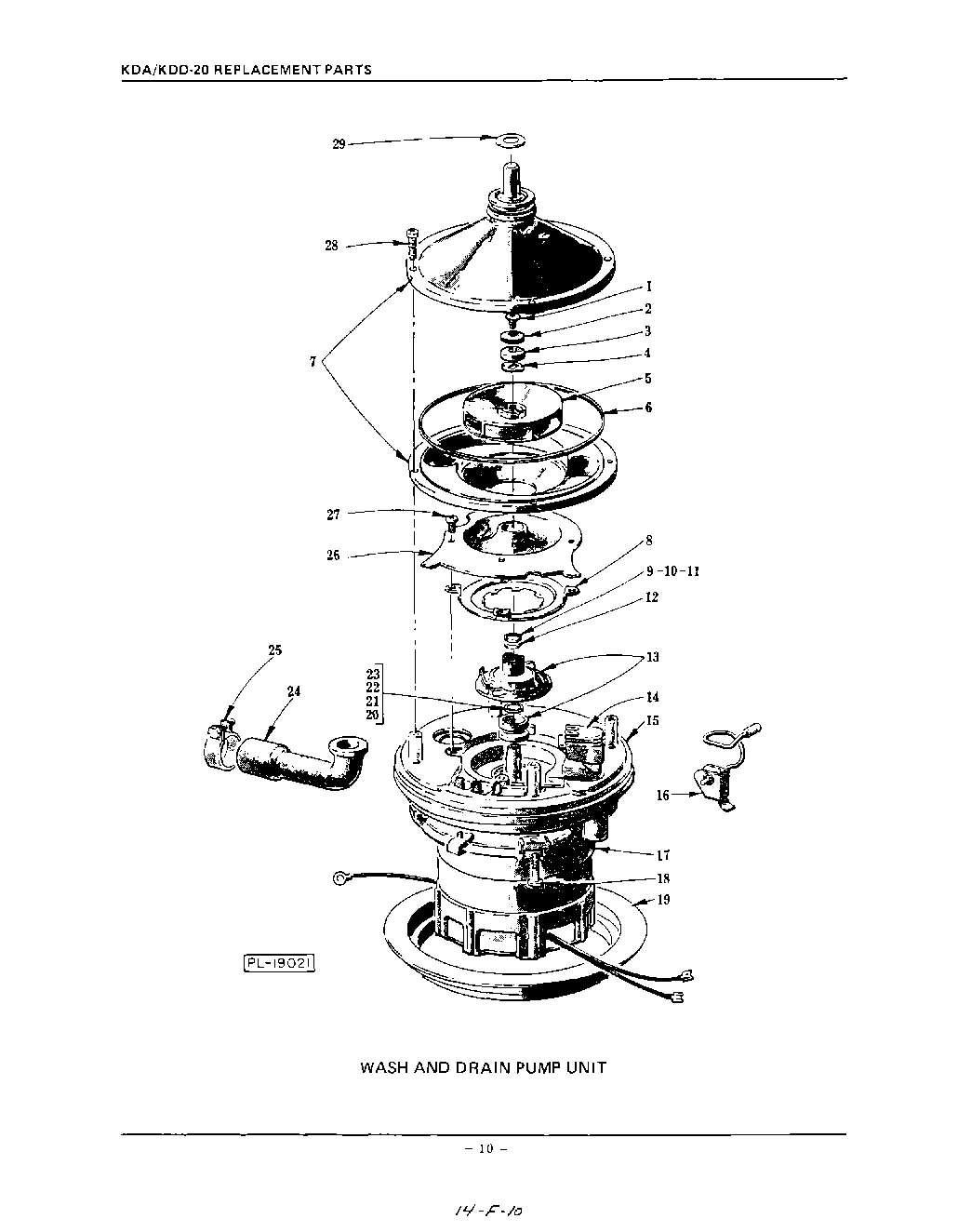

KDD20 07 – WASH AND DRAIN PUMP

Products

Position	Product
1	Mach. Screw - No.10-32 x 7/16`` Phil. Truss Hd
2	Washer - Spring (Impeller)
3	Cap - Washer
4	Washer - Key
5	Impeller - Wash Pump
6	Gasket - Ring (Wash Pump)
7	Support & Pump Body Kit (Incls. items No.6, 9, 10, 11, 28 & 29)
8	Top - Drain Pump
9	Washer - Shim (.005`` Thk.)
10	Washer - Shim (.015`` Thk.)
11	Washer - Shim (.030`` Thk.)
12	``O`` Ring
13	Shaft Seal & Drain Impeller Assy. (Incls. items No.2, 12 & E-240150)
14	Channel - Drain (Top Half)
15	Plate - Motor Mounting
16	Motor Clamp Assy
17	Motor, Seal & Gasket Assy. (115 V., 50/60 Hz.) (Incls. items No.9, 10, 11, 13, 19, 20, 21 & 22)
18	Mach. Screw 1/4-20 x 1 Pan Hd
19	Pump Seal
20	Washer - Shim (.005`` Thk.)
21	Washer - Shim (.015`` Thk.)
22	Washer - Shim (.030`` Thk.)
23	Washer - Shim (.048`` Thk.)
24	Connector - Overhead
25	Clamp - Hose (1.468`` Dia.)
26	Cover - Inlet
27	Mach. Screw 8-32 x 1/2 Phil. Pan Hd
28	Mach. Screw 10-24 x 1 Phil. Pan Hd
29	Washer - Wear
