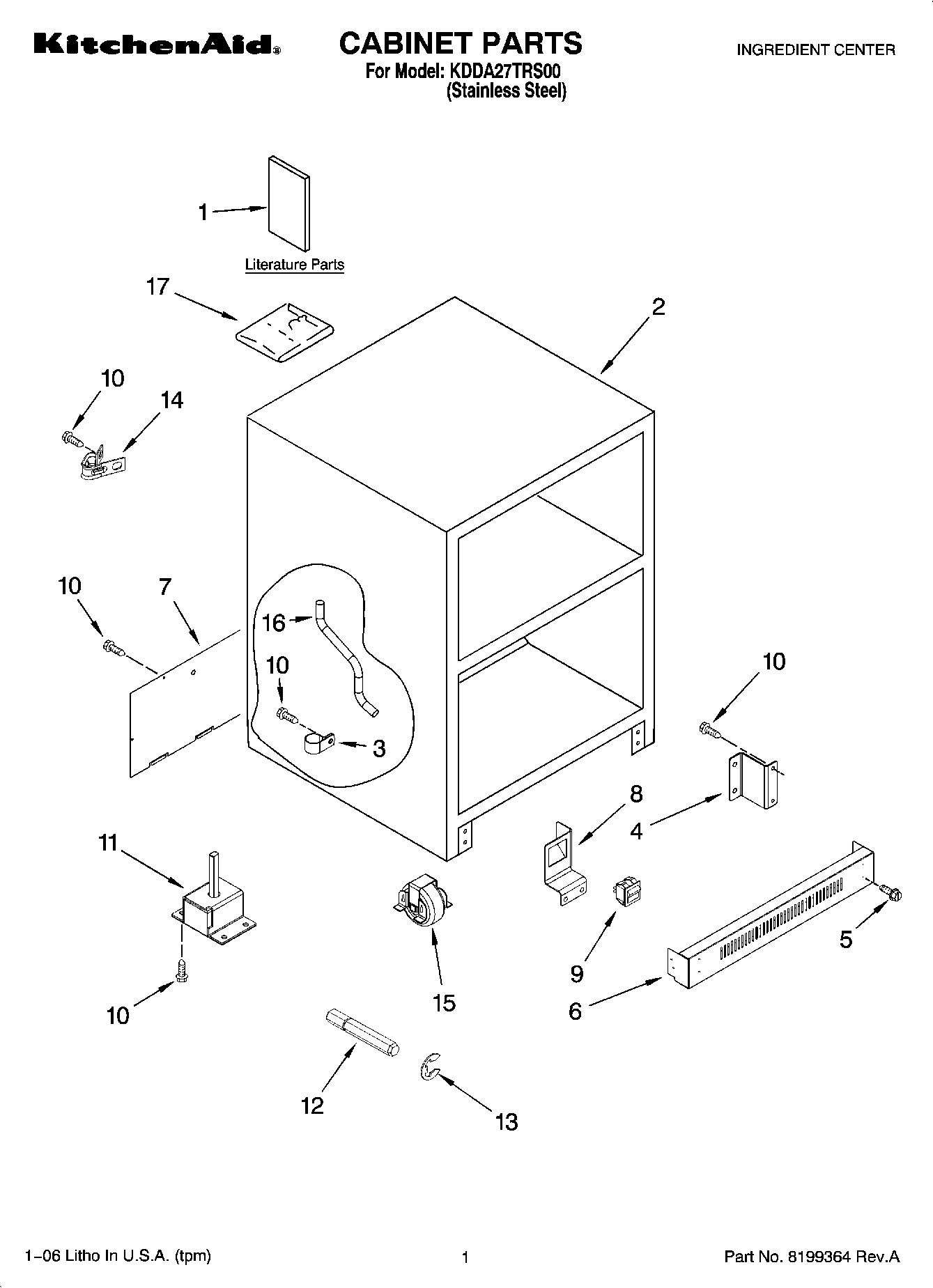

KDDA27TRS00 01 – CABINET PARTS

Products

Position	Product
1	Use & Care Guide
1	Energy Guide
1	Temperature Guide
1	Service & Wiring Sheet
1	Installation Instructions
2	Cabinet (Not A Servicable Part)
3	Clamp, Drain Tube
4	Bracket, Grille
5	W10851443 Whirlpool Refrigerator Screw
6	GRILLE
7	Cover, Unit
8	Bracket, Switch
9	WP2266802 Whirlpool Refrigerator Switch
10	WP489478 Whirlpool Refrigerator Screw
11	2005032 Whirlpool Refrigerator Leveler
12	Rod, Leveler (Front (2))
12	Rod, Leveler (Rear (2))
13	2006841 Whirlpool Ring
14	549193 Whirlpool Refrigerator Power Clamp
15	WPW10138054 Whirlpool Refrigerator Cabinet Roller
16	Tube, Drain
17	Kit, Mounting (4 brackets & 16 screws)
