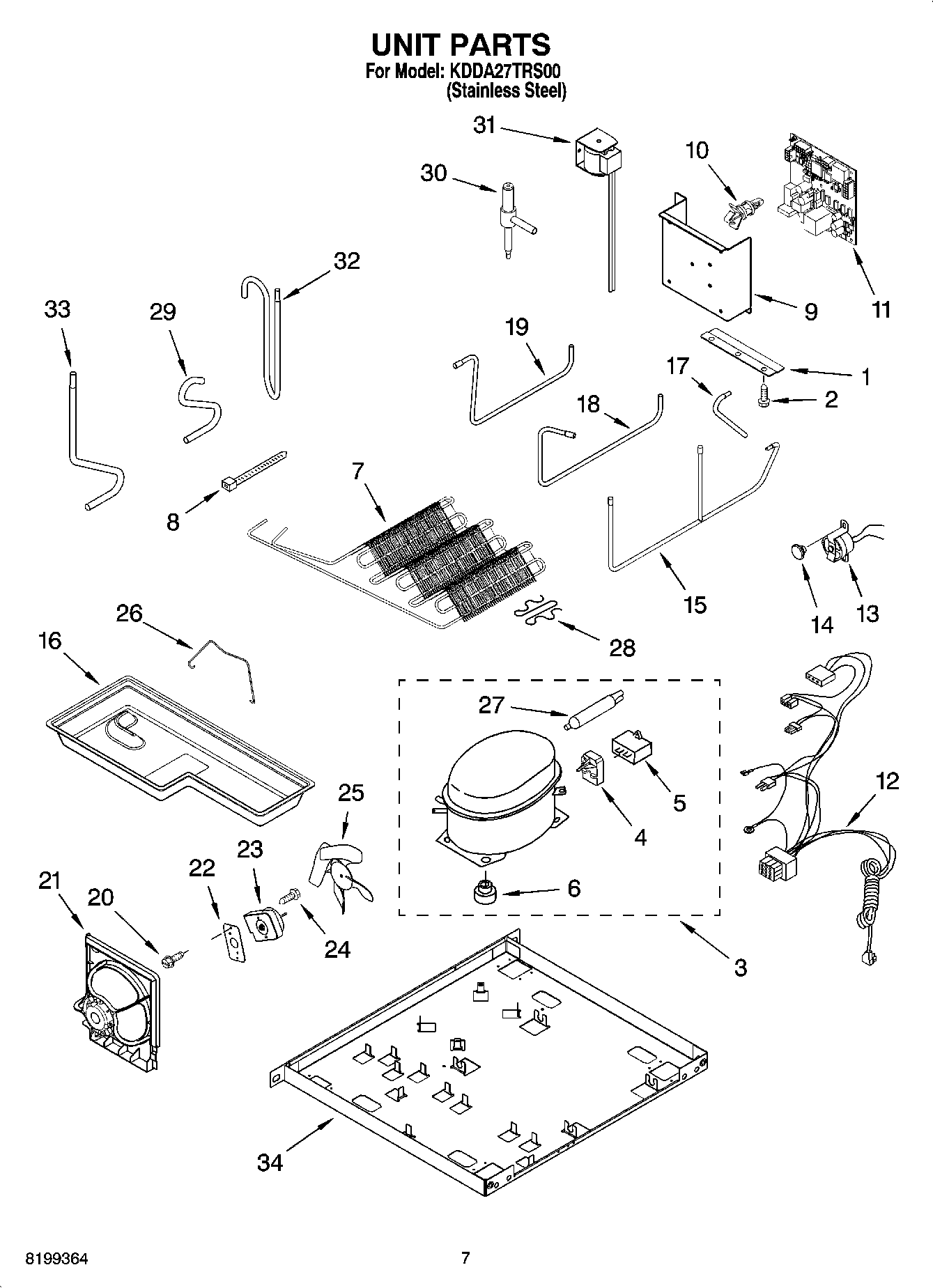

KDDA27TRS00 04 – UNIT PARTS

Products

Position	Product
1	Bracket, Control Box
2	WP489478 Whirlpool Refrigerator Screw
3	COMPRESSOR
4	Start-Device Combination
5	WPW10662129 Whirlpool Refrigerator Run Capacitor
6	WP2163786 Whirlpool Refrigerator Grommet
7	CONDENSER
8	WPW10339879 Whirlpool Wire Tie
9	Box, Control Board
10	2223800 Whirlpool Refrigerator Spacer
11	Control Board (Main)
12	Harness, Unit (Includes 13)
13	Bi-Metal
14	Plug, Button
15	Tube, Suction
16	Tray, Evaporator
17	Tube, Process
18	Tube, Drier to Lower Valve
19	Tube, Drier to Upper Valve
20	WP8281196 Whirlpool Screw
21	Fan, Motor Bracket
22	Plate
23	W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
24	8281197 Whirlpool Refrigerator Screw
25	W11458267 Whirlpool Refrigerator Fan Blade
26	Clip, Retaining
27	Drier
28	Clip, Compressor (4)
29	Tube, Discharge
30	Valve, Solenoid (2)
31	Coil, Solenoid (2)
32	Tube, Heat Loop to Drier
33	Tube, Condenser to Heat Loop
34	Baseplate
34	REFRIGERANT CHARGE 3.25 oz. (R-134A)
