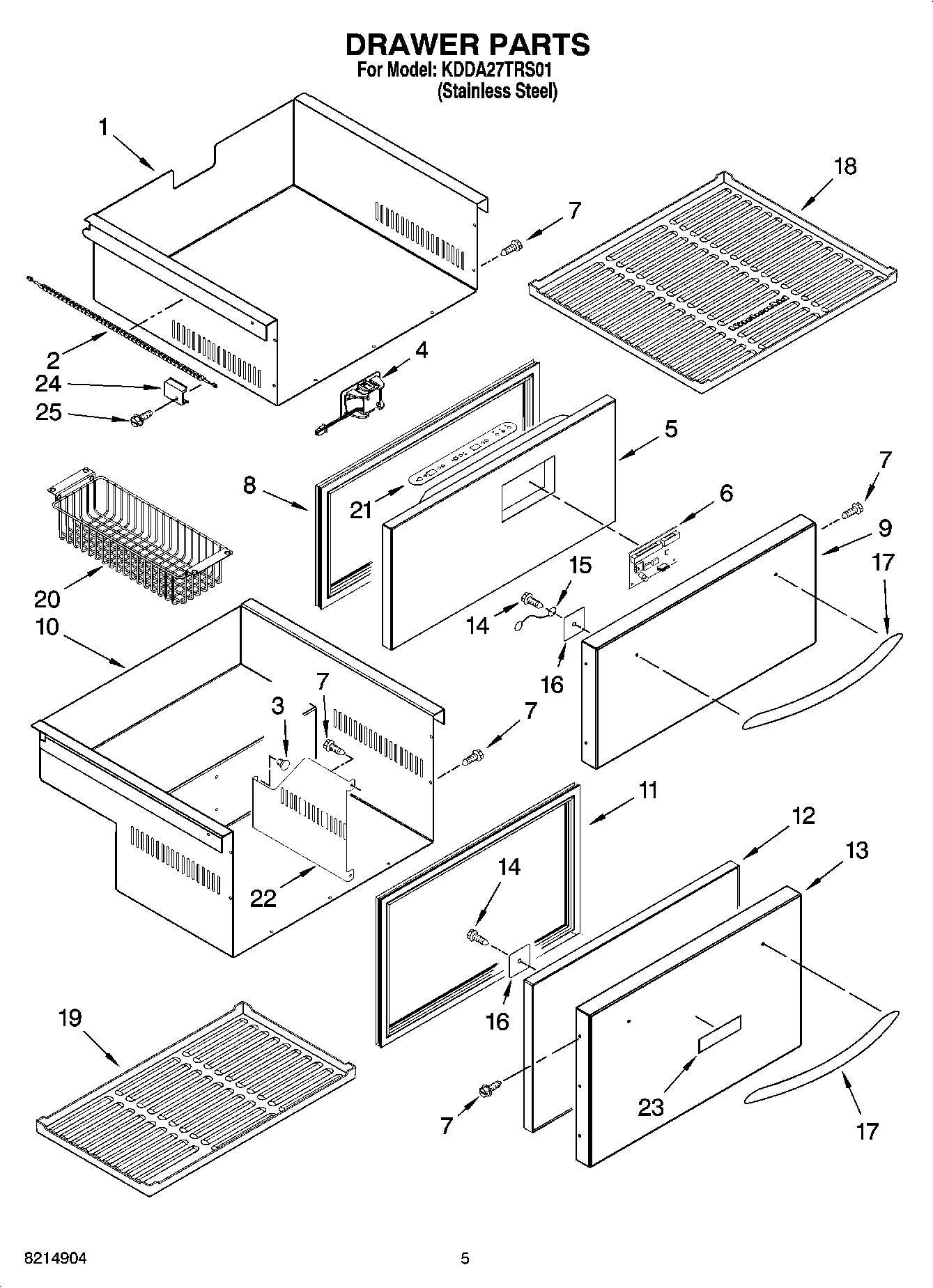

KDDA27TRS01 03 – DRAWER PARTS

KDDA27TRS01 03 – DRAWER PARTS

Written by

in

KDDA27TRS01 03 – DRAWER PARTS

Products

Position	Product
1	Drawer, Upper
2	Harness, Wiring (Drawer)
3	Rivet, Plastic
4	Light Assembly (2)
5	Drawer Front (Upper)
6	Control, Electronic
8	Gasket, Upper Drawer
9	Skin, Door (Upper)
10	Drawer, Lower
11	Gasket, Lower Drawer
12	Drawer Front (Lower)
13	Skin, Door (Lower)
14	Screw
15	Wire, Ground
16	Plate, Backing
17	HANDLE
18	Mat, Upper Drawer
19	Mat, Lower Drawer
20	Basket (2)
21	OVERLAY
22	DIVIDER
23	Nameplate
24	Cover, Connector
25	8534081 Whirlpool Screw Assembly
