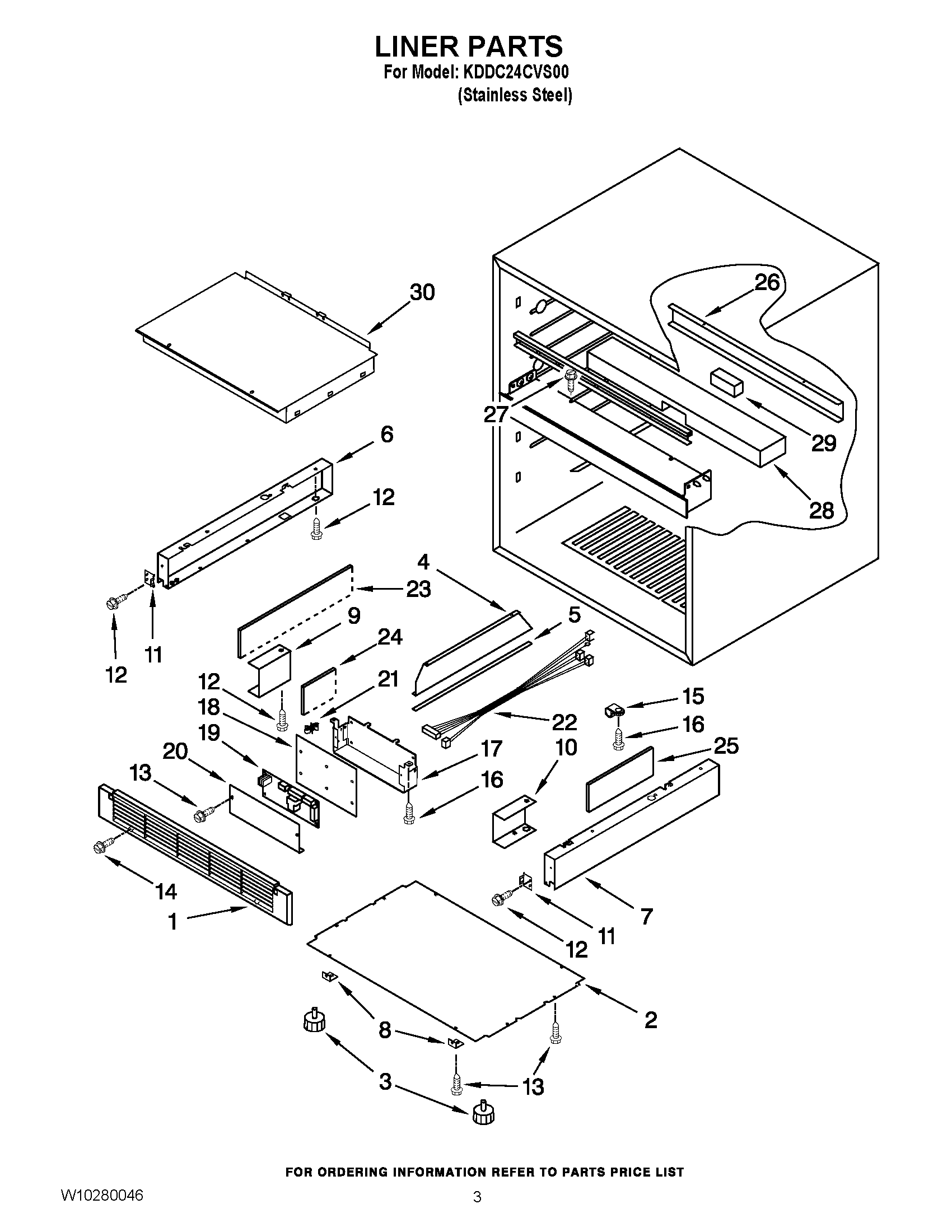

KDDC24CVS00 02 – LINER PARTS

Products

Position	Product
1	W10281494 Whirlpool Refrigerator Grille
2	Plate, Bottom
3	W11106296 Whirlpool Refrigerator Leveler
4	AUXILIARY PLATE
5	4344823 Whirlpool Refrigerator Seal
6	Frame, Side (Left Side)
7	Frame, Side (Right Side)
8	4344771 Whirlpool Refrigerator Clip
9	4344820 Whirlpool Refrigerator Support
10	4344821 Whirlpool Refrigerator Support
11	W10204640 Whirlpool Refrigerator Clip
12	BOLT
13	W11380570 Whirlpool Microwave Screw
14	4344826 Whirlpool Refrigerator Screw
15	7111P002-60 Whirlpool Clamp
16	SCREW
17	Main PCB Box
18	PCB Box Film
19	MAIN PCB
20	PCB Box Cover
21	W10204659 Whirlpool Refrigerator Spacer
22	W10281498 Whirlpool Refrigerator Wire Harness
23	Acoustic Foam B
24	Acoustic Foam C
25	Acoustic Foam A
26	Mullion Cover
27	SCREW
28	Mullion Insulation
29	W10205072 Whirlpool Refrigerator Insulation
30	MULLION BODY ASSY
