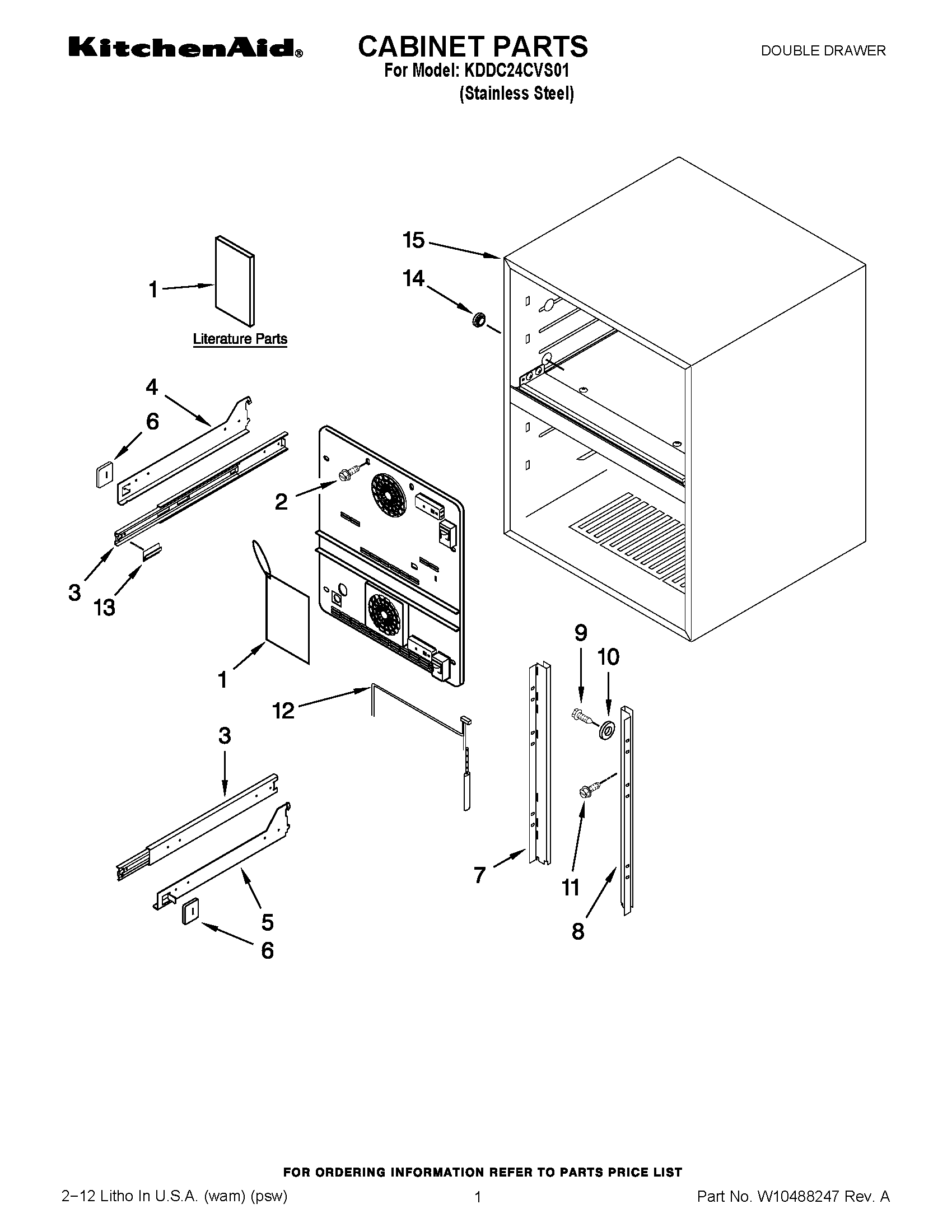

KDDC24CVS01 01 – CABINET PARTS

Products

PositionProduct
1ENERGY GUIDE
1Use & Care Guide
1Installation Instructions
1SERVICE & WIRING SHEET
24344793 Whirlpool Screw
3WPW10233777 Whirlpool Refrigerator Slide
4SUPPORT SHELF, LH (BOTTOM DRAWER)
4Support Shelf, LH
5SUPPORT SHELF, RH (BOTTOM DRAWER)
5Support Shelf, RH
6SUPPORT RUBBER A
7LADDER, LH
8W10304194 Whirlpool Refrigerator Wire Harness
9Screw
10Washer
11SCREW W/WASHER
12W10281315 Whirlpool Refrigerator Bi-Metal
13LEAD WIRE SUPPORT
14Liner Bushing
15CABINET (NOT A SERVICEABLE PART)
