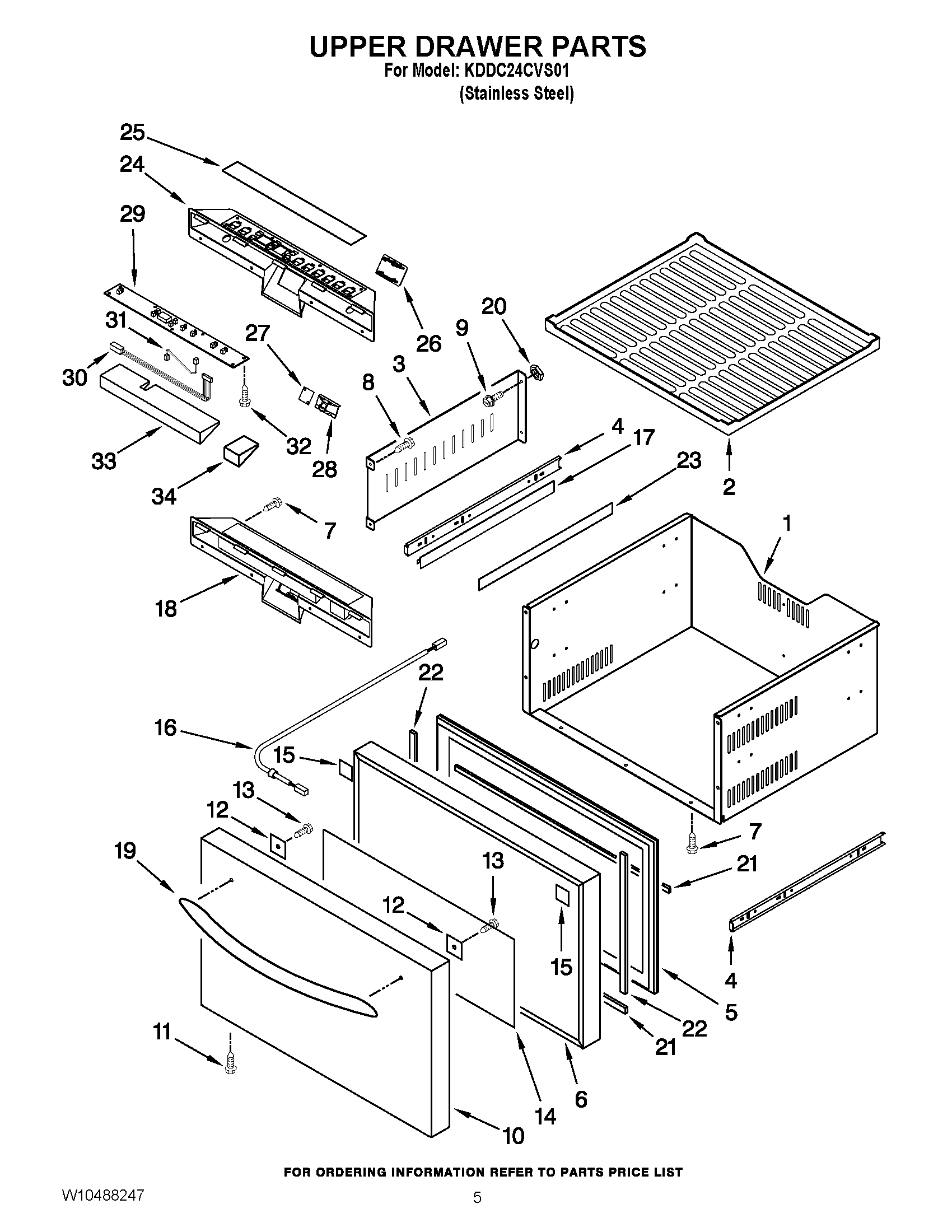

KDDC24CVS01 03 – UPPER DRAWER PARTS

KDDC24CVS01 03 – UPPER DRAWER PARTS

Written by

in

KDDC24CVS01 03 – UPPER DRAWER PARTS

Products

PositionProduct
1Drawer Box Assy.
2Top Mat
3Drawer Partition
4WPW10233777 Whirlpool Refrigerator Slide
5WPW10204700 Whirlpool Refrigerator Gasket
6TOP DOOR ASSY.
7W10204808 Whirlpool Refrigerator Screw
8SCREW
9W10204810 Whirlpool Screw
10Top Wrap
11W10837731 Whirlpool Screw Assembly
12Plate
13W10859467 Whirlpool Refrigerator Screw
14W10204867 Whirlpool Front Drawer
15W10204868 Whirlpool Front Drawer
16W10488357 Whirlpool Refrigerator Wire Harness
17LEAD WIRE SUPPORT
18CONTROL PANEL ASSY
19Door Handle
20W10204920 Whirlpool Refrigerator Nut
21W10204889 Whirlpool Refrigerator Gasket
22W10204897 Whirlpool Refrigerator Gasket
23W10205081 Whirlpool Refrigerator Tape
24CONTROL PANEL
25LABEL, PANEL
26W10204929 Whirlpool Cover
27W10204930 Whirlpool Refrigerator Light Lens
28W10204931 Whirlpool Socket Assembly
30W10204933 Whirlpool Refrigerator Wire Harness
31W10304194 Whirlpool Refrigerator Wire Harness
32Screw
33Panel Insulation
34Panel Insulation B
