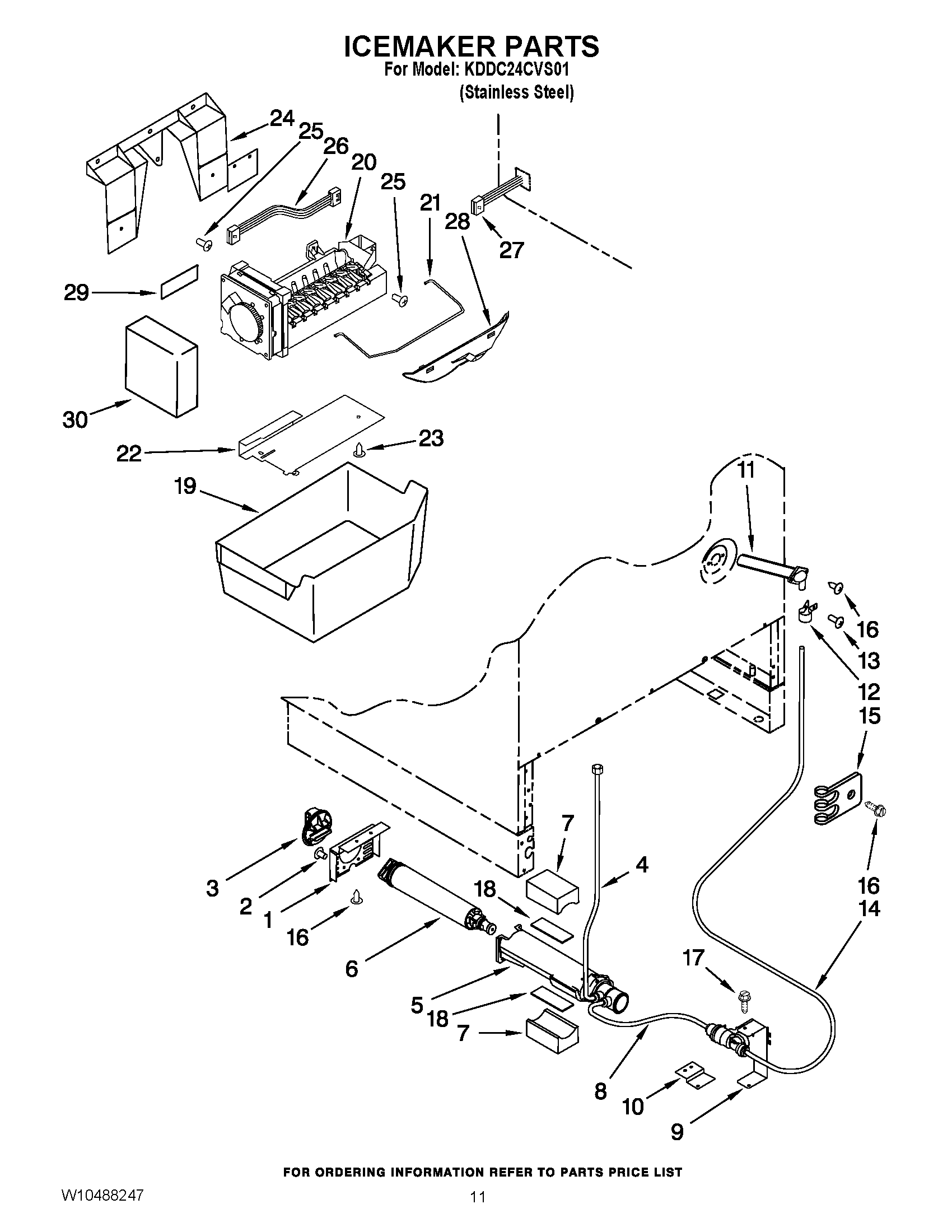

KDDC24CVS01 06 – ICEMAKER PARTS

Products

PositionProduct
1BRACKET, FILTER
2SCREW, SUPPORT
3WP2186494B Whirlpool Refrigerator Filter Cap
48201597 Whirlpool Inlet Water Fill Tube Kit Filter
5WP2225521 Whirlpool Water Filter Housing
6EDR6D1 Whirlpool EveryDrop® Ice and Water Refrigerator Filter 6 (Dark Bl
7W10281561 Whirlpool Refrigerator Block
8W10772928 Whirlpool Refrigerator Water Tube
9VALVE-INLT REFR
10W10281565 Whirlpool Refrigerator Bracket
11WP2196157 Whirlpool Fill Tube
12WP488878 Whirlpool Refrigerator Tube Clamp
13SCREW
14W10281586 Whirlpool Refrigerator Fitting
15TUBE CLAMP
16SCREW
17SCREW
18W10281589 Whirlpool Refrigerator Tape
19PAN-ICE
204317943 Whirlpool Refrigerator Ice Maker Assembly
21W10281546 Whirlpool Refrigerator Arm Shut
222256178 Whirlpool Shield Assembly
23Screw
24W10488628 Whirlpool Refrigerator Bracket
25SCREW
26HARNESS, DEFROST
27W10281551 Whirlpool Refrigerator Wire Harness
28W10281552 Whirlpool Refrigerator Extension
29W10281553 Whirlpool Refrigerator Shield
30WPW10289690 Whirlpool Ice Maker Cover
