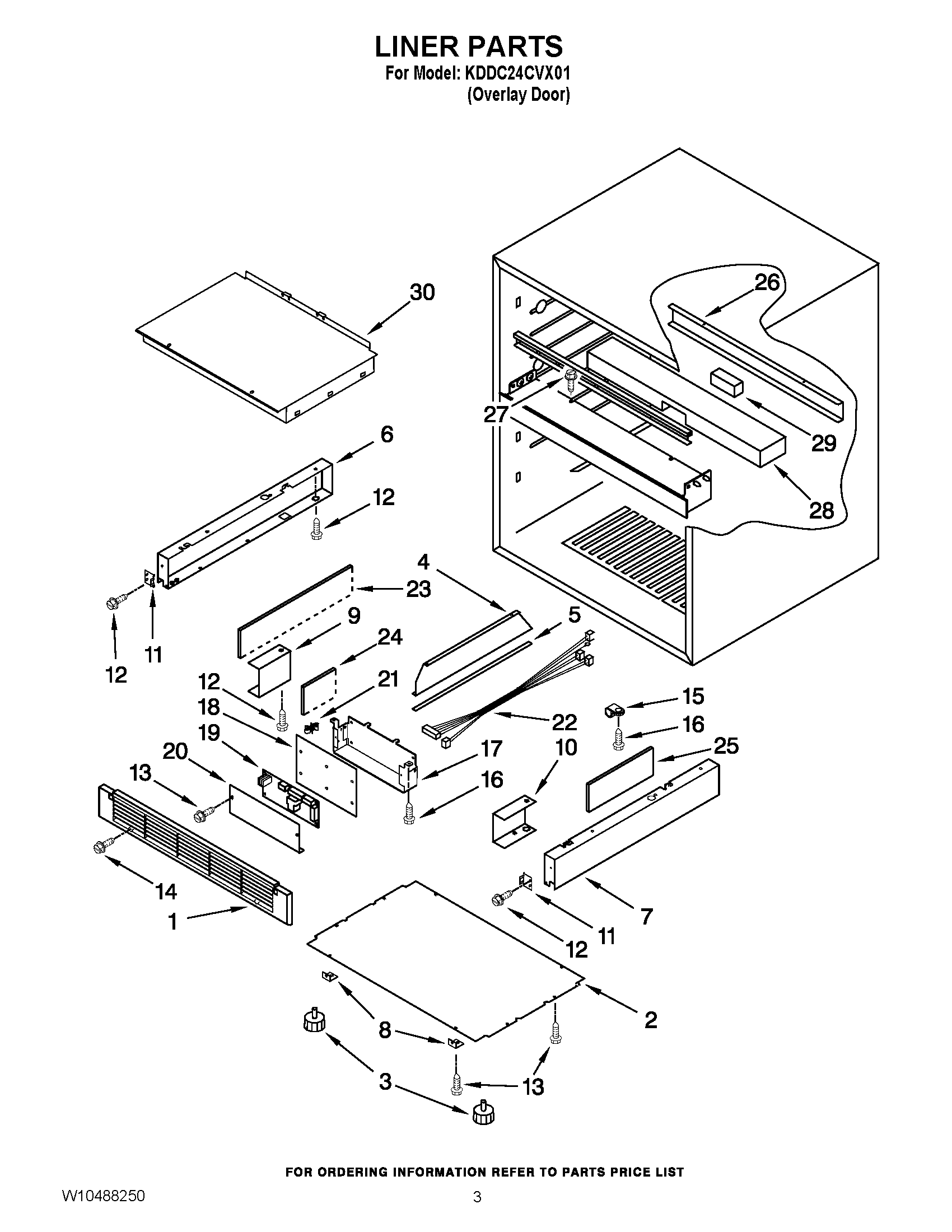

KDDC24CVX01 02 – LINER PARTSadmin2025-04-26T12:36:41+00:00KDDC24CVX01 02 – LINER PARTS ProductsPositionProduct1W10281494 Whirlpool Refrigerator Grille2Plate, Bottom3W11106296 Whirlpool Refrigerator Leveler4AUXILIARY PLATE54344823 Whirlpool Refrigerator Seal6Frame, Side (Left Side)7Frame, Side (Right Side)84344771 Whirlpool Refrigerator Clip94344820 Whirlpool Refrigerator Support104344821 Whirlpool Refrigerator Support11W10204640 Whirlpool Refrigerator Clip12Screw134344826 Whirlpool Refrigerator Screw14W10837731 Whirlpool Screw Assembly157111P002-60 Whirlpool Clamp16SCREW17Main PCB Box18PCB Box Film19MAIN PCB20PCB Box Cover21W10204659 Whirlpool Refrigerator Spacer22W10281498 Whirlpool Refrigerator Wire Harness23Acoustic Foam B24Acoustic Foam C25Acoustic Foam A26Mullion Cover27SCREW28Mullion Insulation29W10205072 Whirlpool Refrigerator Insulation30MULLION BODY ASSY
