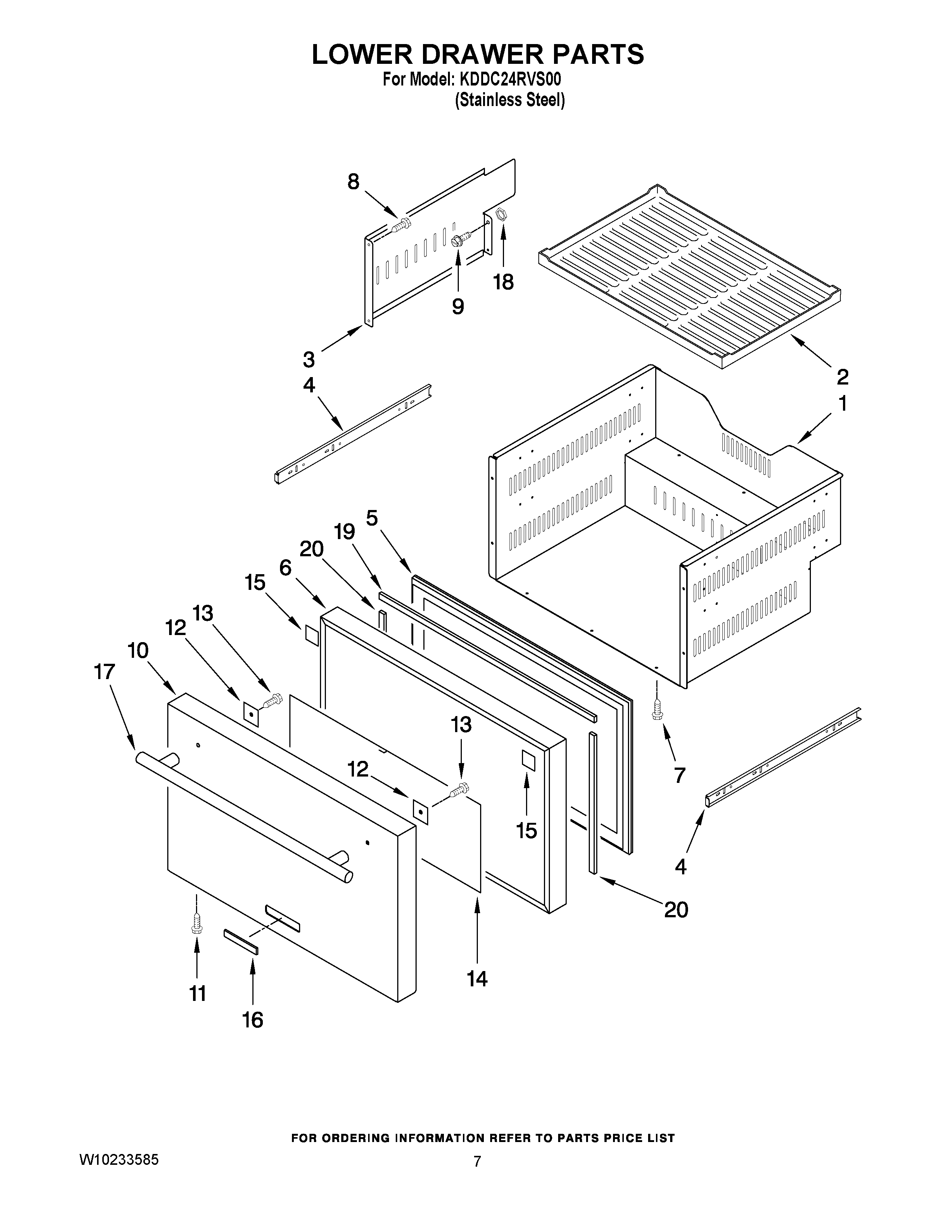

KDDC24RVS00 04 – LOWER DRAWER PARTS

Products

PositionProduct
1Drawer Box Assy.
2Bottom Mat
3Drawer Partition
4WPW10233777 Whirlpool Refrigerator Slide
5WPW10204700 Whirlpool Refrigerator Gasket
6Formed Door Assy
7W10204808 Whirlpool Refrigerator Screw
8SCREW
9W10204810 Whirlpool Screw
10Top Wrap
11W10837731 Whirlpool Screw Assembly
12Plate
13W10859467 Whirlpool Refrigerator Screw
14W10204867 Whirlpool Front Drawer
15W10204868 Whirlpool Front Drawer
16NAMEPLATE
17Door Handle
18W10204920 Whirlpool Refrigerator Nut
19W10204889 Whirlpool Refrigerator Gasket
20W10204897 Whirlpool Refrigerator Gasket
