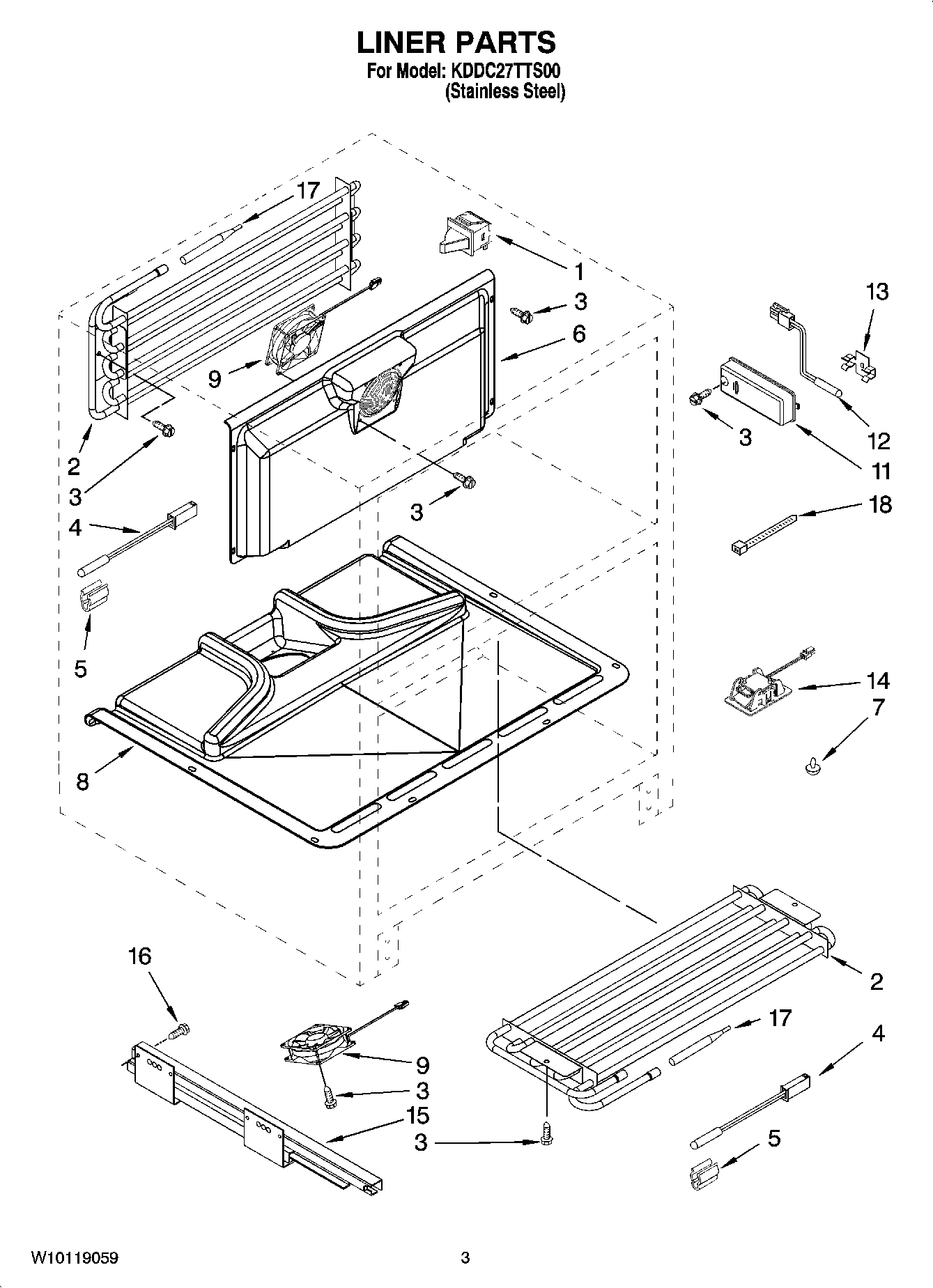

KDDC27TTS00 02 – LINER PARTS

KDDC27TTS00 02 – LINER PARTS

Written by

in

KDDC27TTS00 02 – LINER PARTS

Products

PositionProduct
1Switch, Rocker (2)
2Evaporator (2)
3WP489478 Whirlpool Refrigerator Screw
4Thermistor (Evaporator)
5CLIP
6Cover, Evaporator (Upper)
7WP3400924 Whirlpool Dishwasher Retainer
8Cover, Evaporator (Lower)
9Evaporator Fan
111116793 Whirlpool Refrigerator Cover
12WP2188820 Whirlpool Refrigerator Thermistor
13Clip, Thermistor
14Light Assembly (2)
15Slide, Drawer (Left (2))
15Slide, Drawer (Right (2))
168534081 Whirlpool Screw Assembly
17Tube, Capillary to Evaporator
18WPW10339879 Whirlpool Wire Tie
